ABS Schematics

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

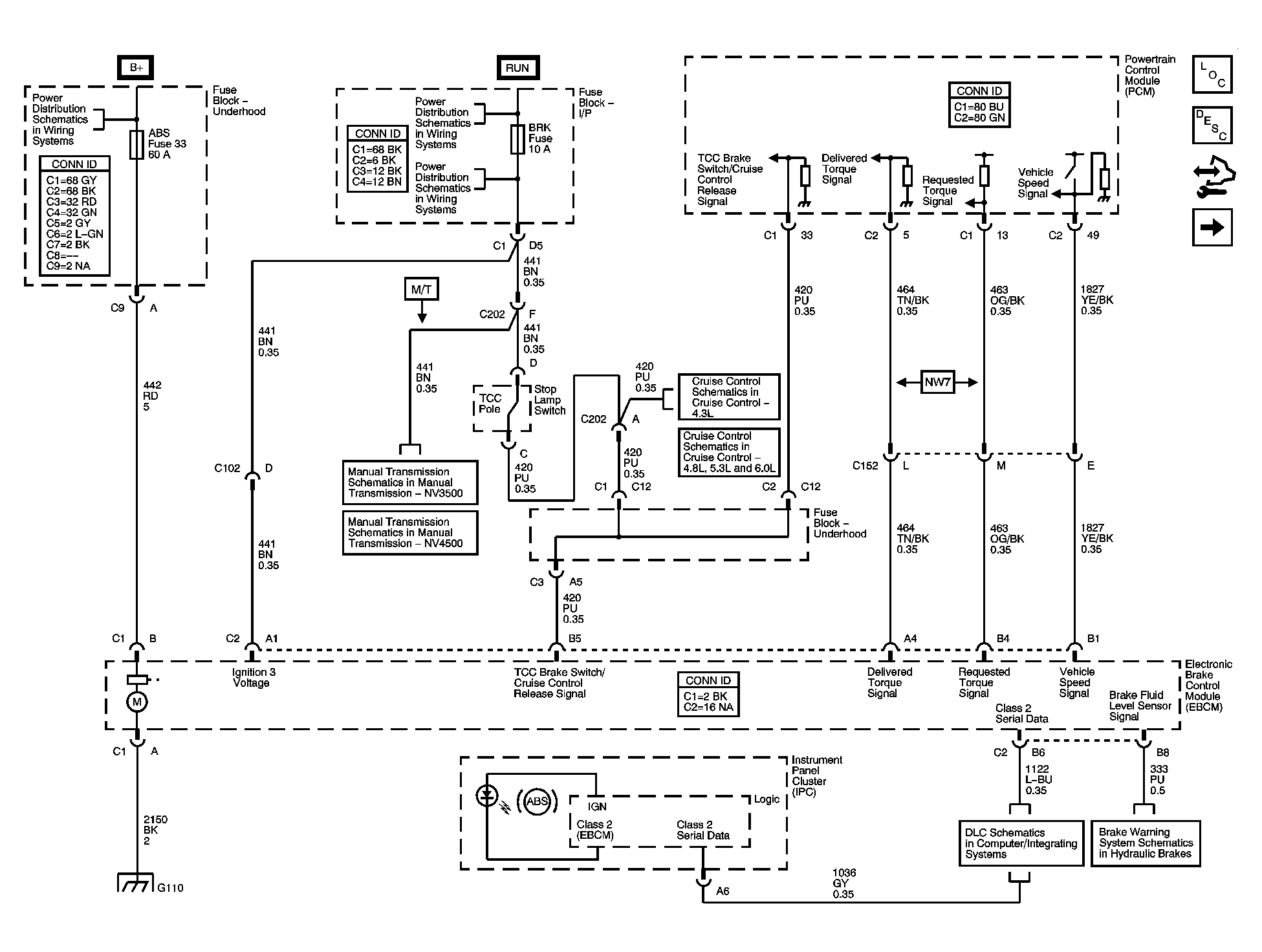

Fig 1: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - 8600 GVW or Less w/Rear Disc Brakes

Courtesy of GENERAL MOTORS CORP.

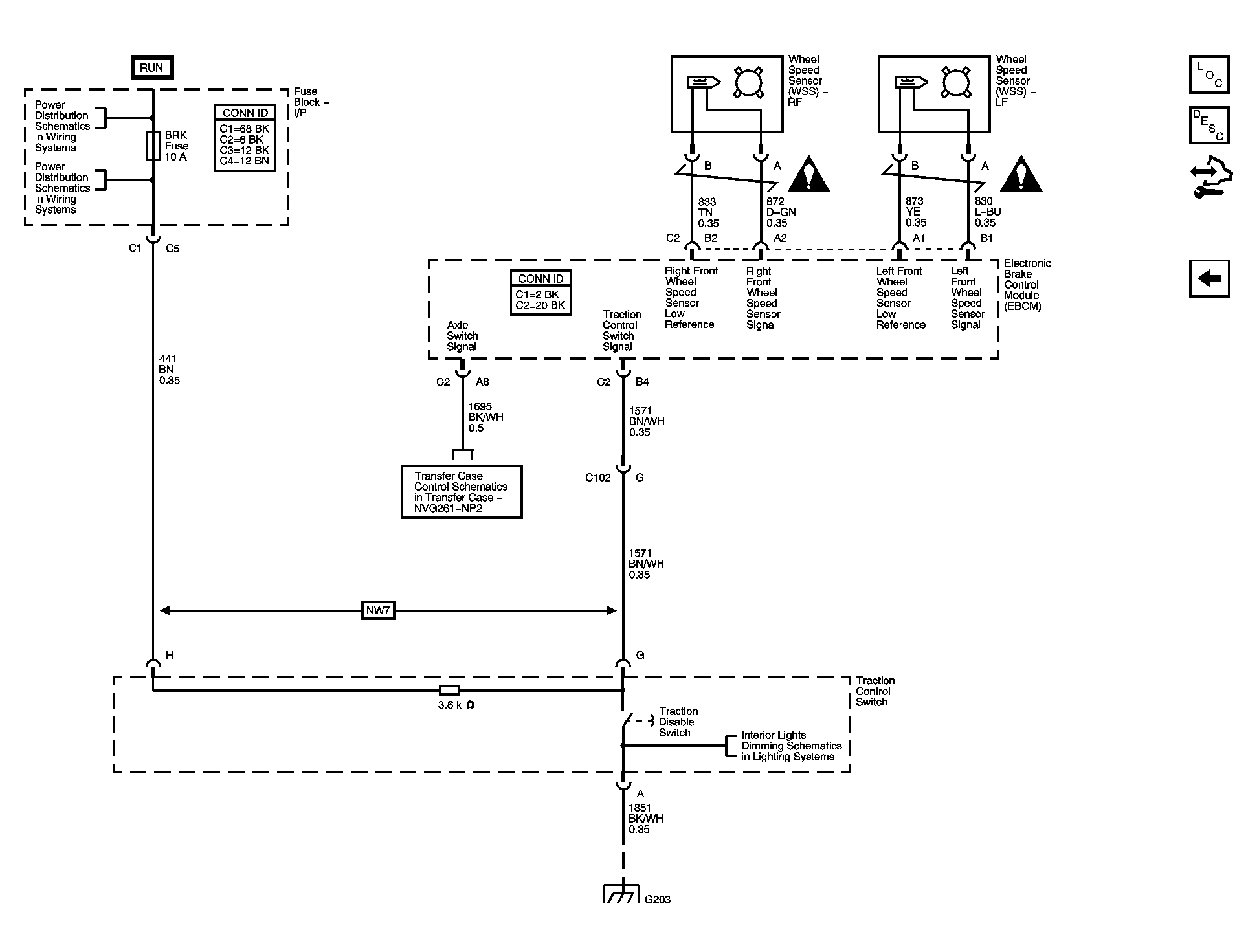

Fig 2: Traction Control Switch and Wheel Speed Sensors - 8600 GVW or Less w/Rear Disc Brakes

Courtesy of GENERAL MOTORS CORP.

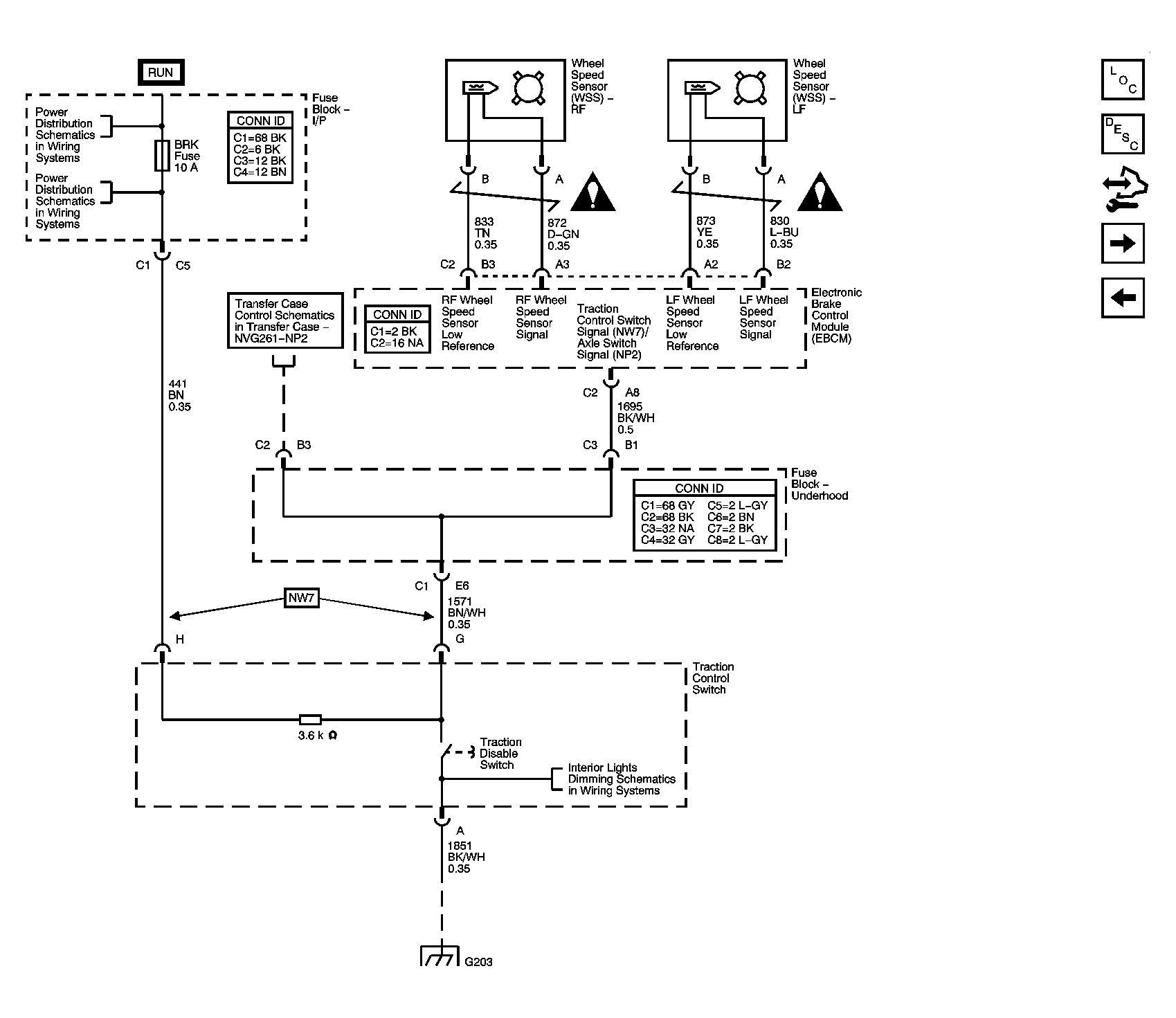

Fig 3: Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - Greater than 8600 GVW or w/Rear Drum Brakes

Courtesy of GENERAL MOTORS CORP.

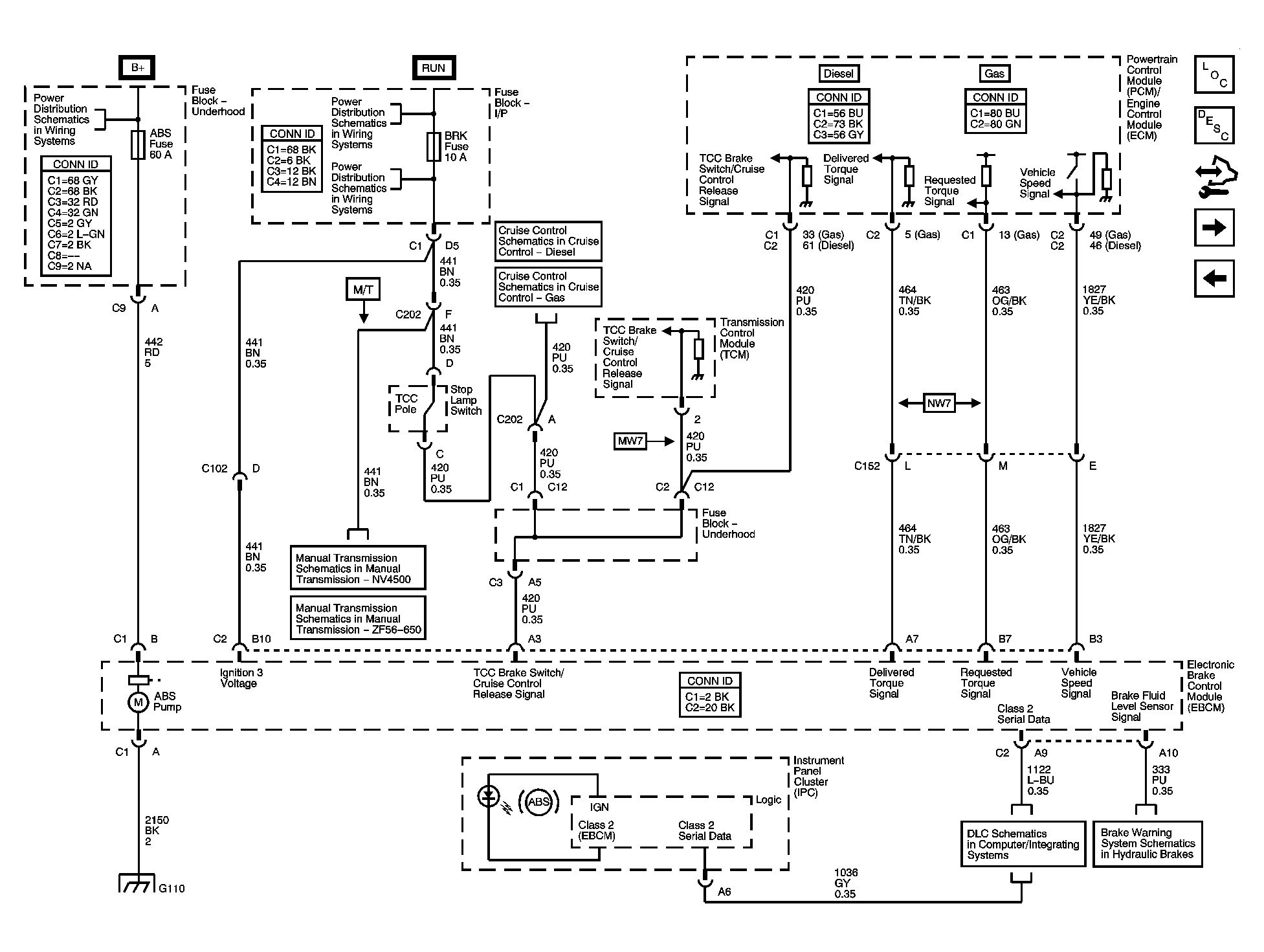

Fig 4: Traction Control Switch and Wheel Speed Sensors - Greater than 8600 GVW or w/Rear Drum Brakes

Courtesy of GENERAL MOTORS CORP.
