Power Steering System Schematics

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

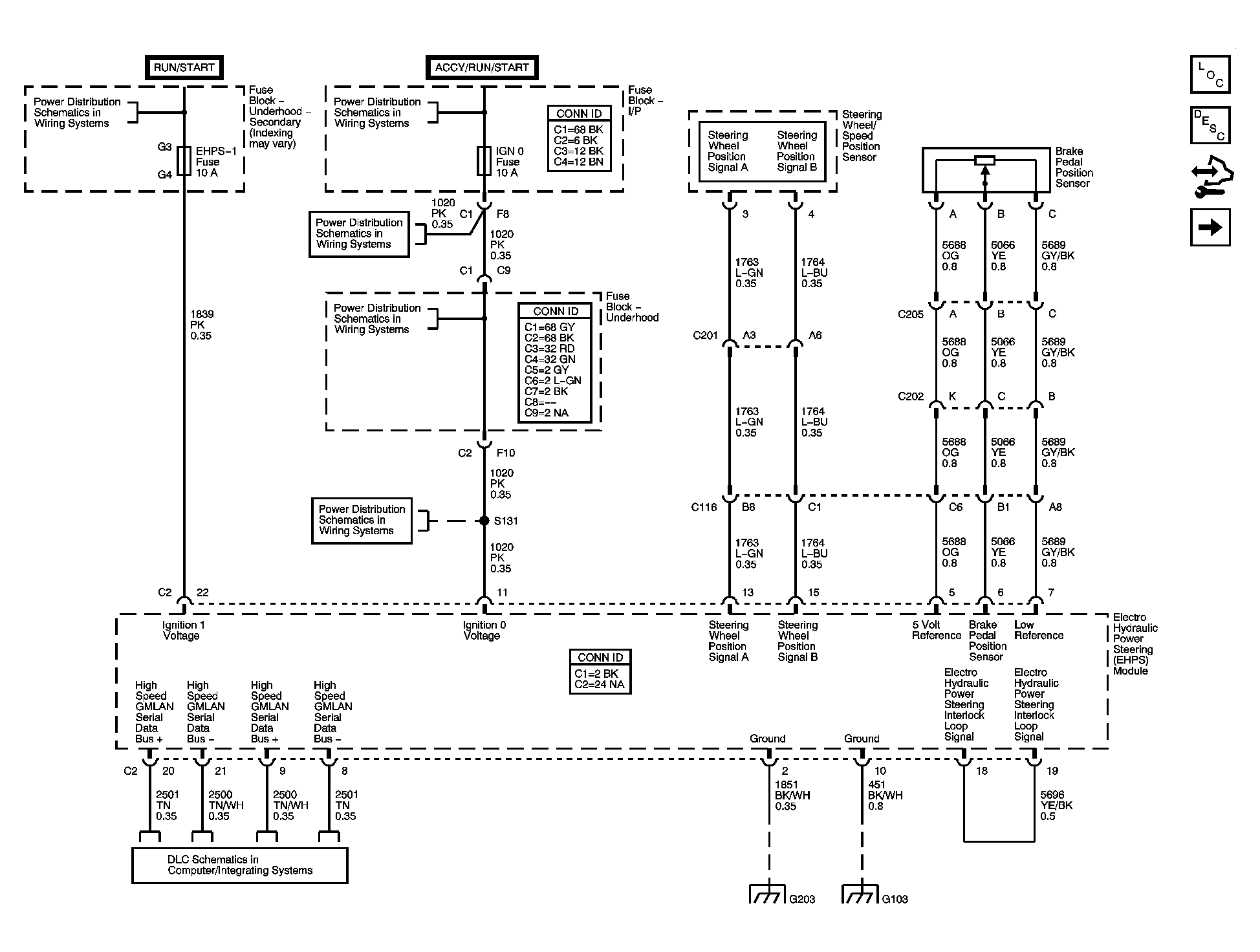

Fig 1: Power, Ground, Serial Data, Steering Wheel/Speed and Brake Pedal Position Sensor
GM1570418Courtesy of GENERAL MOTORS CORP.

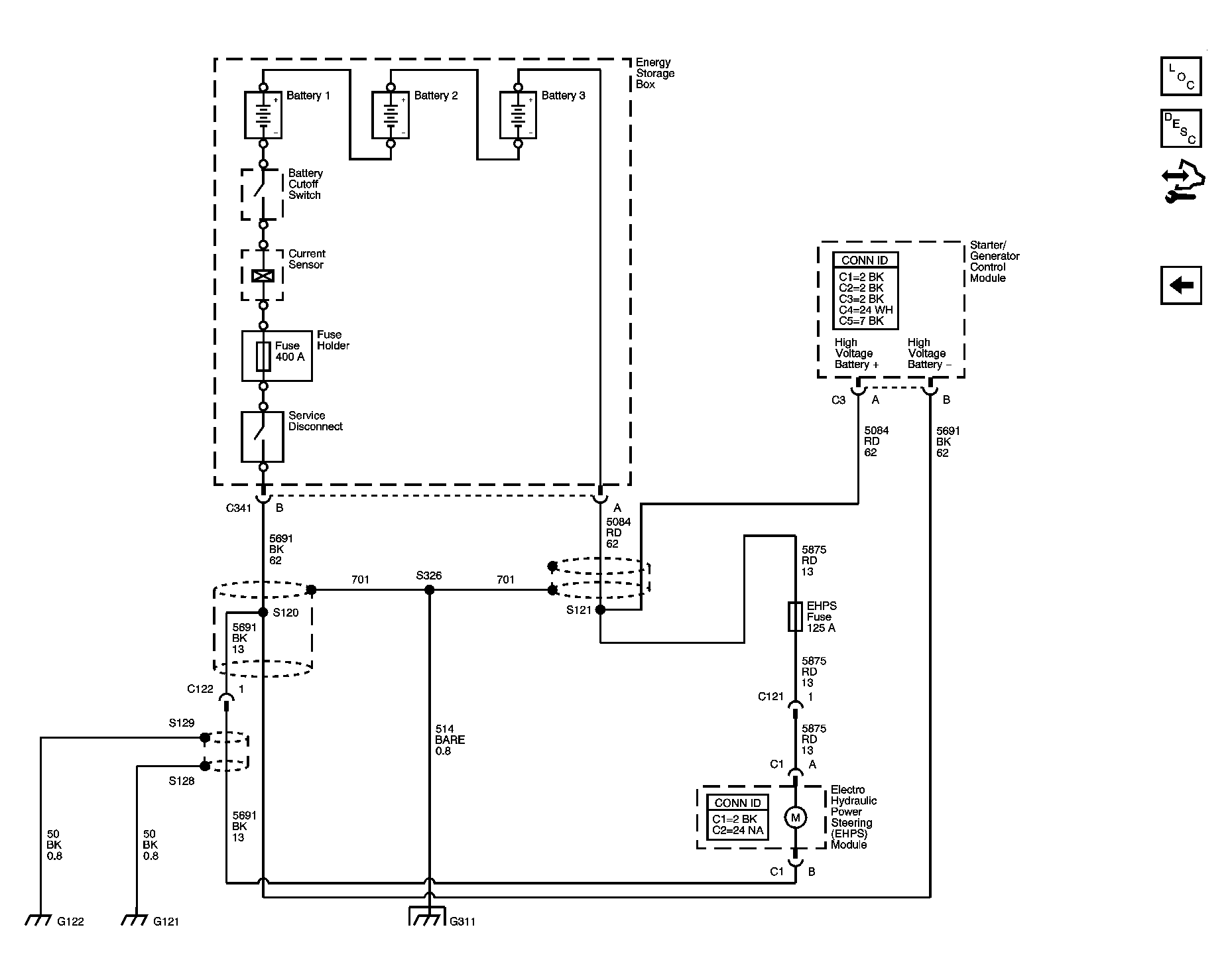

Fig 2: Hydraulic Motor Power and Ground
GM1570419Courtesy of GENERAL MOTORS CORP.
