Power Roof Systems Component Views
WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

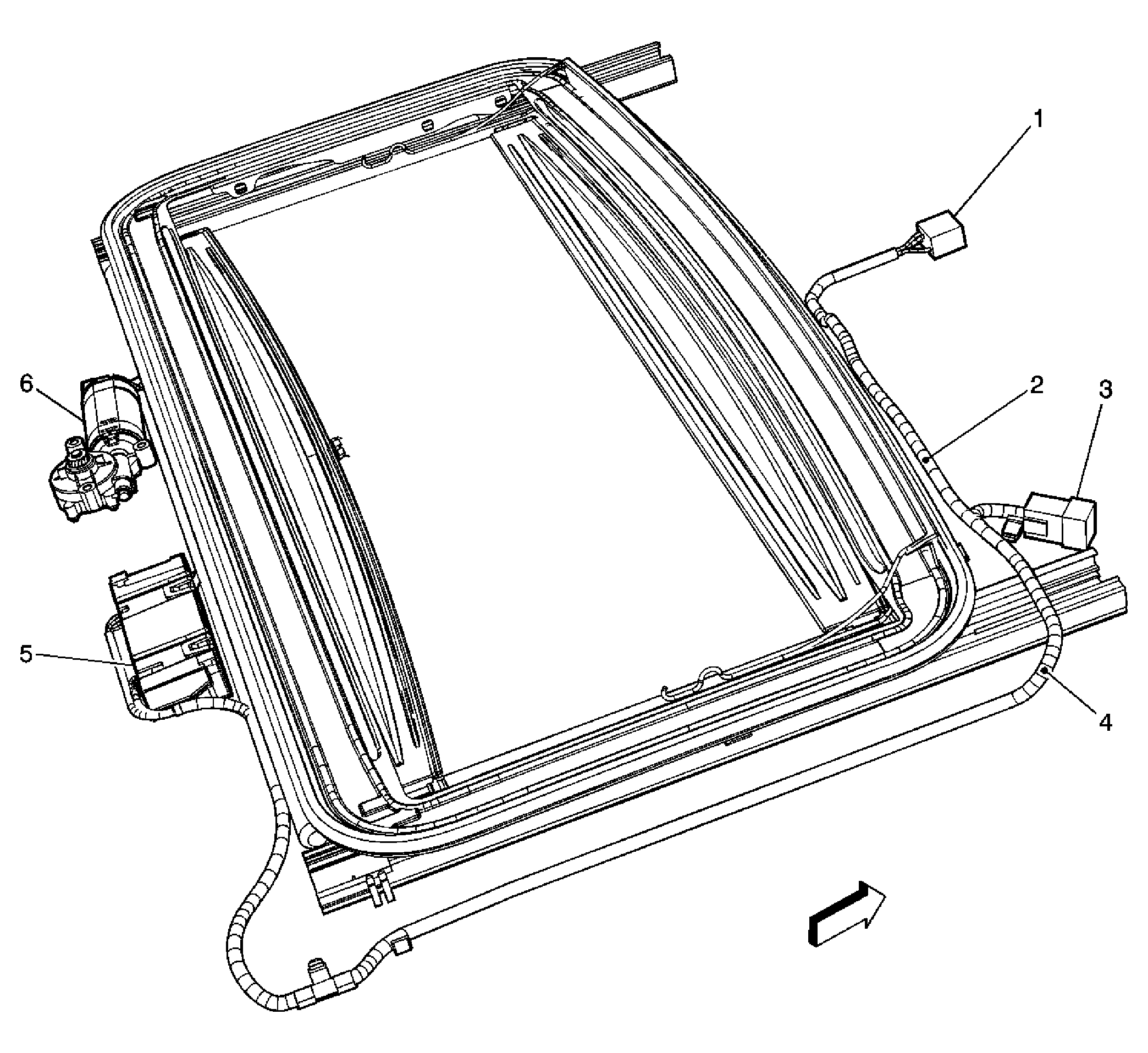

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Sunroof Switch |
| 2 | S352 |
| 3 | C353 |
| 4 | S351 |
| 5 | Sunroof Control Module |
| 6 | Sunroof Motor |
