Power Roof Systems Connector End Views

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Sunroof Control Module C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metro Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	3840	Battery Positive Voltage
B	D-GN	127	Sunroof Motor Open Control
C	L-GN	129	Sunroof Motor Close Control
D	BK	1050	Ground

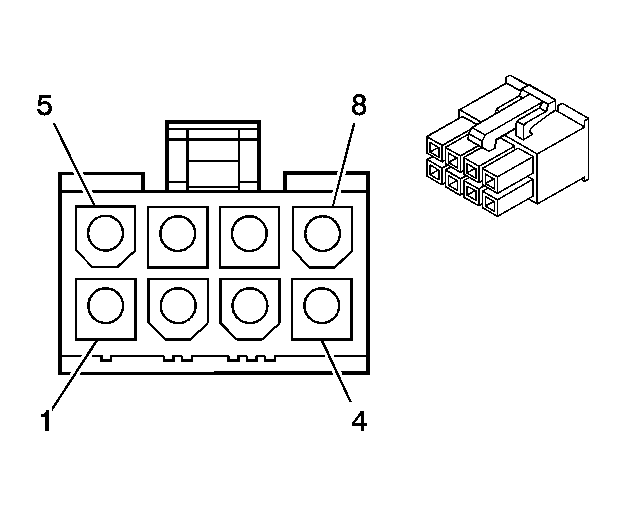

Sunroof Control Module C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		39-01-2080 8-Way F Mini-Fix Jr. Molex (NA)
Pin	Wire Color	Circuit No.	Function
1	D-GN	5814	Low Reference
2	-	-	Not Used
3	YE/BK	5034	Hall Effect Sensor 1 Signal
4	TN	5124	Hall Effect Sensor 2 Signal
5	GY	-	Manufacturing Mode
6	D-BU	1353	RAP Supply Voltage
7	OG	110	Sunroof Switch Close Signal
8	BN	100	Sunroof Switch Open Signal

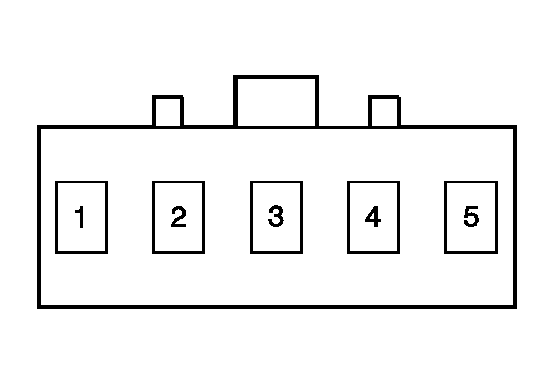

Sunroof Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		13799217 5-Way M Tyco/AMP (BK)
Pin	Wire Color	Circuit No.	Function
1	D-GN	127	Sunroof Motor Open Control
2	YE/BK	5034	Hall 2 Sensor
3	D-GN	5814	Low Reference
4	TN	5124	Hall 1 Sensor
5	L-GN	129	Sunroof Motor Close Control

Sunroof Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064998 8-Way F Metri-Pack 280 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	110	Sunroof Switch Close Signal
B	BN/WH	230	Instrument Panel Lamps Dimming Control
C	BK	1050	Ground
D	-	-	Not Used
E	BN	100	Sunroof Switch Open Signal
F	D-BU	1353	RAP Supply Voltage
G-H	-	-	Not Used
