Sunroof Control Module Replacement

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the headliner. Refer to Headliner Replacement .
1	Sunroof Control Module Tip: Disconnect the electrical plugs. Located in the front of the control module is a push in tab to release it the control module.

Callout

Component Name

Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the headliner. Refer to Headliner Replacement .

Sunroof Control Module
Tip:

Disconnect the electrical plugs.
Located in the front of the control module is a push in tab to release it the control module.

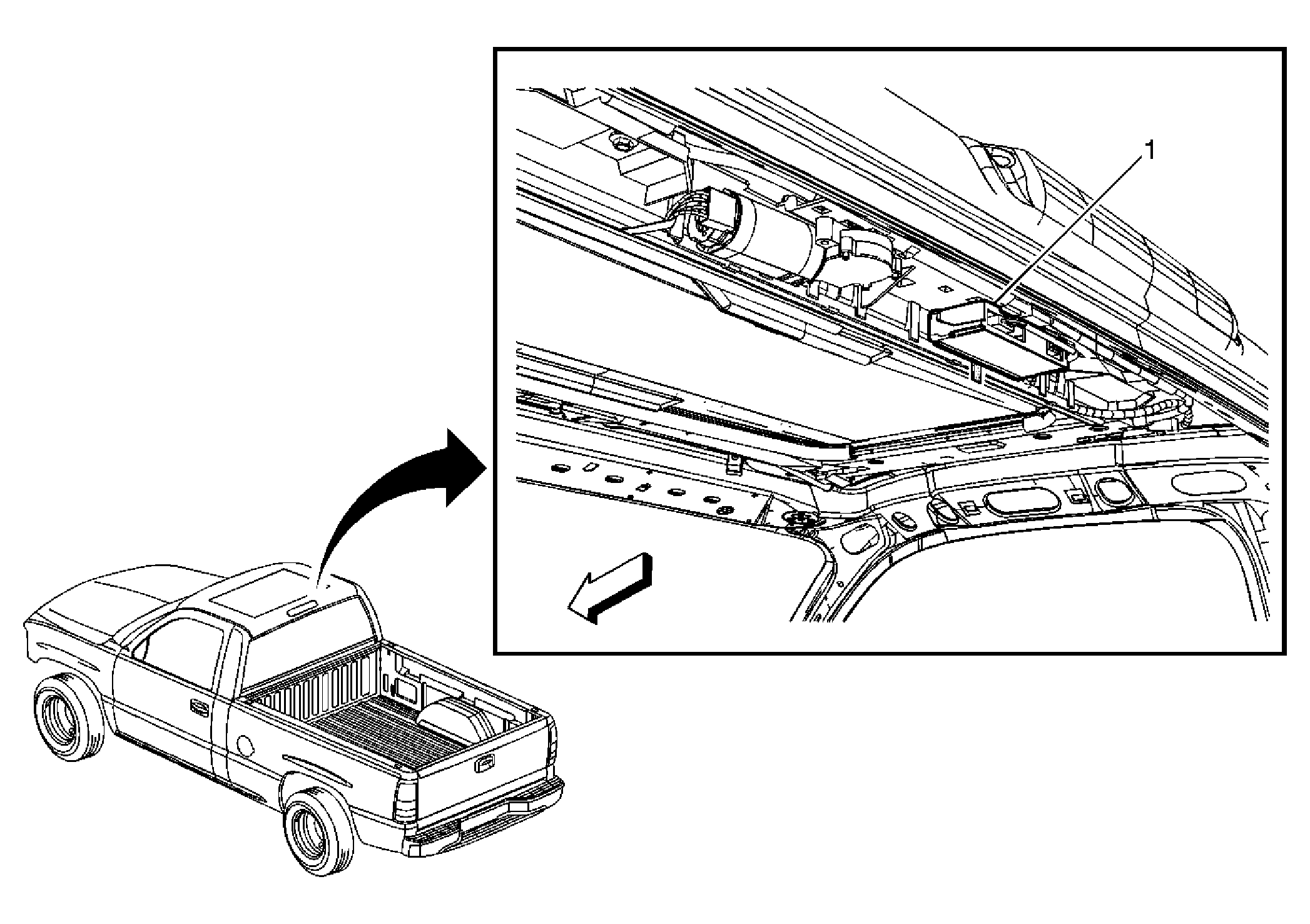

Fig 1: Locating Sunroof Control Module

Courtesy of GENERAL MOTORS CORP.
