Sunroof Module Assembly Replacement

WARNING: This page is about a different car, the 2006 GMC Sierra and 2006 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
NOTE: Refer to Fastener Notice . Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the headliner. Refer to Headliner Replacement . Remove the front sunroof drain hoses. Refer to Sunroof Drain Hose Replacement - Front . Remove the rear sunroof drain hoses. Refer to Sunroof Drain Hose Replacement - Rear .
1	Sunroof Module Nuts (Qty: 8) Tighten: 9 N.m (80 lb in)
2	Sunroof Module Tip: Transfer the following parts to the new module. Sunroof motor/actuator Sunshade Wiring Harness Air deflector Sunroof rear gutter house drain

Callout

Component Name

NOTE: Refer to Fastener Notice .

Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the headliner. Refer to Headliner Replacement .
Remove the front sunroof drain hoses. Refer to Sunroof Drain Hose Replacement - Front .
Remove the rear sunroof drain hoses. Refer to Sunroof Drain Hose Replacement - Rear .

Sunroof Module Nuts (Qty: 8)

Tighten: 9 N.m (80 lb in)

Sunroof Module
Tip: Transfer the following parts to the new module.

Sunroof motor/actuator
Sunshade
Wiring Harness
Air deflector
Sunroof rear gutter house drain

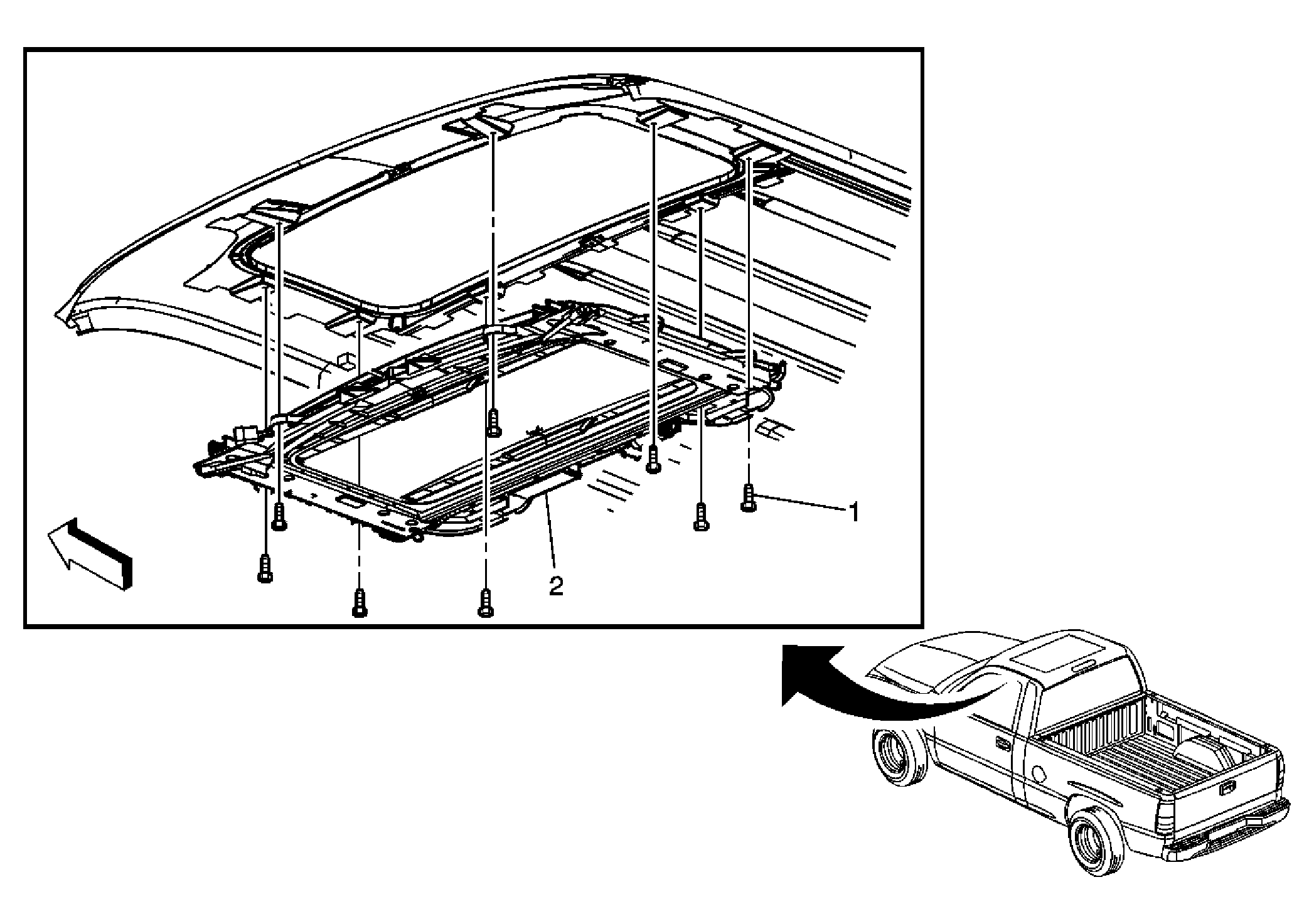

Fig 1: Removing Sunroof Module Assembly

Courtesy of GENERAL MOTORS CORP.
