Front Toe Adjustment

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

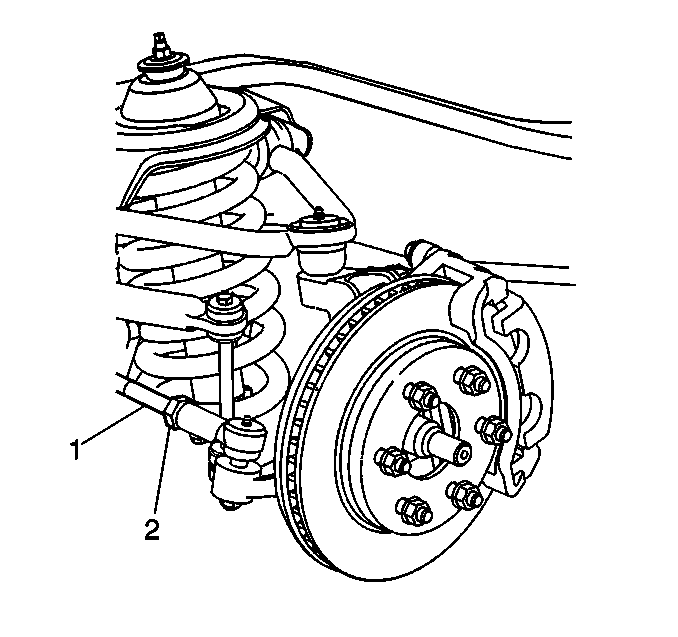

Fig 1: Adjusting Front Toe

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the tie rod (2).
Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to FASTENER NOTICE .

Tighten the jam nut on the tie rod.
Tighten: Tighten the tie rod jam to 68 N.m (50 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
