Windshield Washer Fluid Pump

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

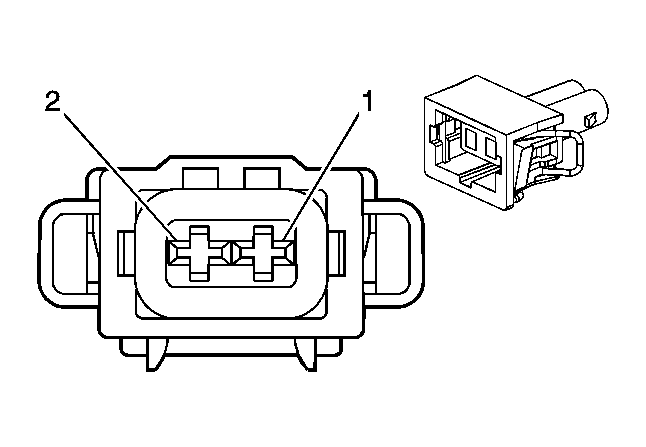

Fig 1: Windshield Washer Fluid Pump Connector End Views
GM1283118Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Pump Connector Parts Information

Connector Part Information
  • OEM: 15305325
  • Service: See Catalog
  • Description: 2-Way F Mini Timer (BK)
Windshield Washer Fluid Pump Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 D-GN 392 Rear Window Washer Pump Control
2 RD 228 Windshield Washer Pump Control
