Wiper Motor - Rear

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

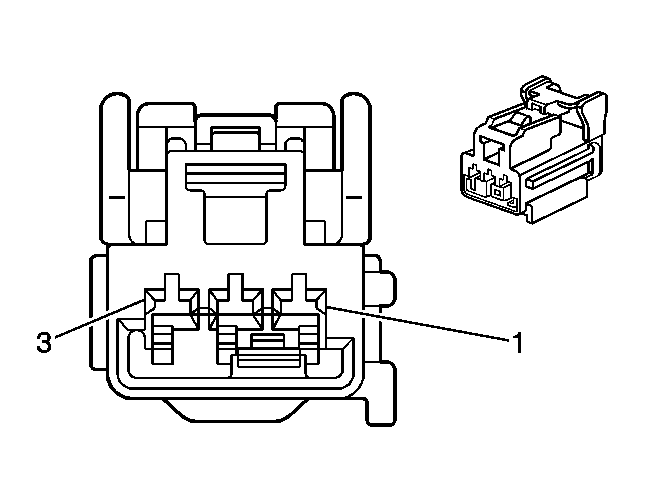

Fig 1: Wiper Motor - Rear Connector End Views

Courtesy of GENERAL MOTORS CORP.

Wiper Motor - Rear Connector Parts Information

Connector Part Information

OEM: 7283-5539-40
Service: See Catalog
Description: 3-Way F (L-GY)

Wiper Motor - Rear Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	WH	393	Rear Window Wiper Motor Control
2	BK	650	Ground
3	YE	143	Accessory Voltage
