Wiper Motor Module Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

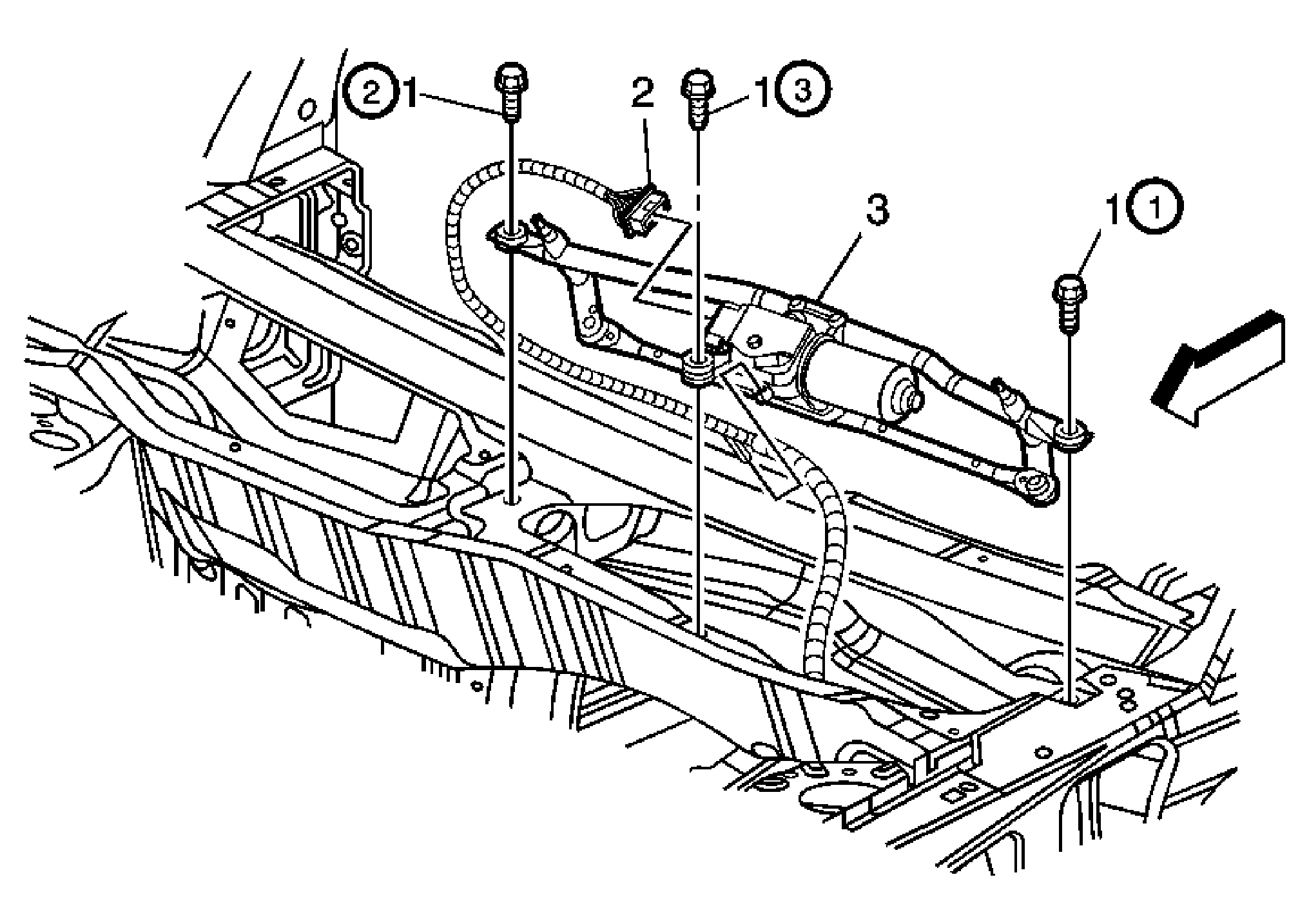

Fig 1: Windshield Wiper System And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm Replacement . Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper Module Bolt NOTE: Refer to Fastener Notice . Tip: Tighten bolts in sequence as shown upon installation. Tighten: 9 N.m (80 lb in)
2	Windshield Wiper Motor Electrical Connector Tip: Connect the electrical connector to the wiper motor and the harness rose bud to the wiper module frame prior to installing the module assembly back into the plenum.
3	Windshield Washer System Module Assembly Raise the rearward edge of the windshield washer module assembly out of the plenum panel. Upon installation of the windshield washer module, turn the module 180 degrees, insert the transmission arms into the plenum then align the grommets on the module to the bolt holes. Tighten the bolts in sequence as shown.
