Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

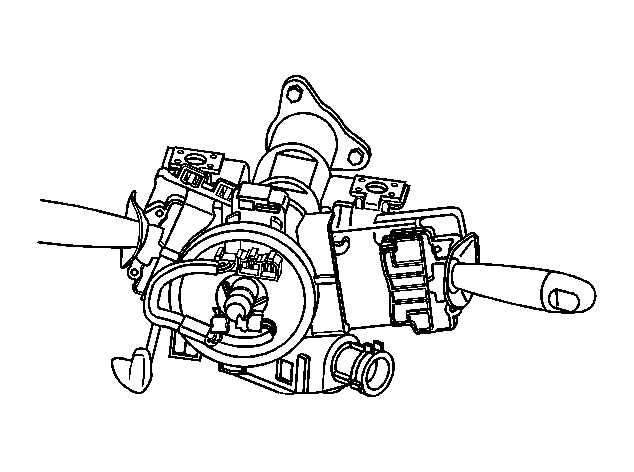

    Fig 1: View Of Wipers/Washer Switch
    GM1644067Courtesy of GENERAL MOTORS CORP.
  1. Install the wipers/washer switch to the steering column.

    Ensure the locking tabs are fully engaged.

  2. Connect the wipers/washer switch harness connector.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
