Vehicle Access Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

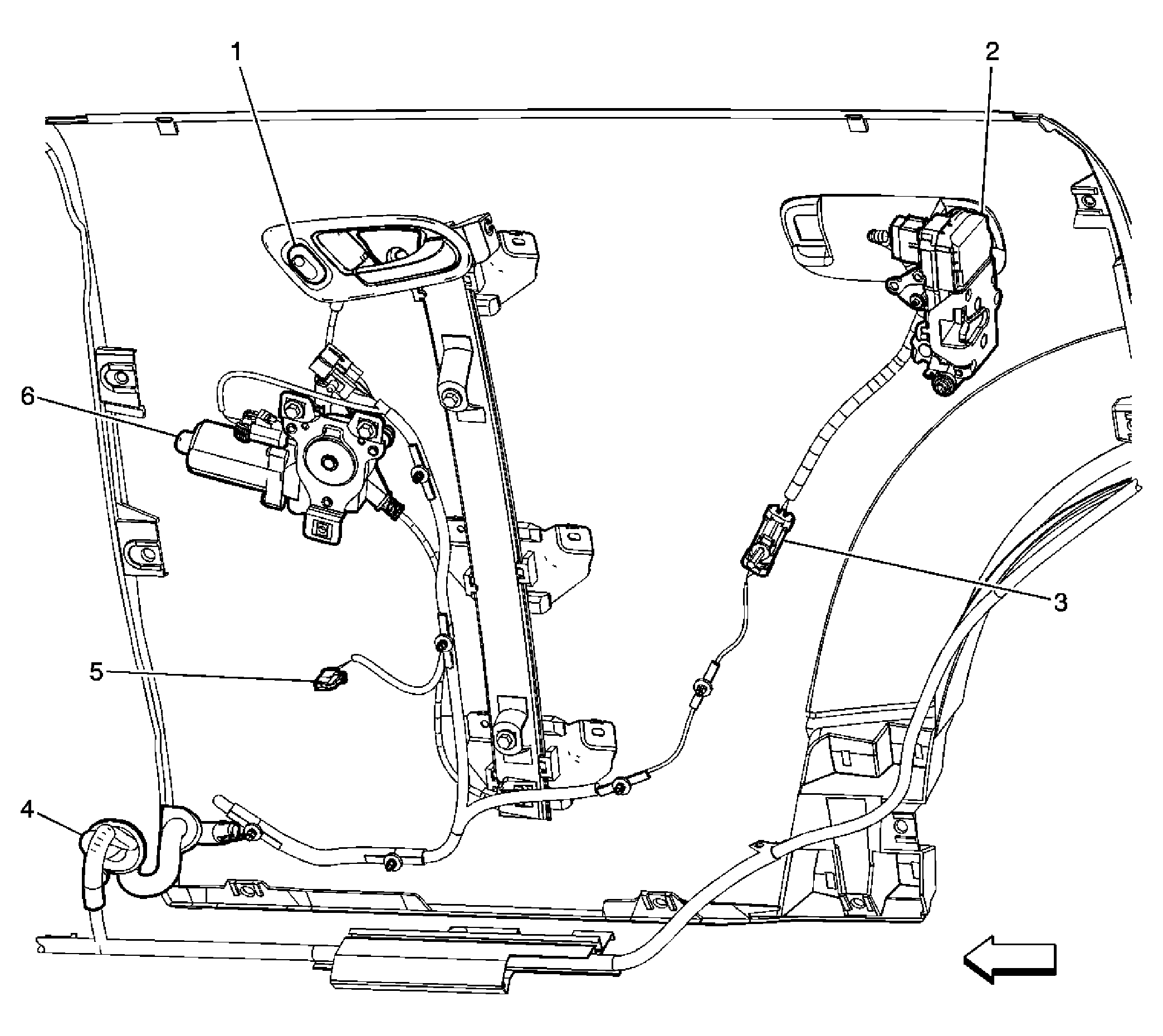

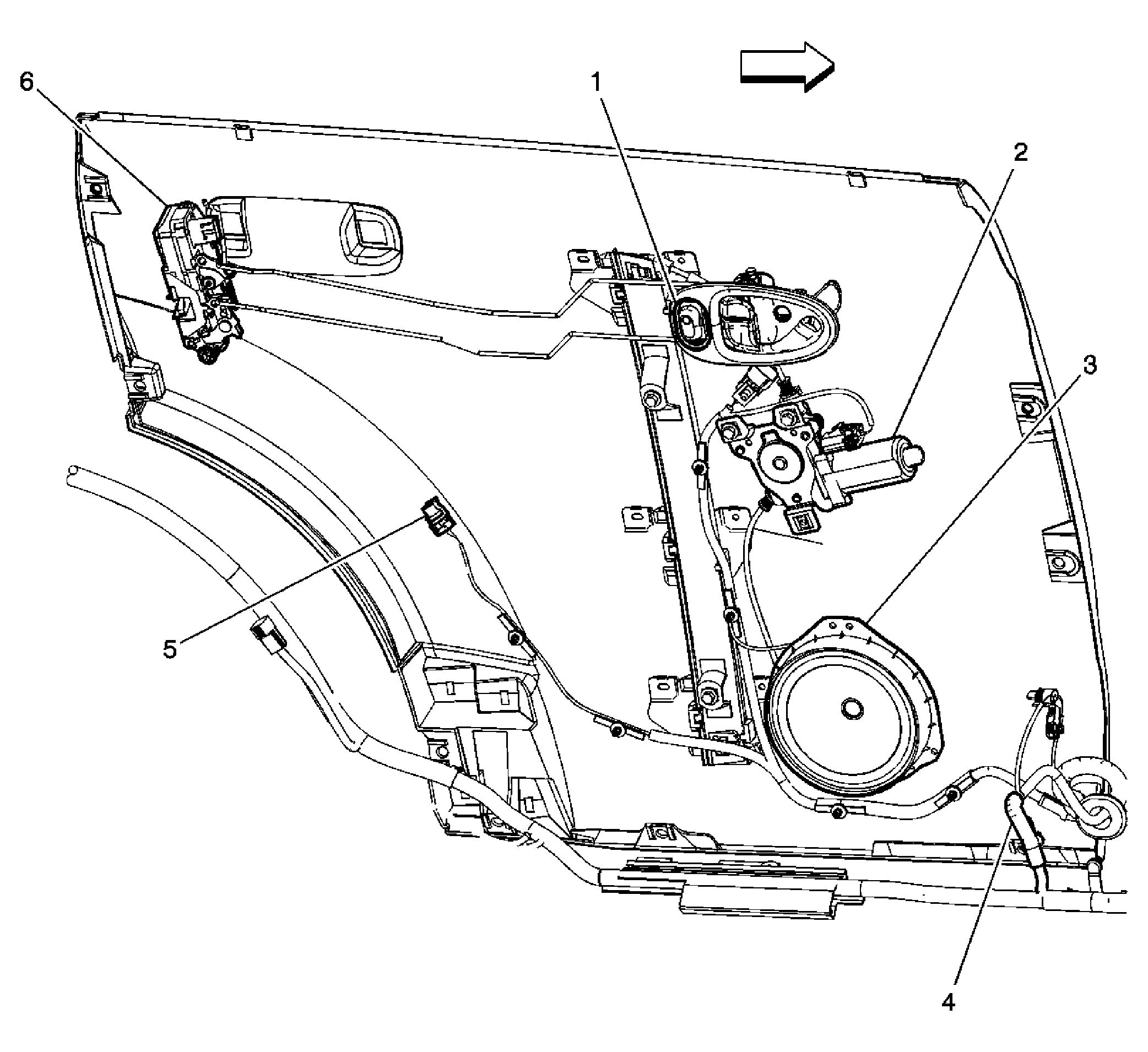

| Callout | Component Name |
|---|---|
| 1 | Door Lock Switch - Driver |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Speaker - LF (Tweeter) (UW6/WBM) |
| 4 | Window Motor - LF |
| 5 | S500 |
| 6 | S501 |
| 7 | Body Harness |
| 8 | Speaker - LF |
| 9 | Door Latch - Driver |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Lock Switch - Front Passenger |
| 3 | Door Latch - Front Passenger |
| 4 | Speaker - LF |
| 5 | Body Harness |
| 6 | Window Motor - Front Passenger |
| 7 | Speaker - LF (Tweeter) (UW6/WBM) |
| Callout | Component Name |
|---|---|
| 1 | Window Switch - LR |
| 2 | Window Motor - LR |
| 3 | Speaker - LR |
| 4 | Body Harness |
| 5 | C700 |
| 6 | Door Latch - LR |
| Callout | Component Name |
|---|---|
| 1 | Window Switch - RR |
| 2 | Door Latch - RR |
| 3 | C800 |
| 4 | Body Harness |
| 5 | Speaker - RR Connector |
| 6 | Window Motor - RR |

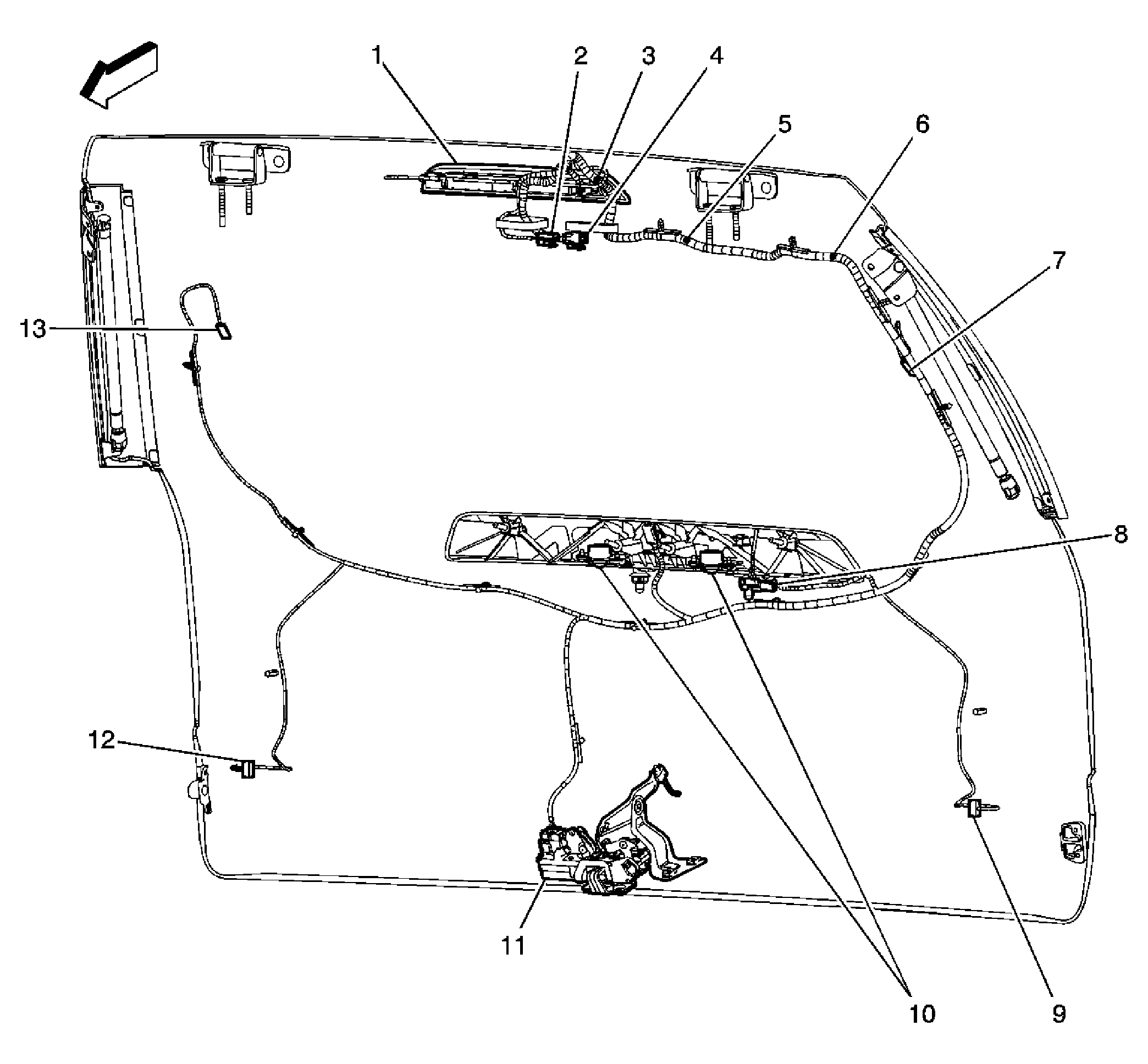

| Callout | Component Name |
|---|---|
| 1 | Center High Mounted Stop Lamp (CHMSL) |
| 2 | C403 |
| 3 | S402 |
| 4 | C402 |
| 5 | S400 |
| 6 | S407 |
| 7 | Rear Defogger Grid Connector |
| 8 | C405 |
| 9 | Liftgate Lamp - Left |
| 10 | License Lamps |
| 11 | Liftgate Latch |
| 12 | Liftgate Lamp - Right |
| 13 | Rear Defogger Grid Connector |
