Door Latch - Driver

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

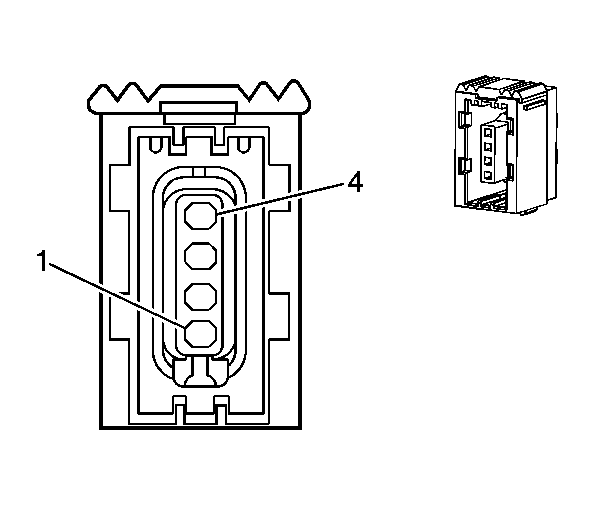

Fig 1: Door Latch - Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Door Latch - Driver Connector Parts Information

Connector Part Information

OEM: 6-1355678-1
Service: See Catalog
Description: 4-Way F Housing (BK)

Door Latch - Driver Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	TN/WH	694	Driver Door Lock Actuator Unlock Control
3	GY	295	Door Lock Actuator Lock Control
4	-	-	Not Used
