Door Lock Switch - Front Passenger

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

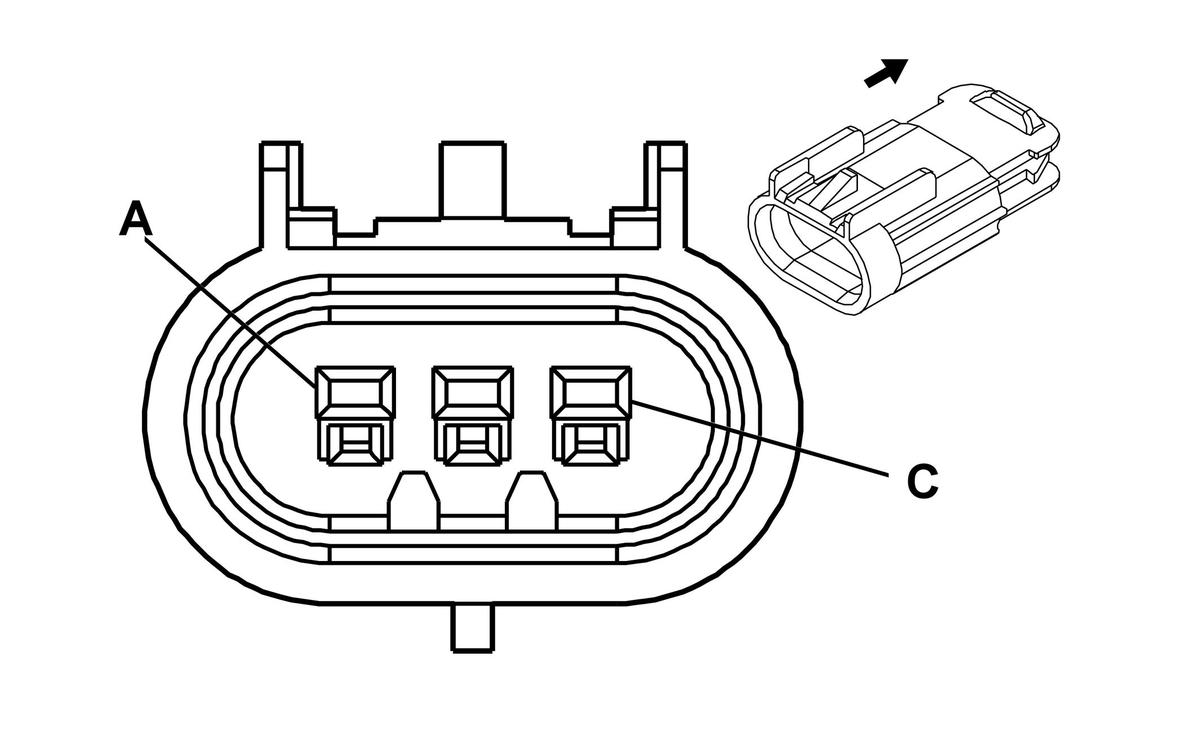

Fig 1: Door Lock Switch - Front Passenger Connector End View
GM632353Courtesy of GENERAL MOTORS CORP.
Door Lock Switch - Front Passenger Connector Parts Information

Connector Part Information
  • OEM: 15326813
  • Service: See Catalog
  • Description: 3-Way M 150 Series Sealed (BK)
Door Lock Switch - Front Passenger Connector Terminal Identification

Pin Wire Color Circuit No. Function
A OG 440 Battery Positive Voltage
B RD/BK 780 Driver Door Lock Switch Lock Signal
C OG/BK 781 Driver Door Lock Switch Unlock Signal
