Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

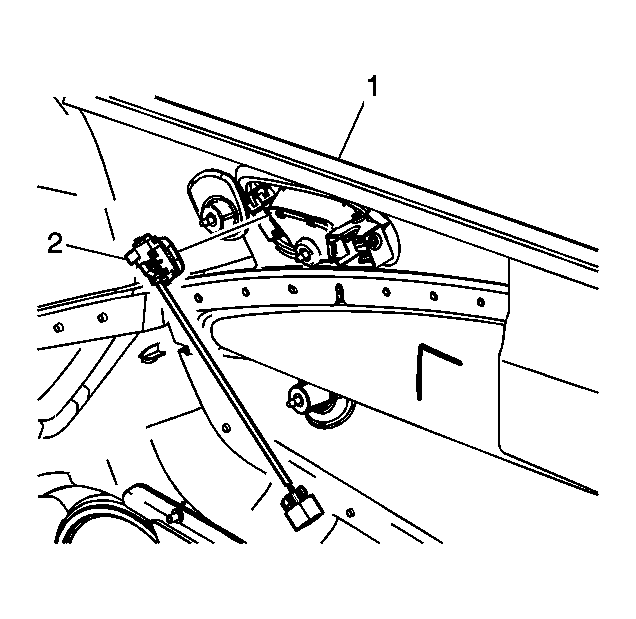

    Fig 1: View Of Front Side Trim Panel And Components
    GM1748804Courtesy of GENERAL MOTORS CORP.
  1. Position the switch (2) on the door handle assembly and push inward to seat the switch.
  2. Connect the electrical connector.
  3. Install the door trim panel (1). Refer to Front Side Door Trim Panel Replacement .
