Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

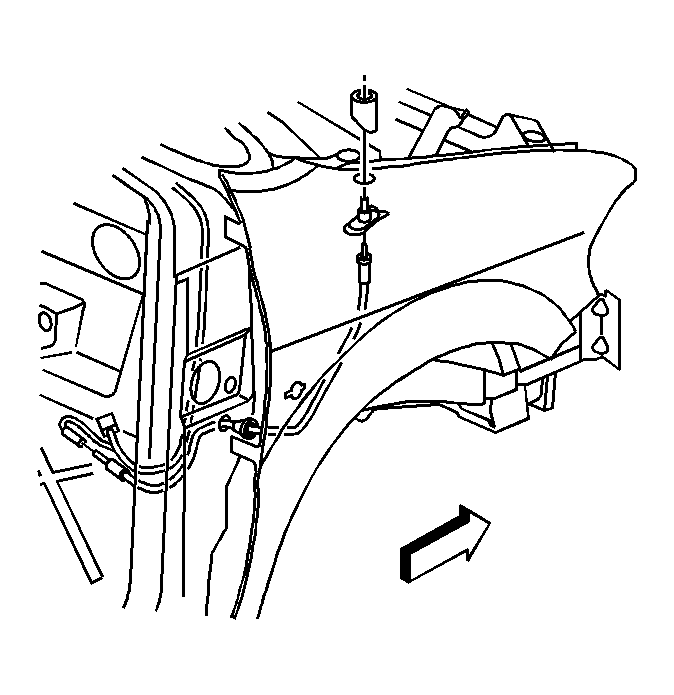

    Fig 1: Locating Antenna Extension Lead
    GM802334Courtesy of GENERAL MOTORS CORP.
  1. Connect the extension cable to the antenna. Refer to Fixed Antenna Replacement .
    2. Fig 2: Locating Electrical/Audio And Antenna Cable Connectors
    GM318001Courtesy of GENERAL MOTORS CORP.
  2. Connect the extension cable to the radio.
  3. Install the instrument panel center trim plate. Refer to Instrument Panel Accessory Bezel Replacement .
