Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

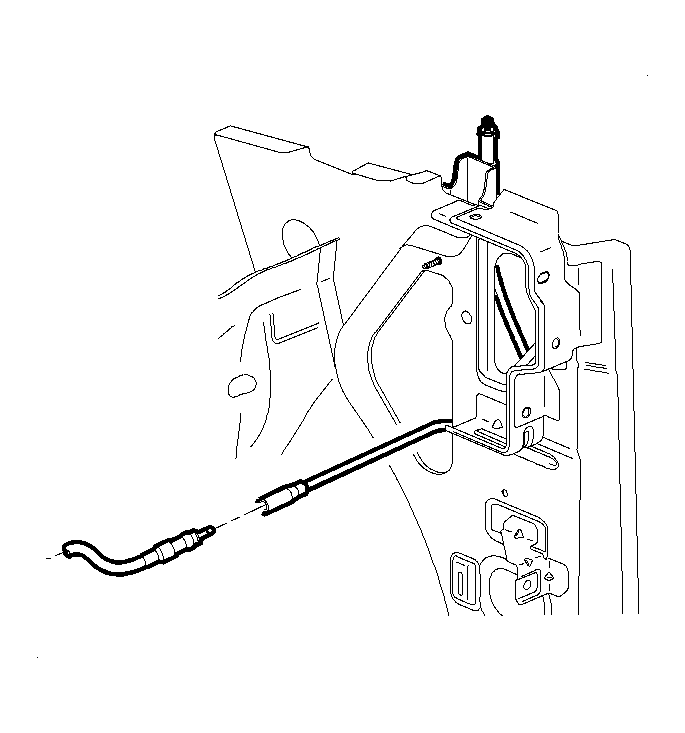

    Fig 1: View of Antenna Lead-in To Antenna Base
    GM933124Courtesy of GENERAL MOTORS CORP.
  1. Connect the antenna lead-in to the antenna base.

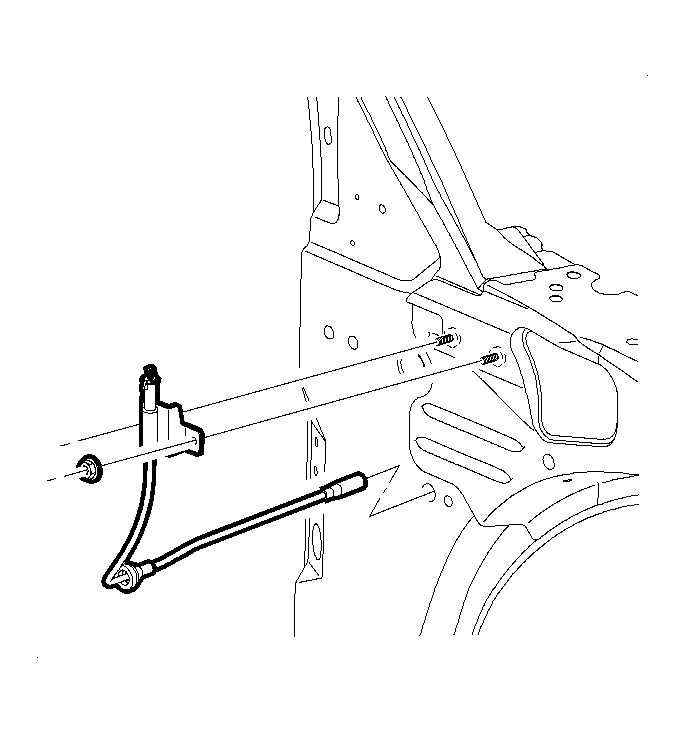

    2. Fig 2: View of Antenna Base & Fasteners
    GM933069Courtesy of GENERAL MOTORS CORP.
  2. Install the antenna base.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screws to the bracket on the antenna base.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

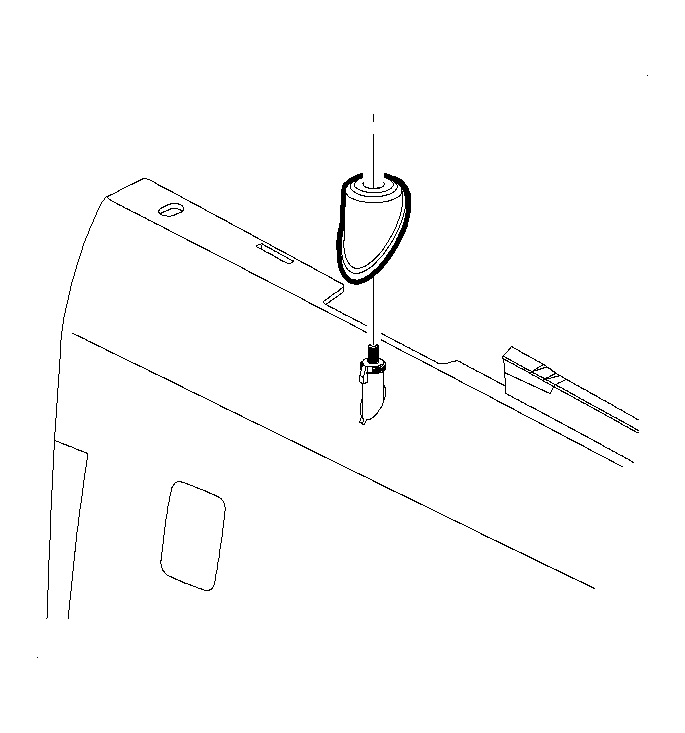

    4. Fig 3: View of Antenna Mast Bezel
    GM936189Courtesy of GENERAL MOTORS CORP.
  4. Install the antenna bezel.
  5. Install the antenna mast to the antenna base by turning clockwise.

    Tighten:  Tighten the mast to 10 N.m (89 lb in).

  6. Install the front fender. Refer to Front Fender Replacement .
