Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

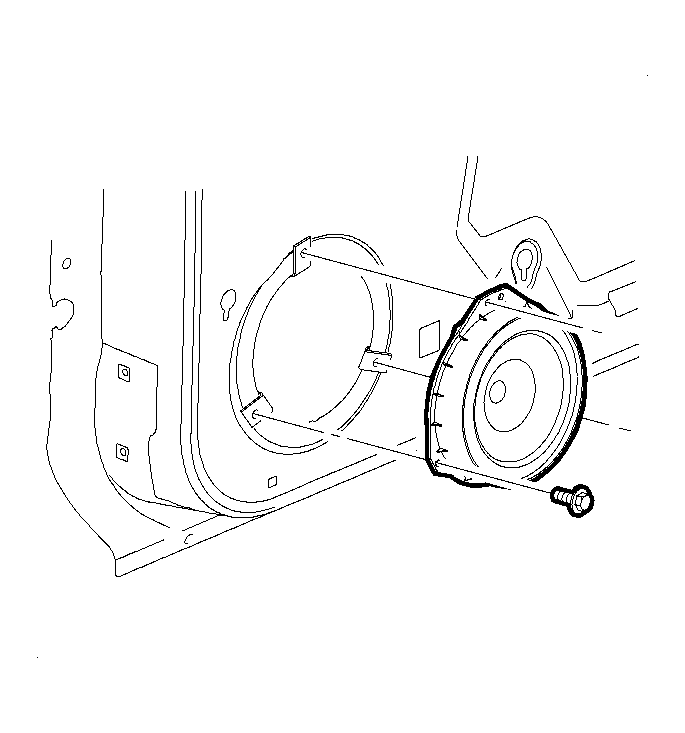

    Fig 1: View of Front Door Speaker & Screws
    GM933135Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the speaker.
  2. Install the speaker to the front door.
    3. NOTE: Refer to Fastener Notice .
  3. Install the screws to the speaker.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
