Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Upper Speaker
    GM1073567Courtesy of GENERAL MOTORS CORP.
  1. Position the speaker on the trim panel and twist to install the speaker.
  2. Connect the speaker wiring harness.

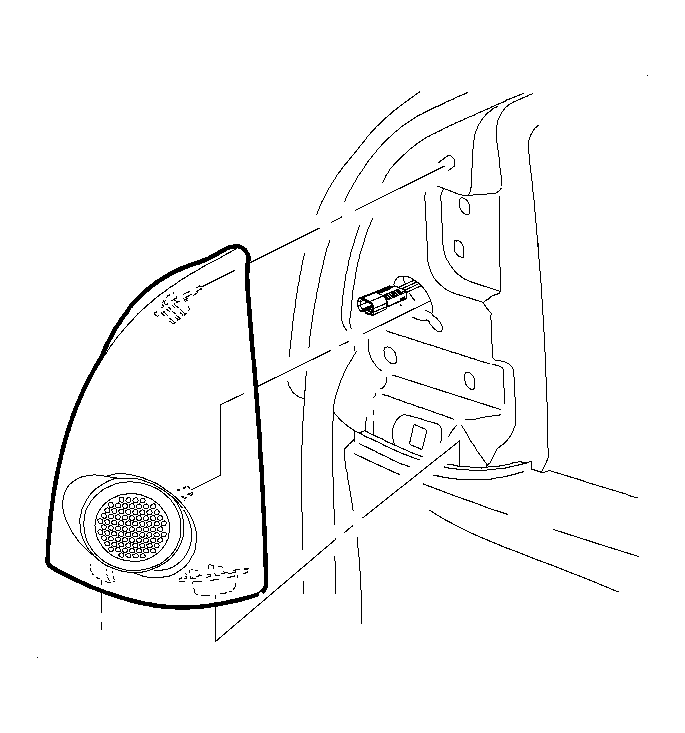

    3. Fig 2: View of Upper Extension of Door Trim Panel
    GM933151Courtesy of GENERAL MOTORS CORP.
  3. Install the upper extension of the door trim panel.
    1. Insert the tabs behind the door trim.
    2. Push to engage the clip.
