Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

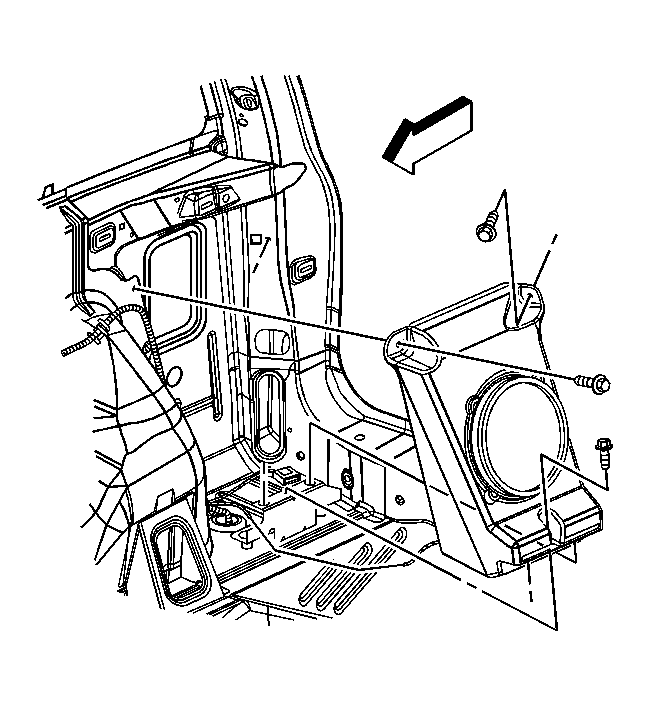

    Fig 1: View of Rear Speaker & Fasteners
    GM1315610Courtesy of GENERAL MOTORS CORP.
  1. Install the speaker into the vehicle.
  2. Connect the electrical connectors to the speaker.
    3. NOTE: Refer to Fastener Notice .
  3. Install the fasteners to the speaker.

    Tighten:  Tighten the fasteners to 2.5 N.m (22 lb in).

  4. Install the rear quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement .
