Steering Wheel and Column Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Heated Steering Wheel Control Module (KA9) |
| 2 |
Horn Switch |
| 3 |
Steering Wheel Control Switch Assembly - Right (UK3) |
| 4 |
Horn Switch |
| 5 |
Steering Wheel Control Switch Assembly - Left (K34/KA9) |

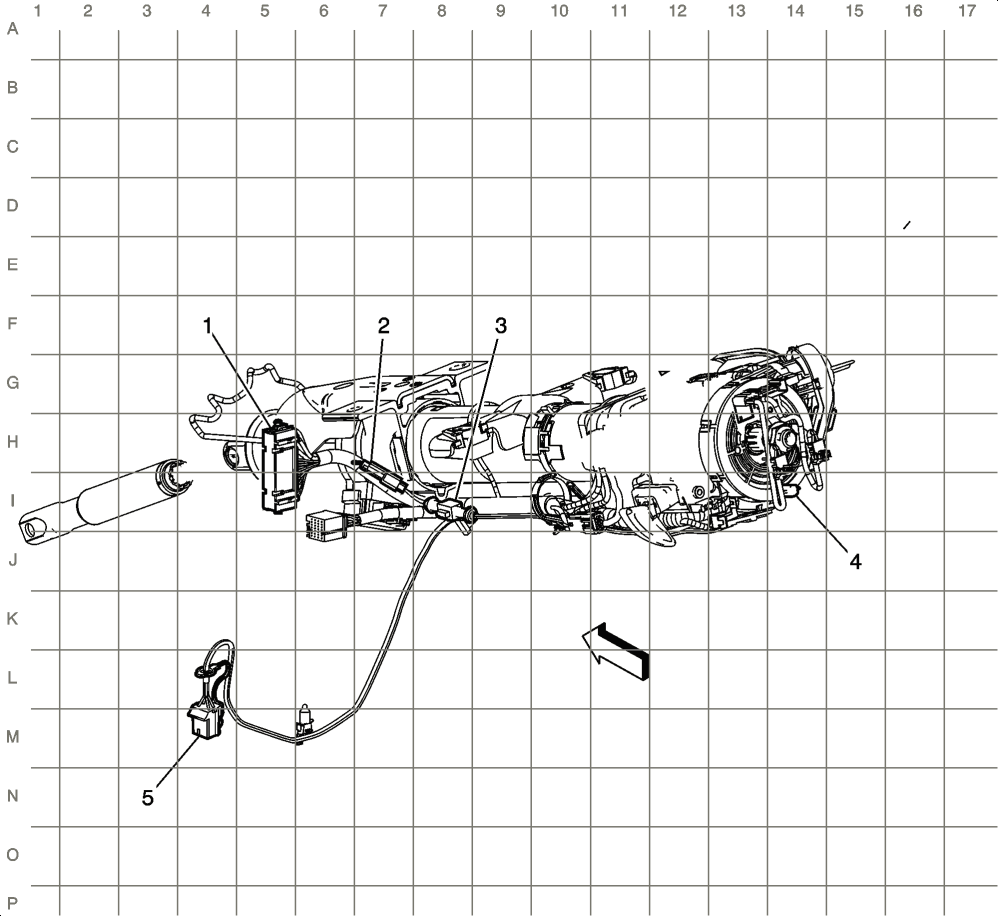

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X201 |
| 2 |
X276 (KA9) |
| 3 |
Heated Steering Fuse (KA9) |
| 4 |
X277 (KA9) |
| 5 |
X275 |
