Wiper/Washer Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|

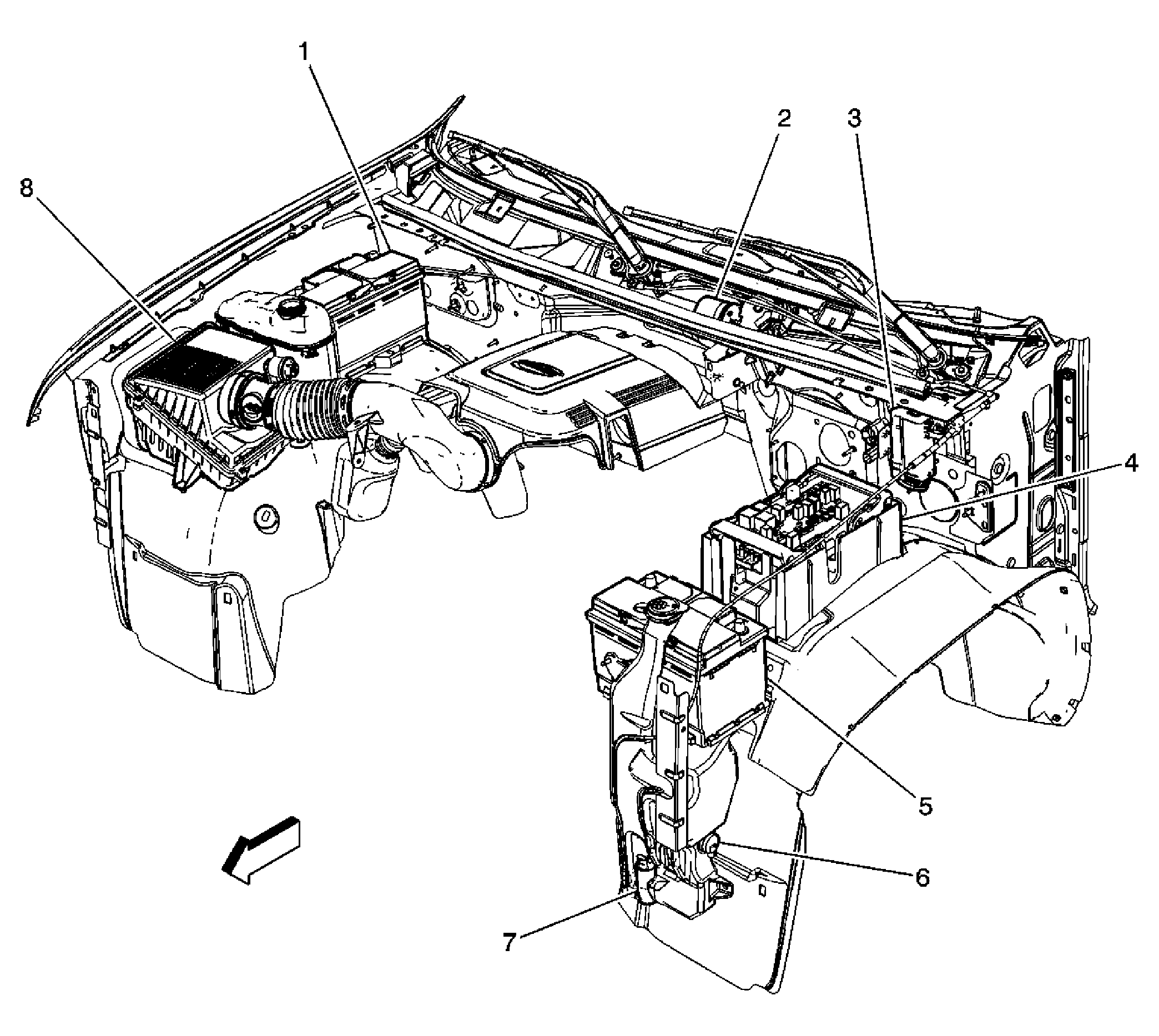

| 1 | Battery - Right |
| 2 | Windshield Wiper Motor |
| 3 | Windshield Washer Solvent Heater (XA7) |
| 4 | Fuse Block - Underhood |
| 5 | Battery - Left (Diesel/6A6/T92) |
| 6 | Washer Fluid Level Switch |
| 7 | Windshield Washer Fluid Pump |
| 8 | Air Cleaner Box |
| Callout | Component Name |
|---|---|

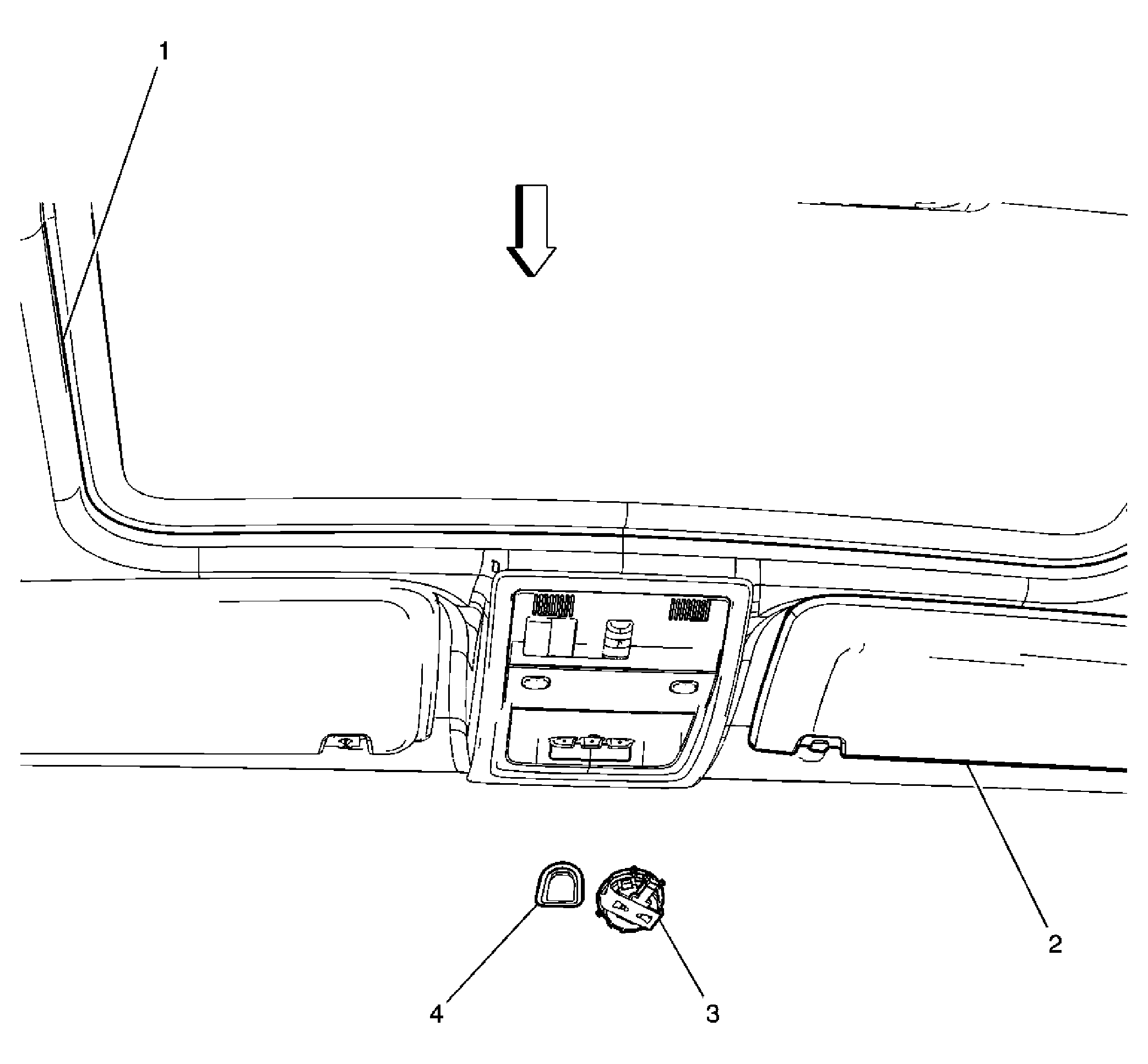

| 1 | Sunroof |
| 2 | Sunshade - Right |
| 3 | Outside Moisture Sensor (CE1) |
| 4 | Inside Rearview Mirror (ISRVM) Window Anchor |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal Multifunction Switch |
| 2 | Ignition Lock Cylinder |
| 3 | Tow/Haul Switch |
| 4 | Steering Angle Sensor |
| 5 | A/T Shift Lock Control Solenoid |
| 6 | Theft Deterrent Control Module |
| 7 | Ignition Switch |
| 8 | Inflatable Restraint Steering Wheel Module Coil |
