Mirror Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

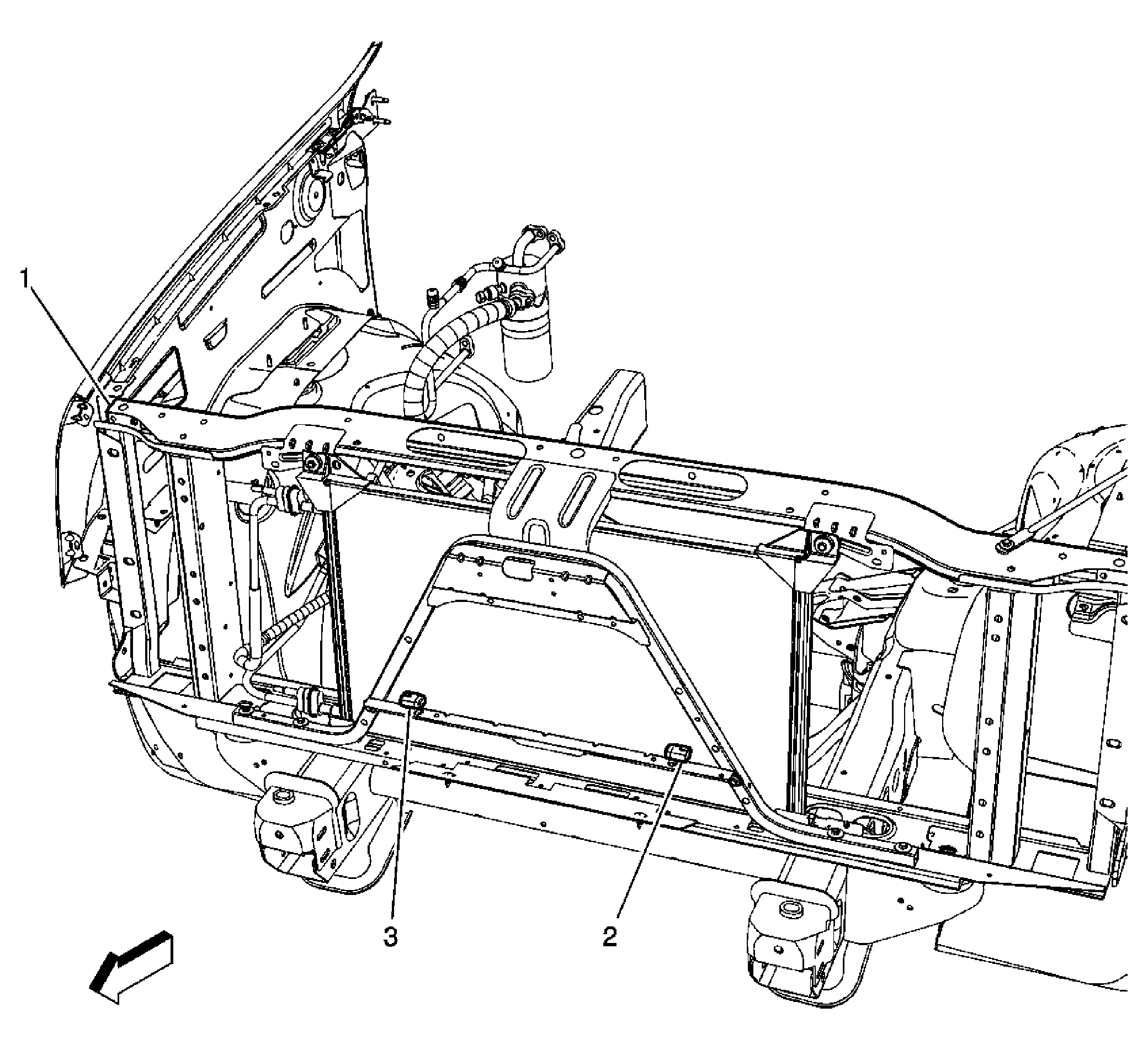

Fig 1: Ambient Air Temperature Sensors
GM1822407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radiator Core Support
2 Ambient Air Temperature Sensor (DF5)
3 Ambient Air Temperature Sensor - HVAC (CJ2)
Fig 2: Door Mirrors
GM1860640Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exterior Illumination Lamp - Left
2 Exterior Illumination Lamp - Right
3 Outside Rear View Mirror (OSRVM) - Driver
4 Outside Rear View Mirror (OSRVM) - Passenger
Fig 3: Front Headliner Components
GM1855919Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Air Temperature Sensor - Front (CJ2)
2 Cellular Microphone (UE1/U3U/UVB)
3 Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab)
4 Sunroof Switch (CF5)
5 Sunshade - Right (DH6)
6 Garage Door Opener (UG1)
7 Onstar Button Assembly
8 Inside Rearview Mirror (ISRVM)
9 Courtesy/Reading Lamps - Front
10 Windshield
11 Sunshade - Left (DH6)
