Engine Controls Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Electronic Adjustable Pedal Assembly (JF4) |
| 2 | Stop Lamp Switch |
| 3 | Accelerator Pedal Position (APP) Sensor |

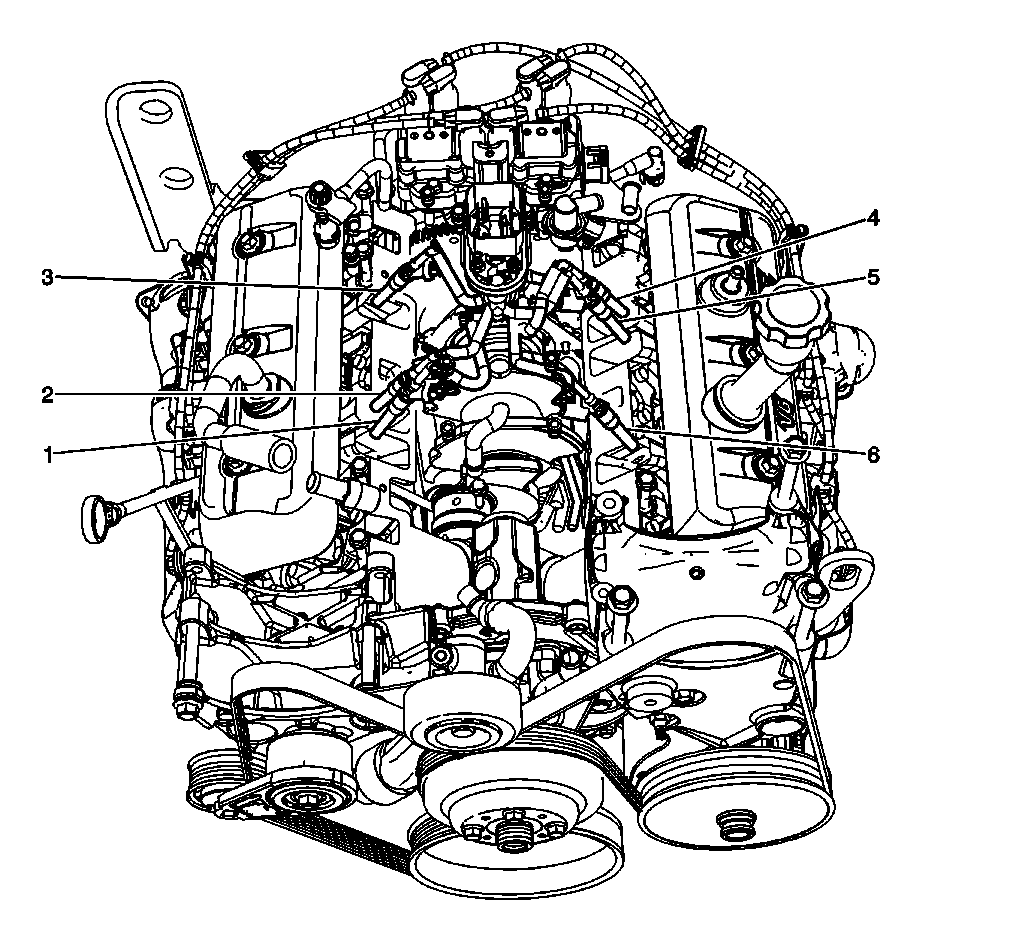

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 2 |
| 2 | Fuel Injector 4 |
| 3 | Fuel Injector 6 |
| 4 | Fuel Injector 5 |
| 5 | Fuel Injector 3 |
| 6 | Fuel Injector 1 |

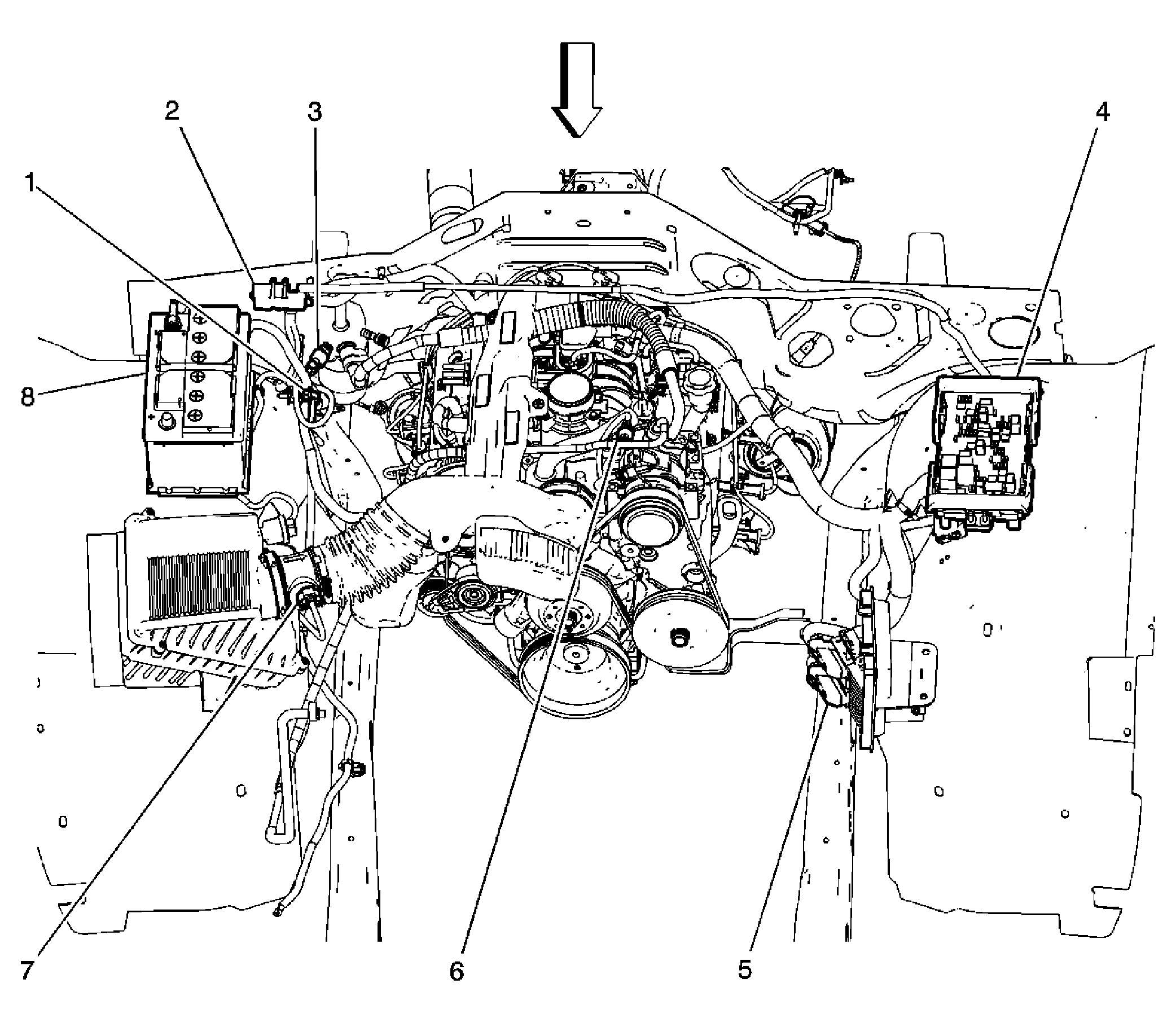

| Callout | Component Name |
|---|---|
| 1 | Battery Current Sensor |
| 2 | Mega Fuse |
| 3 | A/C Low Pressure Switch (C67/CJ2) |
| 4 | Fuse Block - Underhood |
| 5 | Engine Control Module (ECM) |
| 6 | A/C Refrigerant Pressure Sensor (C67/CJ2) |
| 7 | Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor |
| 8 | Battery - Right |
| Callout | Component Name |
|---|---|
| 1 | Generator |
| 2 | Throttle Body |
| 3 | Transmission |
| 4 | Park/Neutral Position (PNP) Switch |
| 5 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 |
| 6 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |
| 7 | Knock Sensor (KS) - 1 |
| 8 | Engine Coolant Temperature (ECT) Sensor |
| 9 | A/C Compressor Clutch (C67/CJ2) |
| Callout | Component Name |
|---|---|
| 1 | Evaporative Emmision (EVAP) Canister Purge Solenoid Valve |
| 2 | Throttle Body |
| 3 | Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor |
| 4 | Camshaft Position (CMP) Sensor |
| 5 | G103 |
| 6 | Crankshaft Position (CKP) Sensor |
| 7 | Knock Sensor (KS) - 2 |
| 8 | Starter |
| 9 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 10 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 |
| 11 | Vehicle Speed Sensor (VSS) |
| Callout | Component Name |
|---|---|
| 1 | Central Sequential Fuel Injection (SFI) Module |
| 2 | Manifold Absolute Pressure (MAP) Sensor |
| 3 | G106 |
| 4 | Engine Oil Pressure (EOP) Sensor |
| 5 | Ignition Control Module (ICM) |
| 6 | G107 |
| Callout | Component Name |
|---|---|
| 1 | Fuel Tank Pressure (FTP) Sensor (Gas) |
| 2 | Fuel Tank |
| 3 | Evaporative Emissions (EVAP) Canister |
| 4 | Evaporative Emissions (EVAP) Canister Vent Solenoid Valve (- Diesel) |
| 5 | Electronic Brake Control Module (EBCM) (JL4/JF3/JF7/JH6/JH7) |
| 6 | Fuel Line Pressure Sensor (FSCM) |
| 7 | Chassis |
| 8 | Fuel Pump and Sender Assembly - Front (Gas) |
