Control Solenoid Valve & Transmission Control Module Assembly Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

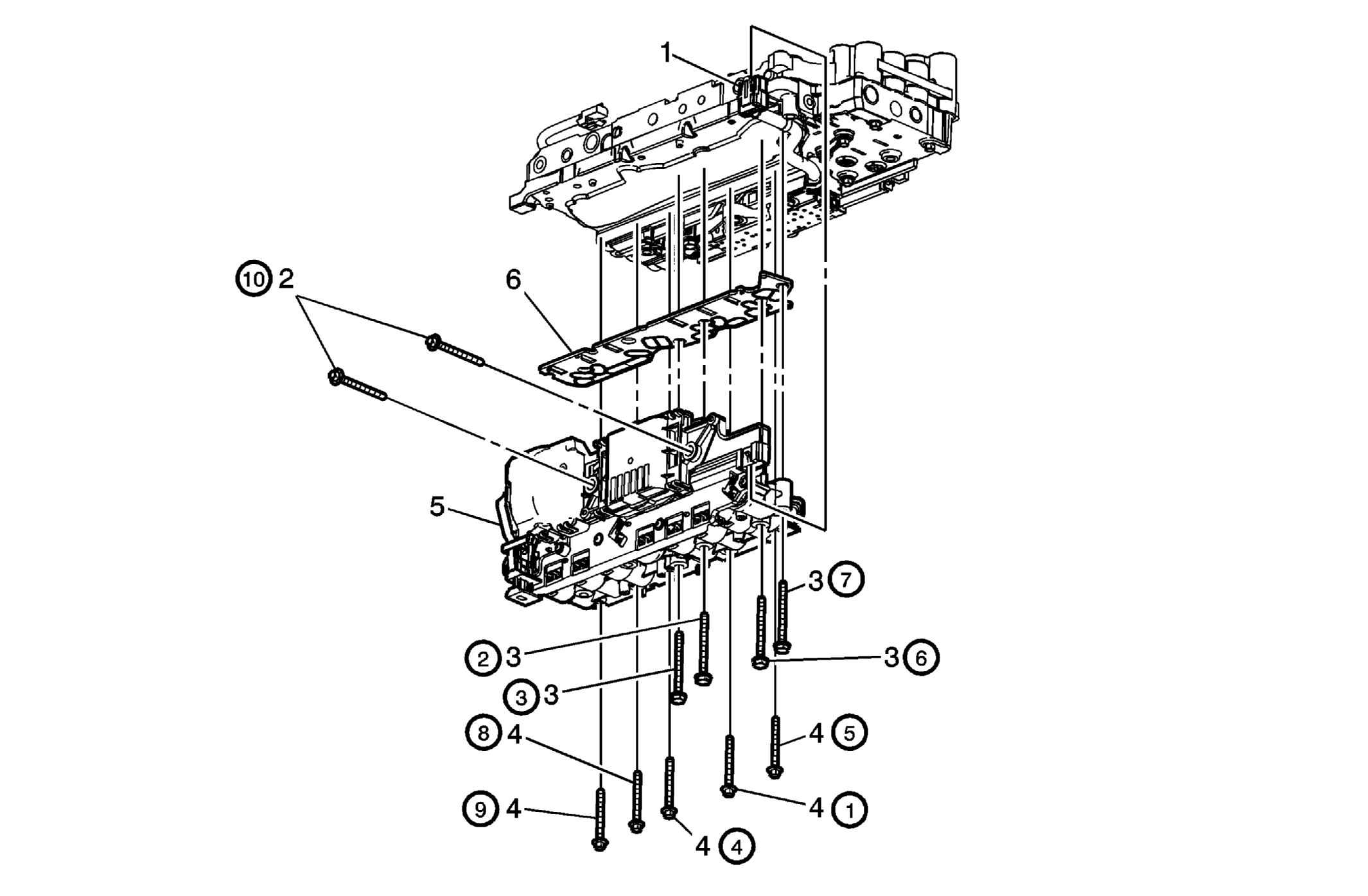

Fig 1: View Of Control Solenoid Valve & Transmission Control Module Assembly

Courtesy of GENERAL MOTORS CORP.

Control Solenoid Valve and Transmission Control Module Assembly Replacement

Callout	Component Name
Preliminary Procedures: Remove the control valve body assembly. Refer to Control Valve Lower Body and Upper Body Replacement .
1	Manual Shift Shaft Position Switch Assembly Electrical Connector Tip: Release the connector lock before disconnecting. Engage the connector lock after connecting.
2	Control Module Assembly Heat Sink Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Tighten in specified sequence. Tighten: 8 N.m (71 lb in)
3	Control Solenoid Valve Assembly Bolt (Qty: 4) Tip: Tighten in specified sequence. Tighten: 8 N.m (71 lb in)
4	Control Solenoid Valve Assembly Bolt (Qty: 5) Tip: Tighten in specified sequence. Tighten: 8 N.m (71 lb in)
5	Control Solenoid Valve and Module Assembly Procedure Inspect the 4 filter plate retaining tabs. A broken tab may not adequately secure the filter plate to the control solenoid valve assembly. Align the control solenoid valve assembly with the lower valve body locator pin when assembling. Reset the transmission adaptive pressure (TAP) values. Refer to Service Fast Learn Adapts .
6	Filter Plate Tip: Discard filter plate and replace with new.
