Power Take-Off (PTO) Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

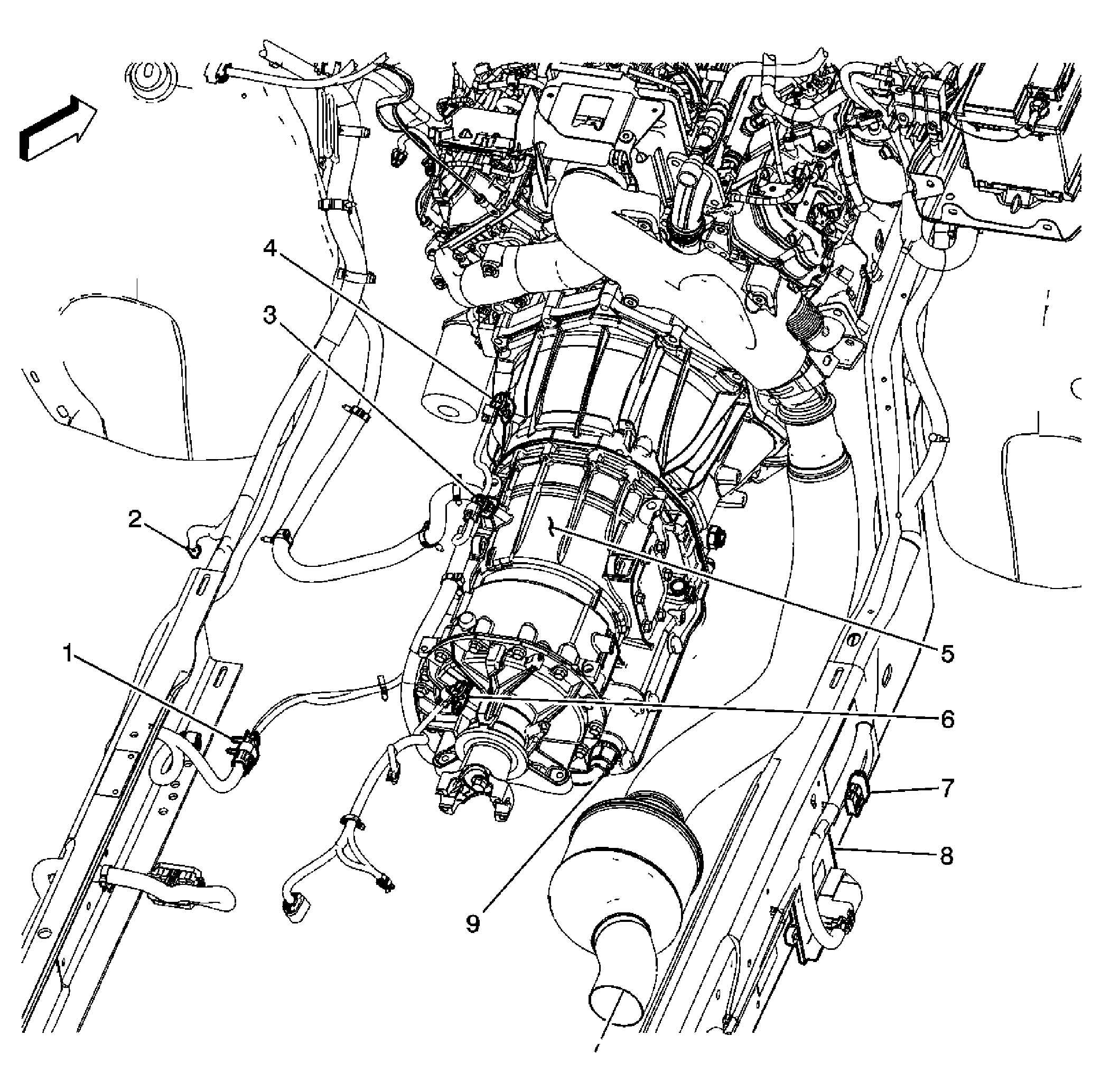

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X300 |
| 2 |
G300 |
| 3 |
Automatic Transmission Turbine Speed Sensor |
| 4 |
Automatic Transmission Input Shaft Speed (AT ISS) Sensor |
| 5 |
Automatic Transmission |
| 6 |
Vehicle Speed Sensor (VSS) |
| 7 |
X124 |
| 8 |
Power Take Off (PTO) Module |
| 9 |
X175 |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Driver Information (DIC) Switch |
| 2 |
Instrument Panel Cluster (IPC) |
| 3 |
Radio |
| 4 |
Ambient Light/Sunload Sensor Assembly (CJ2) / Ambient Light Sensor (C67/C42) |
| 5 |
HVAC Control Module |
| 6 |
Inflatable Restraint I/P Module Disable Switch (C99) |
| 7 |
Power Take-Off (PTO) Switch |
| 8 |
Auxiliary Power Outlet - Front 2 |
| 9 |
I/P Multifunction Switch Assembly |
| 10 |
Auxiliary Power Outlet - Front 1 |
| 11 |
Transfer Case Shift Control Switch (NQF/NQH) |
| 12 |
Trailer Brake Control Panel Switch (JL1) |
| 13 |
Headlamp and Panel Dimmer Switch |
