Shoulder Belt Guide Adjuster Replacement - Front

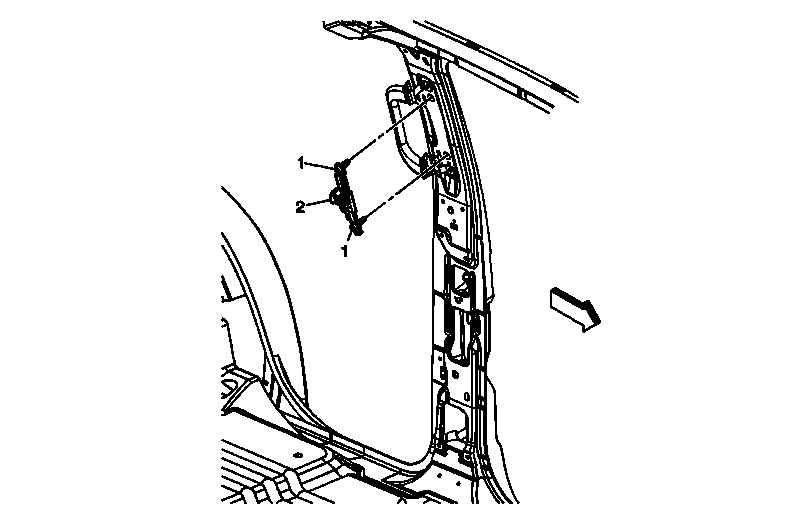

Fig 1: Shoulder Belt Guide Adjuster Assembly & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove front door sill plate. Refer to Front Side Door Sill Plate Replacement . Remove rear door sill plate. Refer to Rear Side Door Sill Plate Replacement (Extended Wheelbase) or Rear Side Door Sill Plate Replacement (Standard Wheelbase) . Remove front seat shoulder belt adjuster cover. Refer to Seat Belt Height Adjuster Knob Replacement - Front . Remove center pillar lower garnish molding. Refer to Garnish Molding Replacement - Center Pillar Lower . Remover center pillar upper garnish molding. Refer to Garnish Molding Replacement - Center Pillar Upper . Remove front seat belt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) Tighten: 50 N.m (37 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster Assembly

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)

Tighten: 50 N.m (37 lb ft)

Front Seat Shoulder Belt Guide Adjuster Assembly
