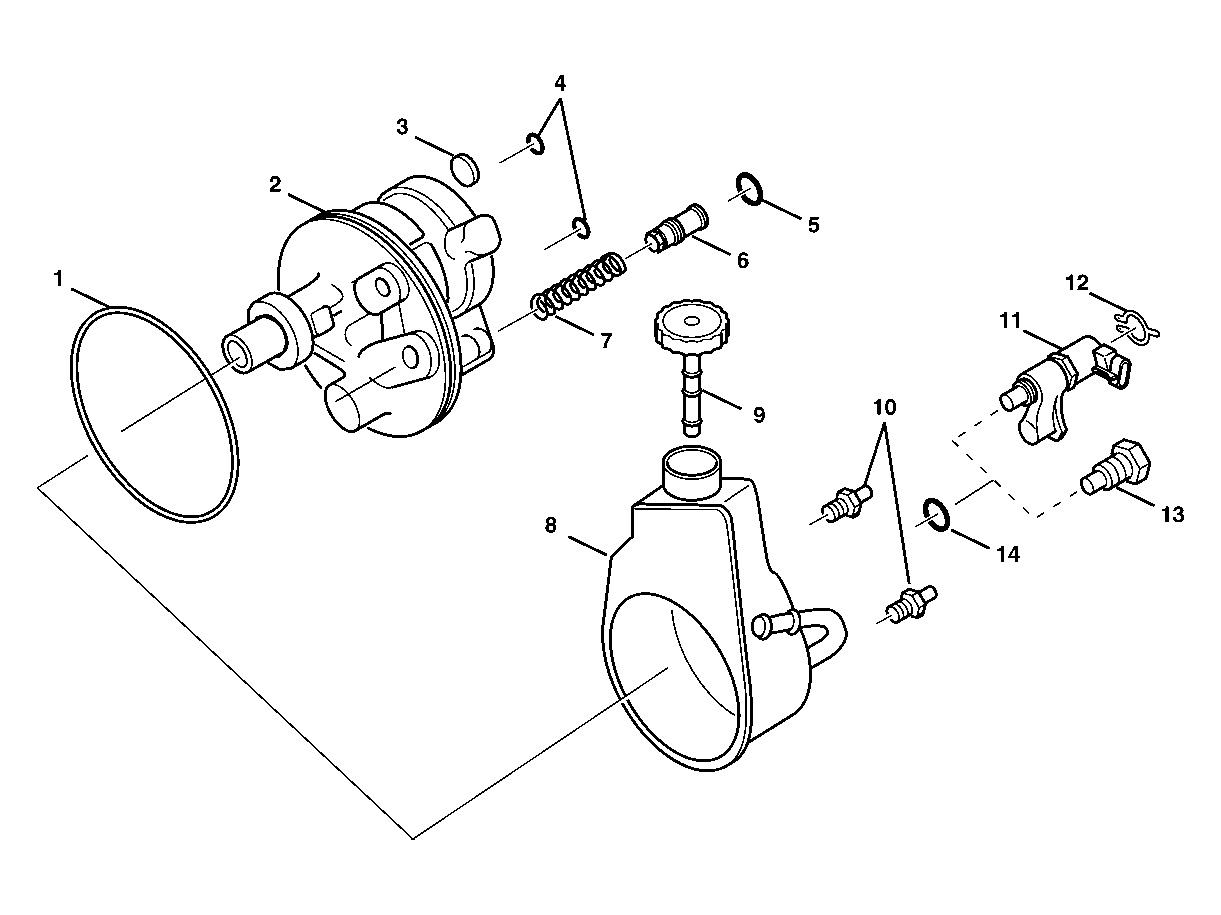

Power Steering Pump Disassembled View (Regular)
| Callout | Component Name |
|---|---|
| 1 | O-ring Seal |
| 2 | Hydraulic Pump Housing Assembly |
| 3 | Magnet |
| 4 | O-ring Seals |
| 5 | Rectangular Section Seal |
| 6 | Control Valve |
| 7 | Flow Control Spring |
| 8 | Reservoir Assembly |
| 9 | Reservoir Capstick |
| 10 | Pump Mounting Studs |
| 11 | Variable Assist Steering Actuator |
| 12 | Retaining Ring |
| 13 | Connector and Fitting Assembly |
| 14 | O-ring Seal |
