Installation Procedure

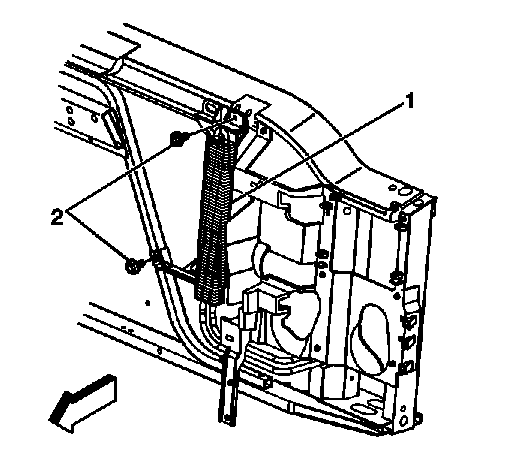

Fig 1: View Of Power Steering Cooler & Bolts (With Hydroboost)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the power steering cooler (1) to the radiator support.
Tighten: Tighten the bolts retaining the power steering cooler to 9 N.m (80 lb in).

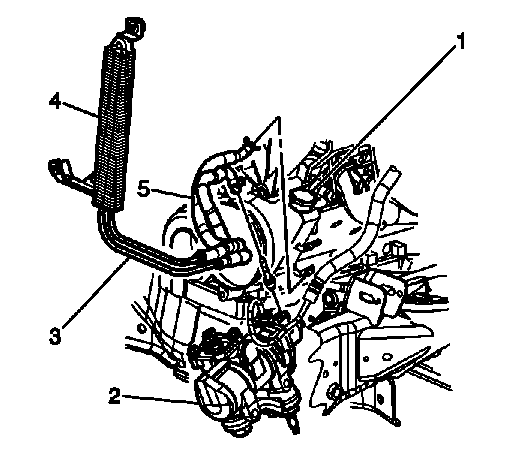

Fig 2: View Of Power Steering Cooler Hoses, Power Steering Gear & Power Steering Pump (With Hydroboost)

Courtesy of GENERAL MOTORS CORP.

Connect the power steering cooler hose (5) to the power steering pump (2) and reposition the clamp.
Connect the power steering outlet gear hose (3) to the power steering gear (1) and reposition the clamp.
Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
Inspect all the hose connections for leaks.
Install the radiator grille reinforcement. Refer to Support Replacement - Radiator Grille Reinforcement .
Install the radiator air baffle and deflector-upper. Refer to Radiator Air Upper Baffle and Deflector Replacement (Cadillac) or Radiator Air Upper Baffle and Deflector Replacement (Yukon) .
Install the front grille. Refer to Fascia Grille Replacement (Suburban) or Fascia Grille Replacement (Yukon) or Fascia Grille Replacement (Escalade) or Fascia Grille Replacement (Tahoe Z71) .
