Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

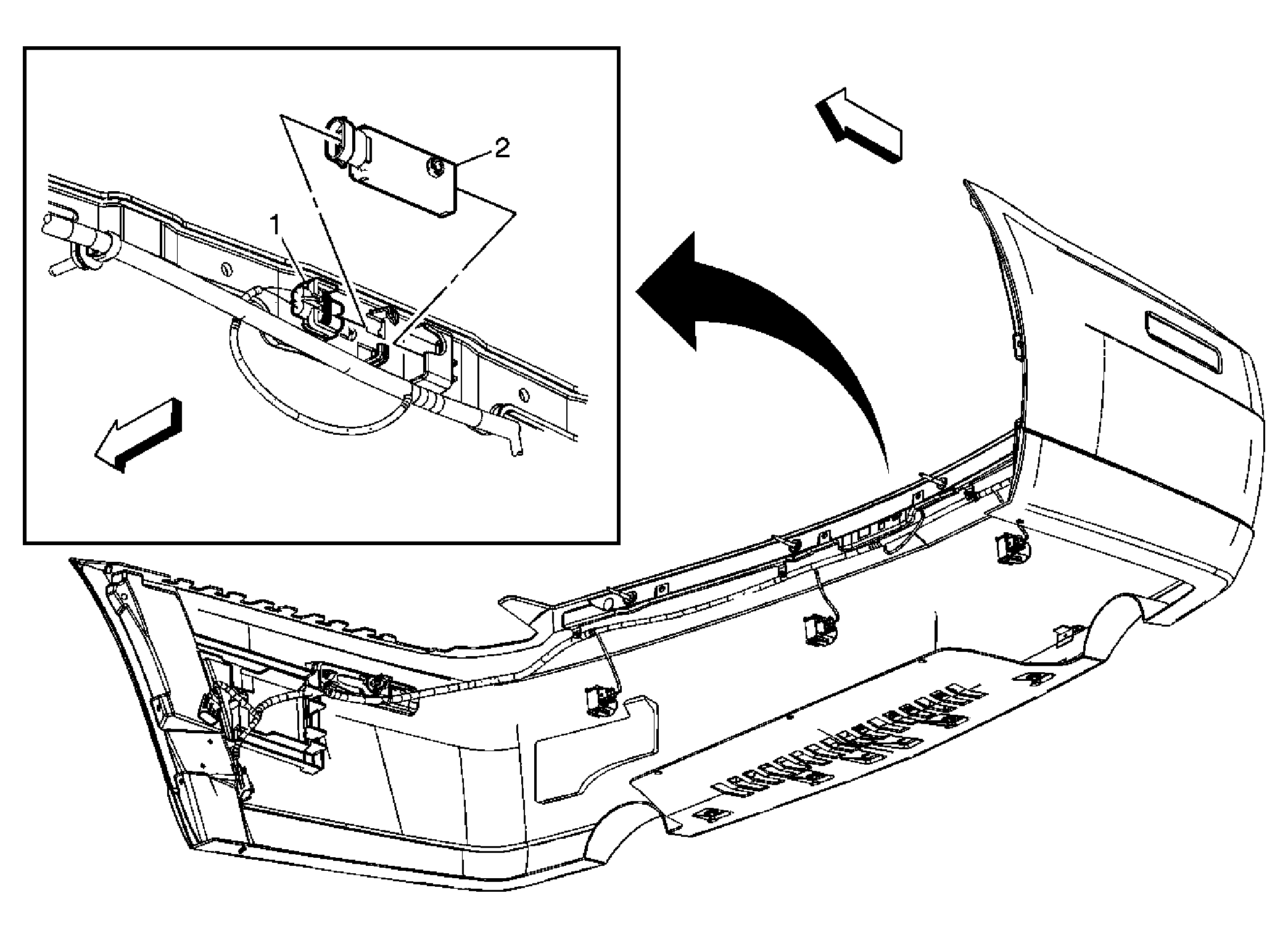

Fig 1: View Of Back Up Alarm Wiring Harness Assembly & Ignition Lock Key Transmitter Antenna Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Back Up Alarm Wiring Harness Assembly
2	Ignition Lock Key Transmitter Antenna Assembly
