Blower Motor Connector End View

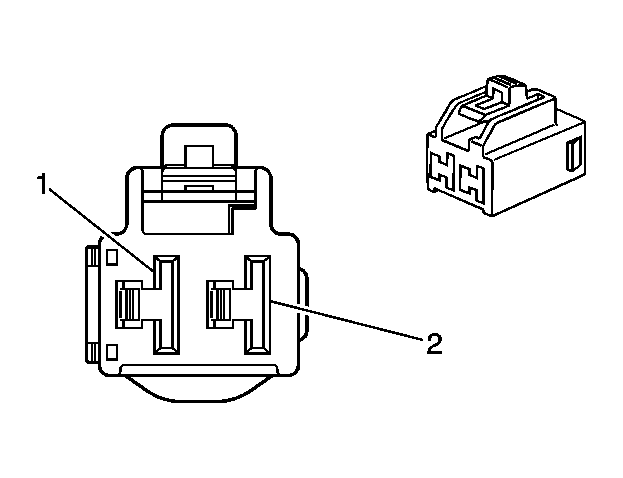

Fig 1: Blower Motor Connector End View
GM1385124Courtesy of GENERAL MOTORS CORP.
Blower Motor Connector Part Information

Connector Part Information
  • OEM: 6098-1104
  • Service: 88988637
  • Description: 2-Way F CONN TS 312 Unsealed (NA)
Terminal Part Information
  • Terminal/Tray: 8100-2493/6
  • Core/Insulation Crimp: F/B
  • Release Tool/Test Probe: 12094430/J-35616-44 (YE)
Blower Motor Connector End View

Pin Wire Color Circuit No. Function
1 OG 374 Auxiliary Blower Motor Speed Control
2 PU 65 Blower Motor Supply Voltage
