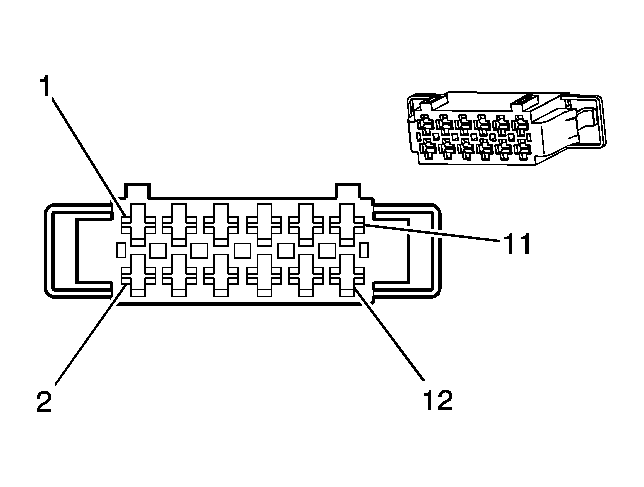

Front Sunshade Control Module Connector End View (C3B)
Connector Part Information
- OEM: 14698-669-696
- Service: See Catalog
- Description: 12-Way F 2.8 Series (BK)
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
Front Sunshade Control Module (C3B) Connector End View
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | WH | - | K-Bus |
| 2-4 | - | - | Not Used |
| 5 | D-BU | 4440 | Battery Positive Voltage |
| 6-8 | - | - | Not Used |
| 9 | BK | 1050 | Ground |
| 10-12 | - | - | Not Used |
