Combination Switch



Lighting Systems Connector End Views

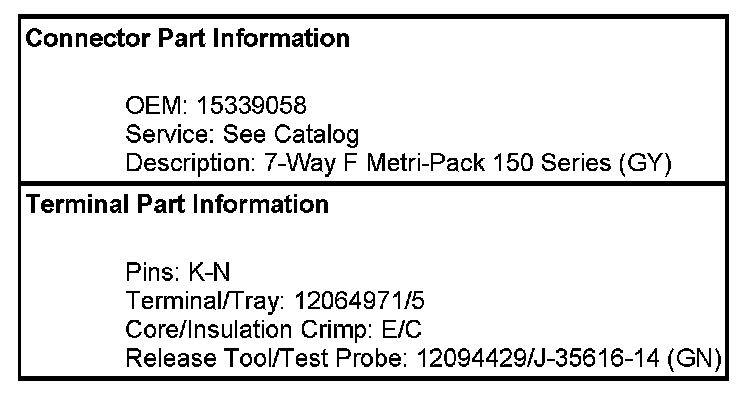

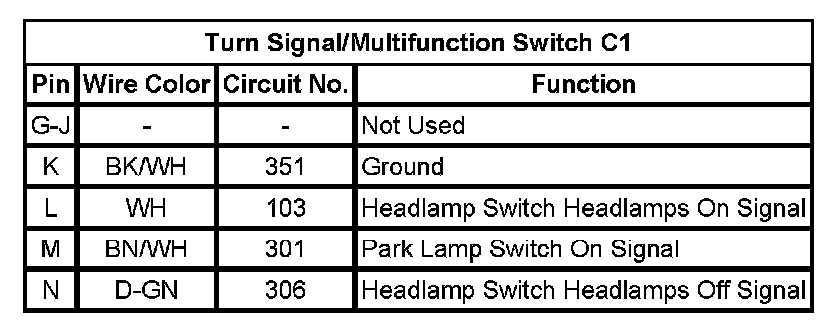

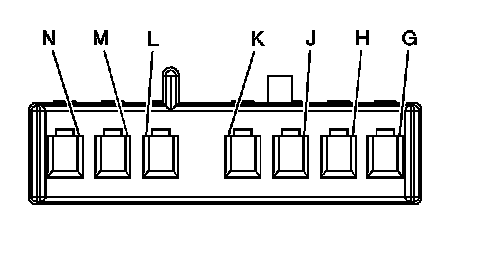

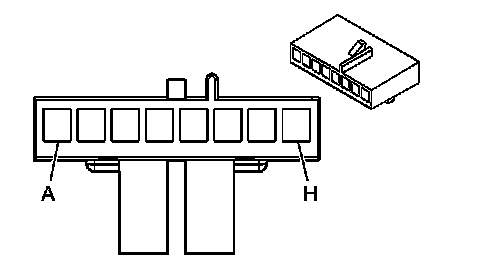

Turn Signal/Multifunction Switch C1

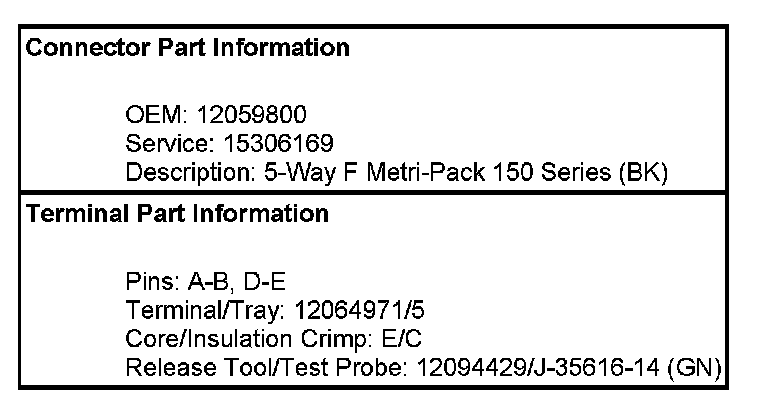

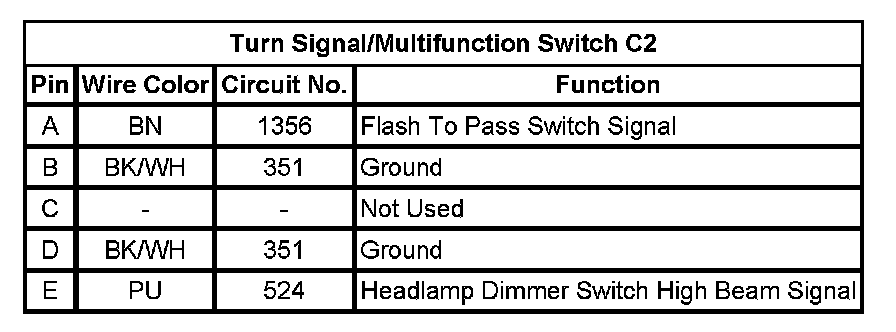

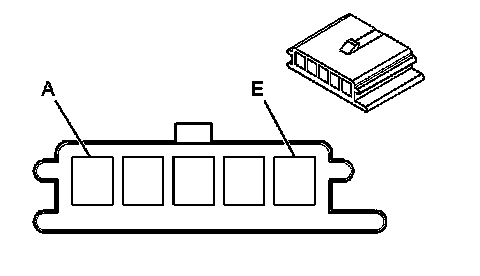

Turn Signal/Multifunction Switch C2

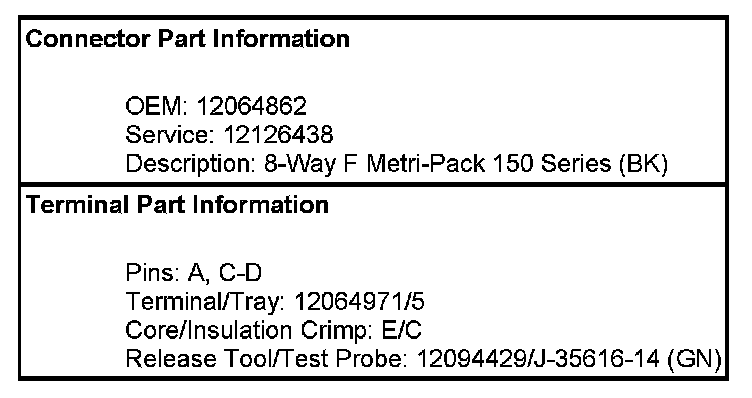

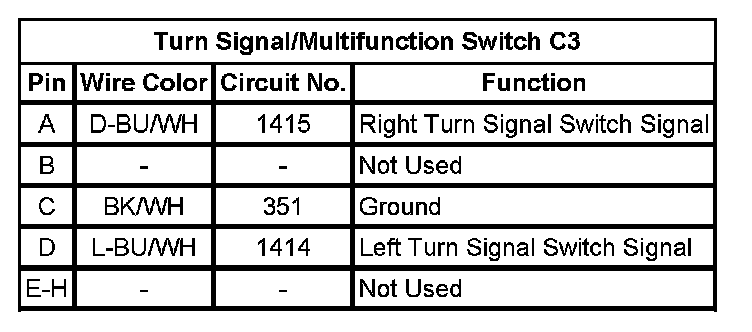

Turn Signal/Multifunction Switch C3

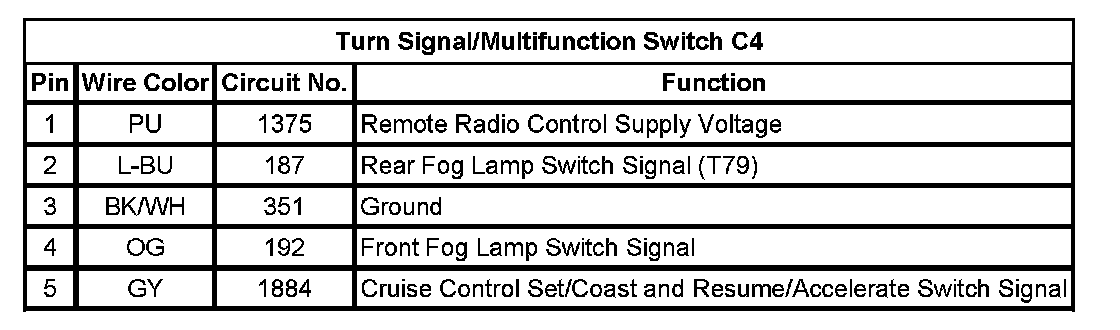

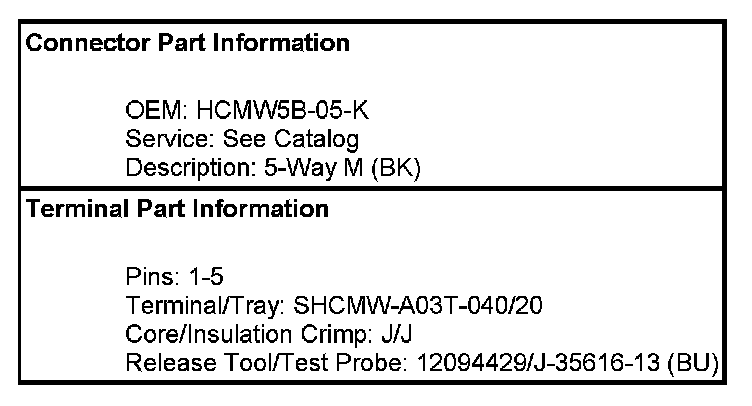

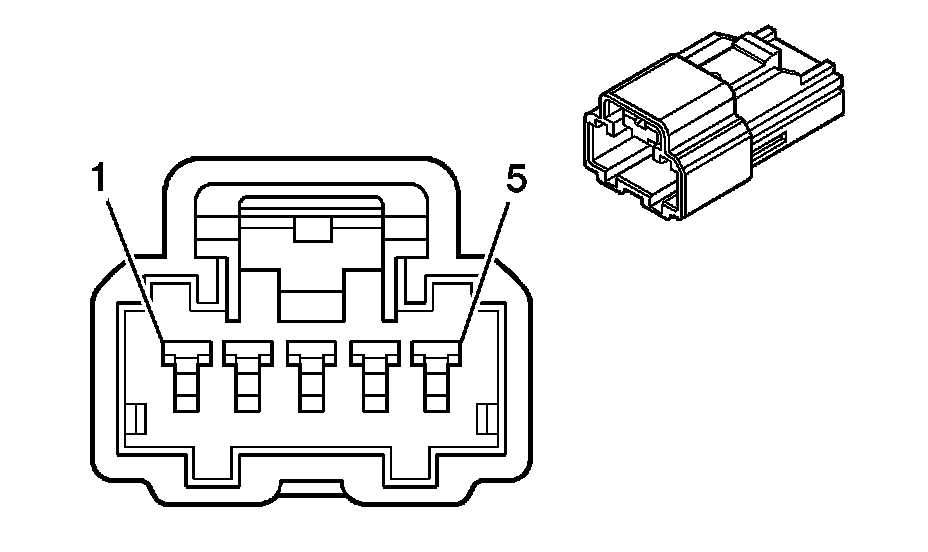

Turn Signal/Multifunction Switch C4
