Power Trunk / Liftgate Control Module



Vehicle Access Connector End Views

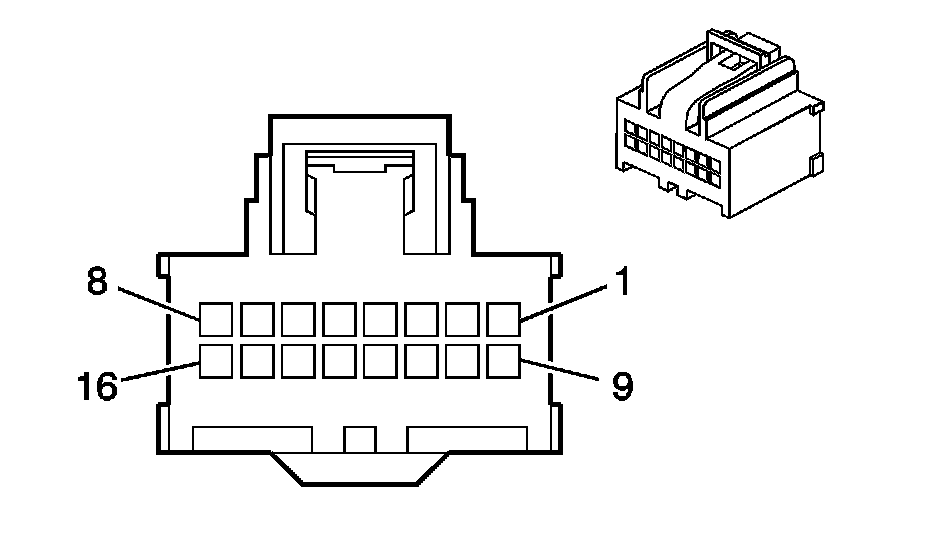

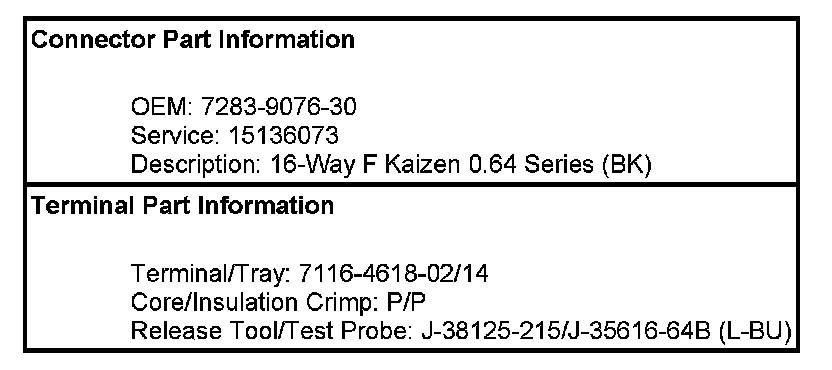

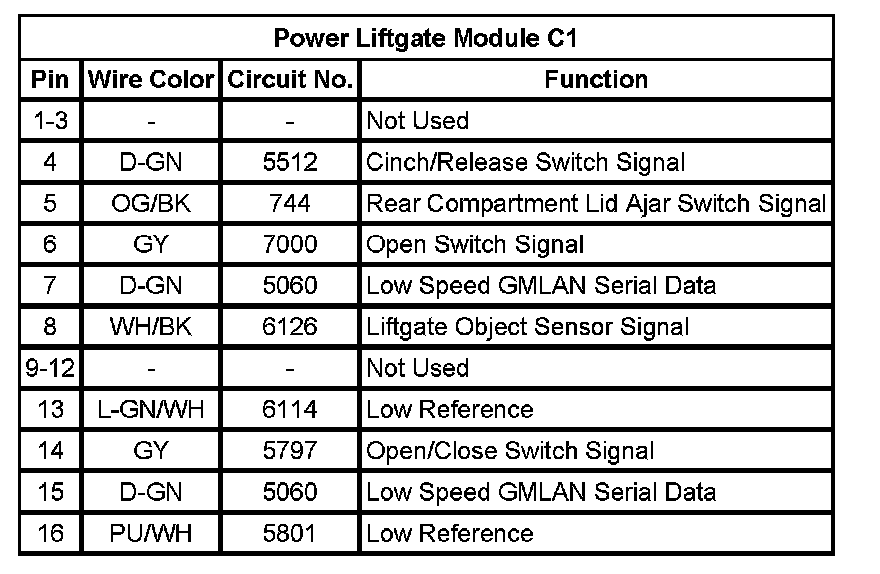

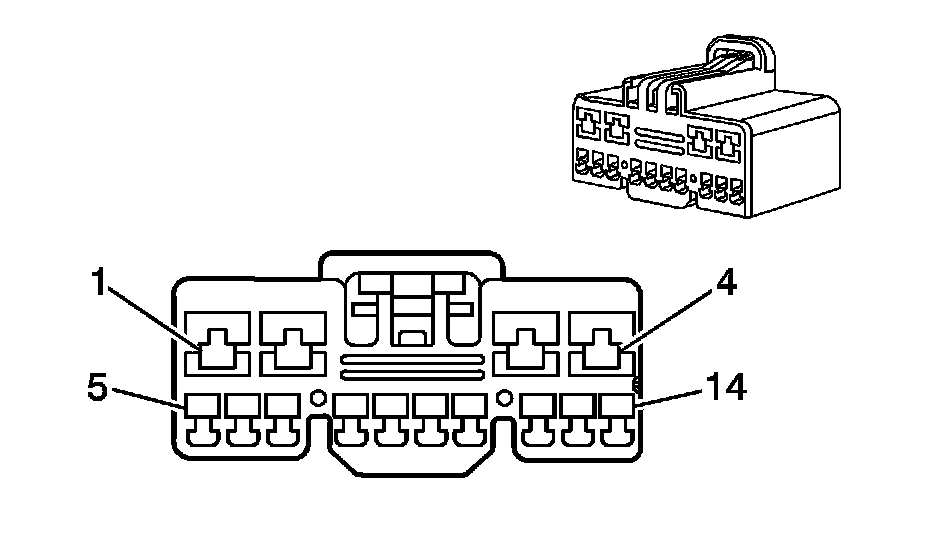

Power Liftgate Module C1

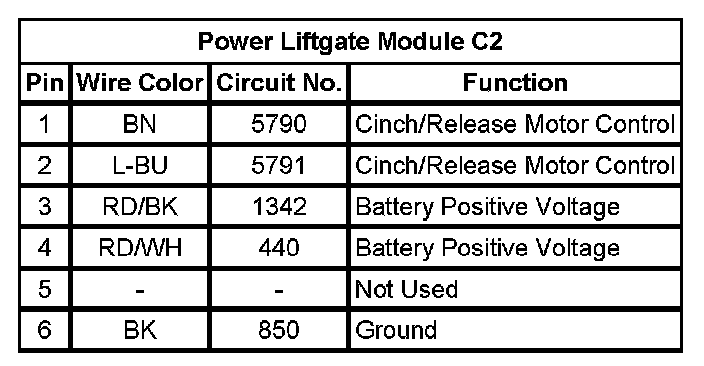

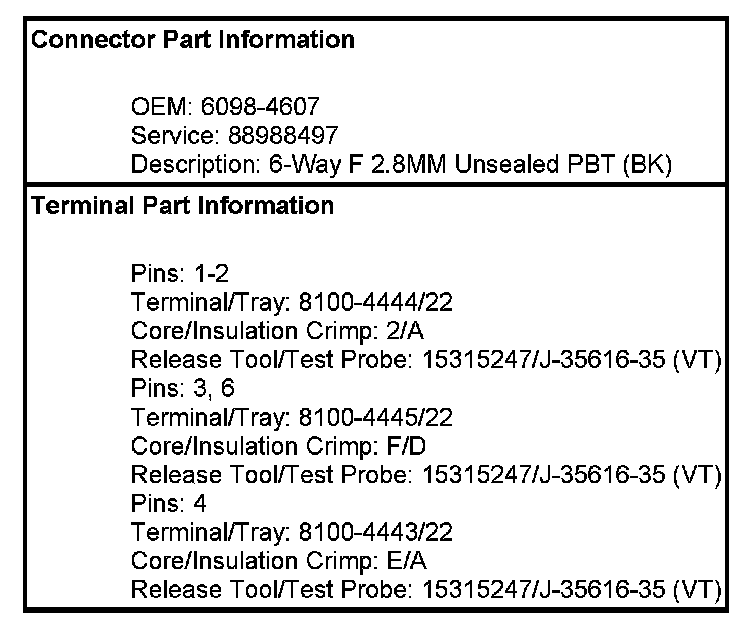

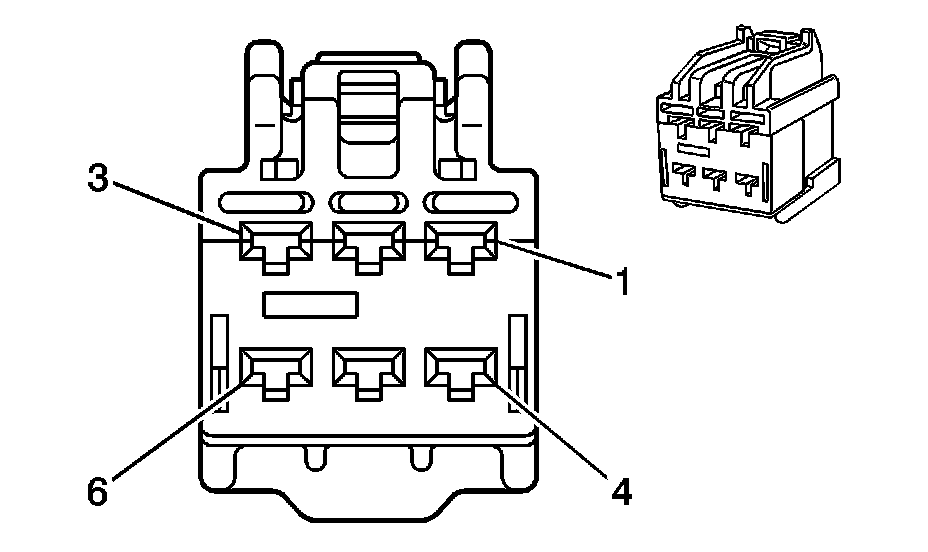

Power Liftgate Module C2

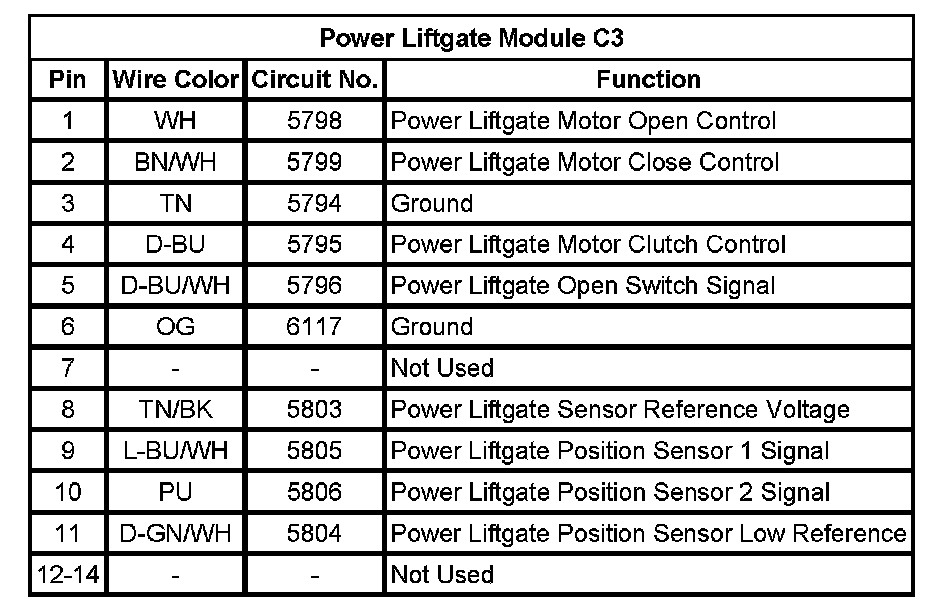

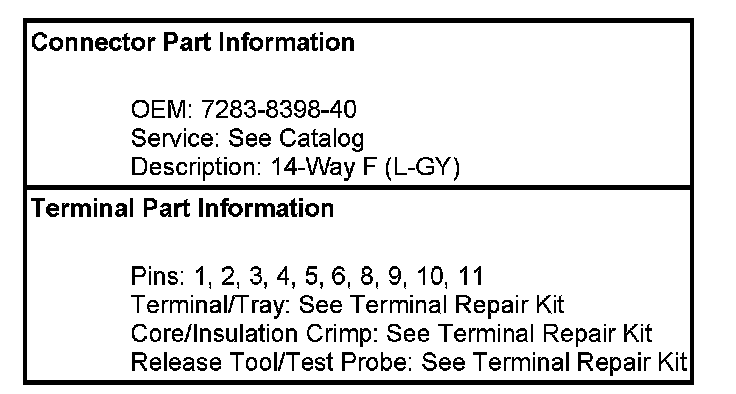

Power Liftgate Module C3
