Accelerator Pedal Position Sensor: Locations

Engine Controls Component Views

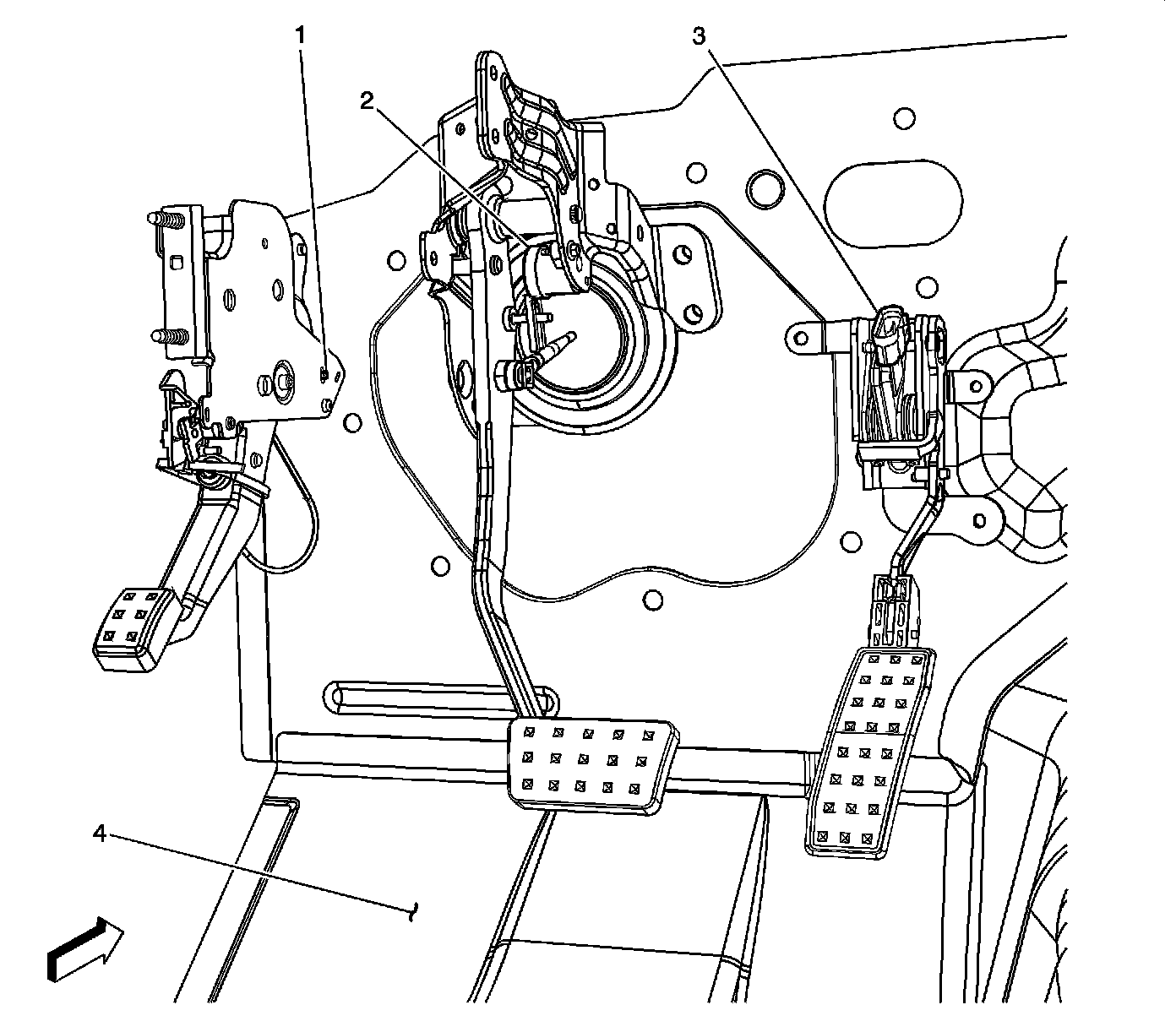

Pedal Switches and Sensors

Pedal Switches and Sensors:

1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
4 - Left Front Floor Panel

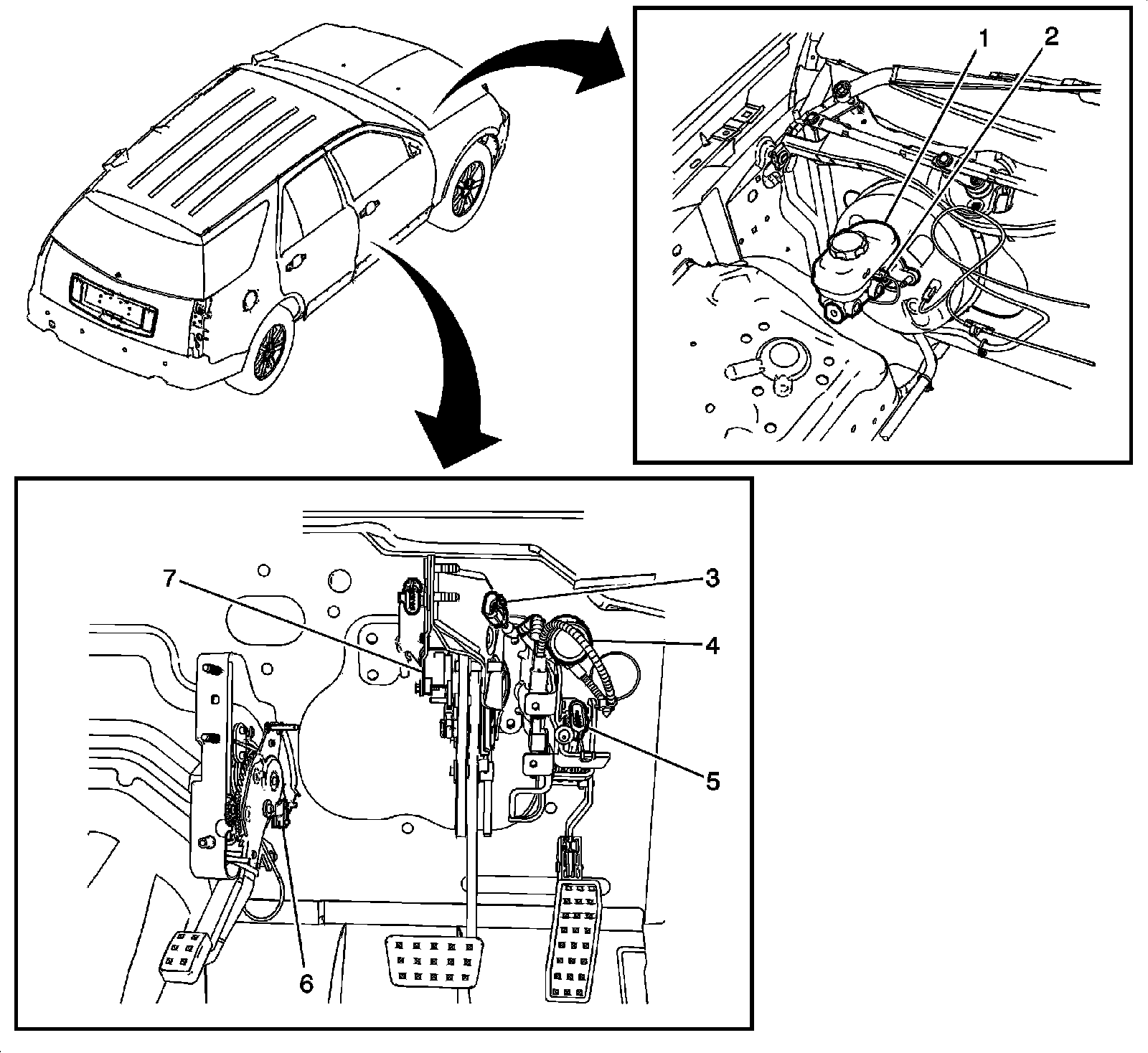

Hydraulic Brake Components (RHD)

Hydraulic Brake Components:

1 - Brake Fluid Reservoir
2 - Brake Fluid level Switch
3 - Adjustable Accelerator Pedal Position Sensor (JF4)
4 - Adjustable Pedal Motor (JF4)
5 - Accelerator Pedal Position (APP) Sensor
6 - Park Brake Switch
7 - Adjustable Brake Pedal Position Sensor (JF4)
