Engine Electrical Component Views (LHD)

Engine Electrical Component Views (LHD)

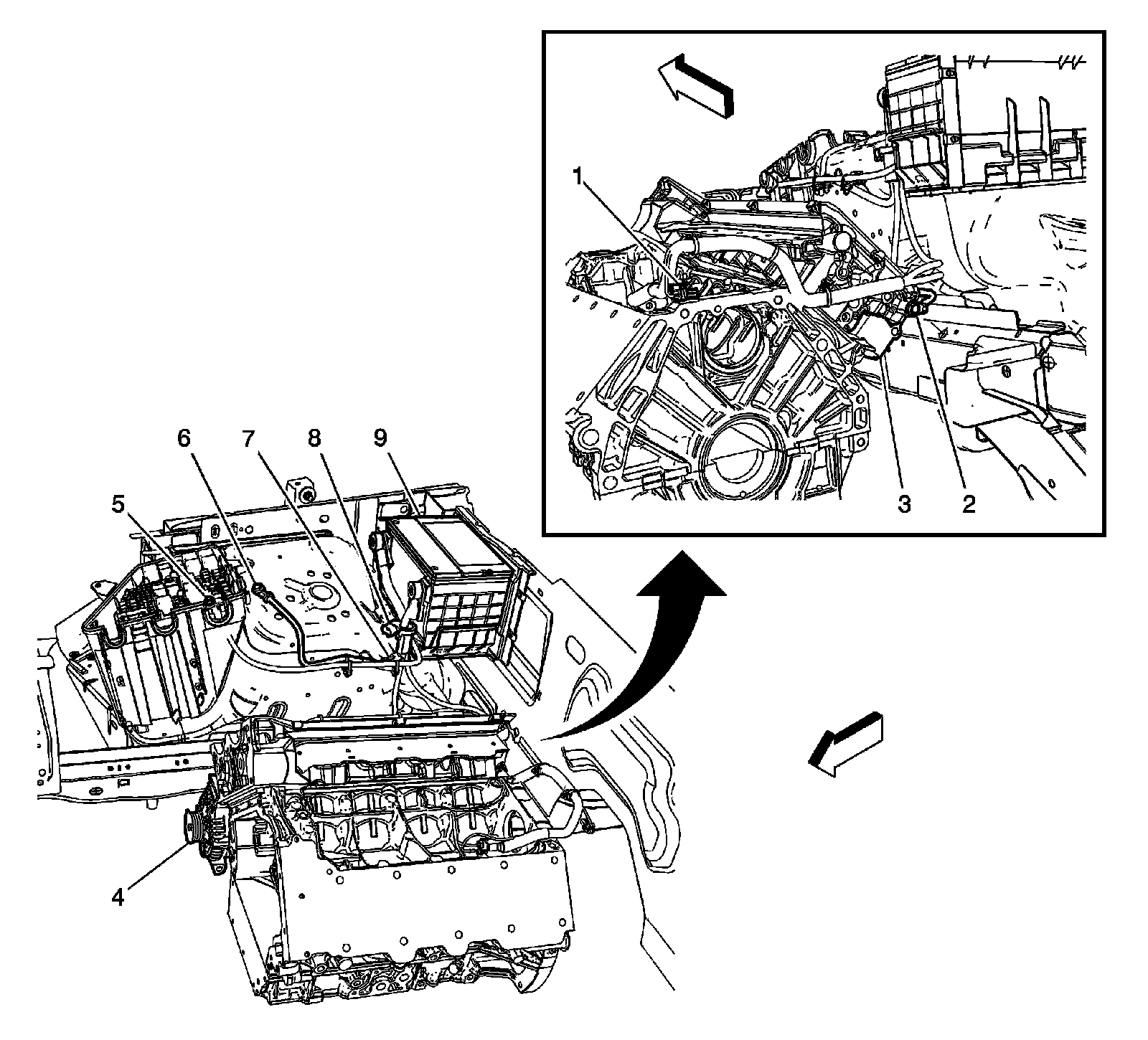

Battery Cables (LH2)




1 - C107
2 - G102
3 - Cylinder Head - RH
4 - Generator
5 - Battery Positive Voltage (Stud)
6 - G105
7 - C103
8 - Battery Current Sensor
9 - Battery
