Data Communication Component Views (LHD)
Data Communication Component Views (LHD)

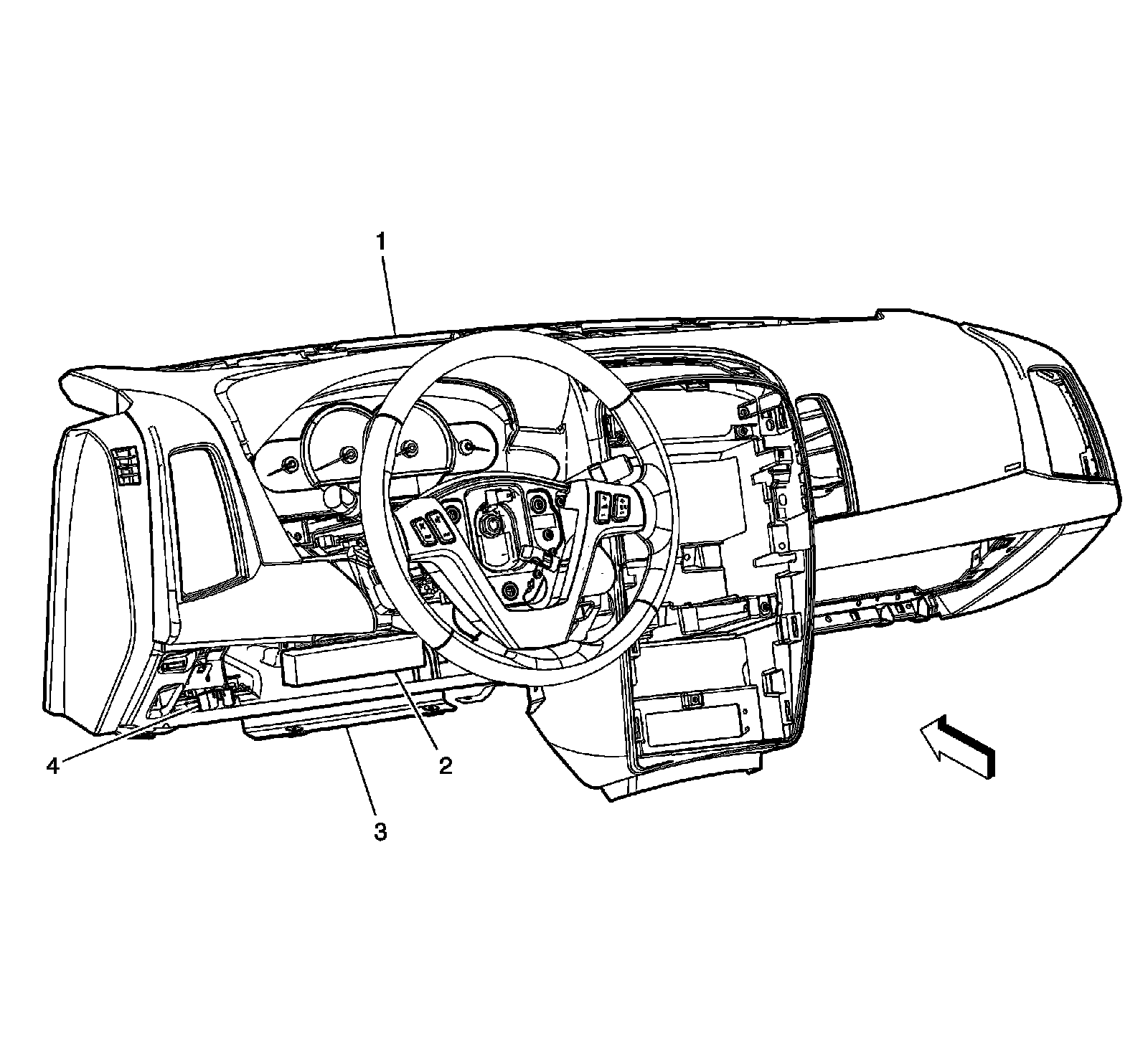

Lower Left Side of I/P
1 - Instrument Panel
2 - Body Control Module (BCM)
3 - Insulator
4 - Data Link Connector (DLC)
Data Communication Component Views (LHD)
Lower Left Side of I/P
1 - Instrument Panel
2 - Body Control Module (BCM)
3 - Insulator
4 - Data Link Connector (DLC)
