Fuel Level Sensor: Locations

Engine Controls Component Views

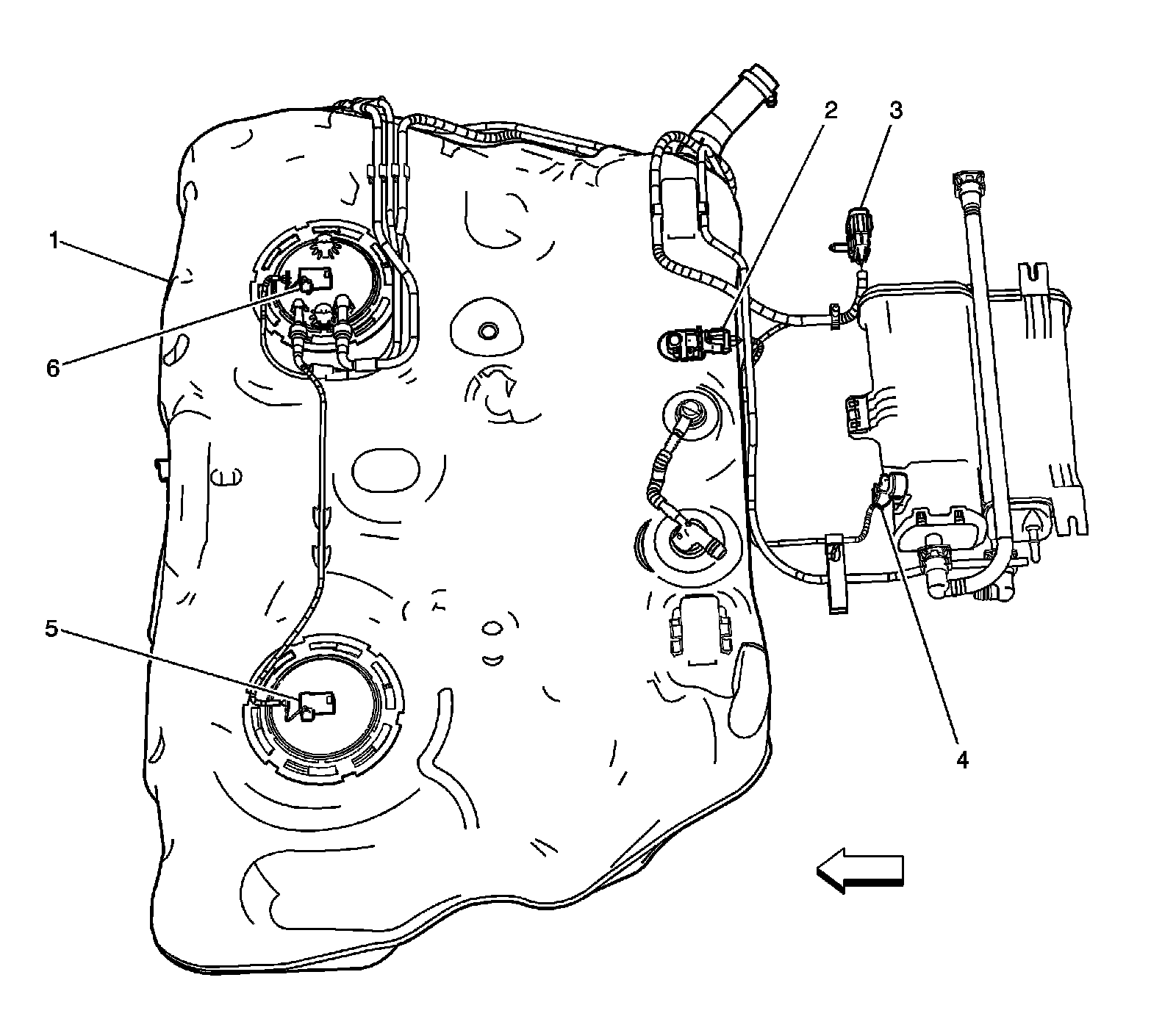

Fuel Tank and EVAP Solenoid




1 - Fuel Tank
2 - Fuel Tank Pressure (FTP) Sensor
3 - C420
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Fuel Level Sensor - Right
6 - Fuel Pump and Sender Assembly
