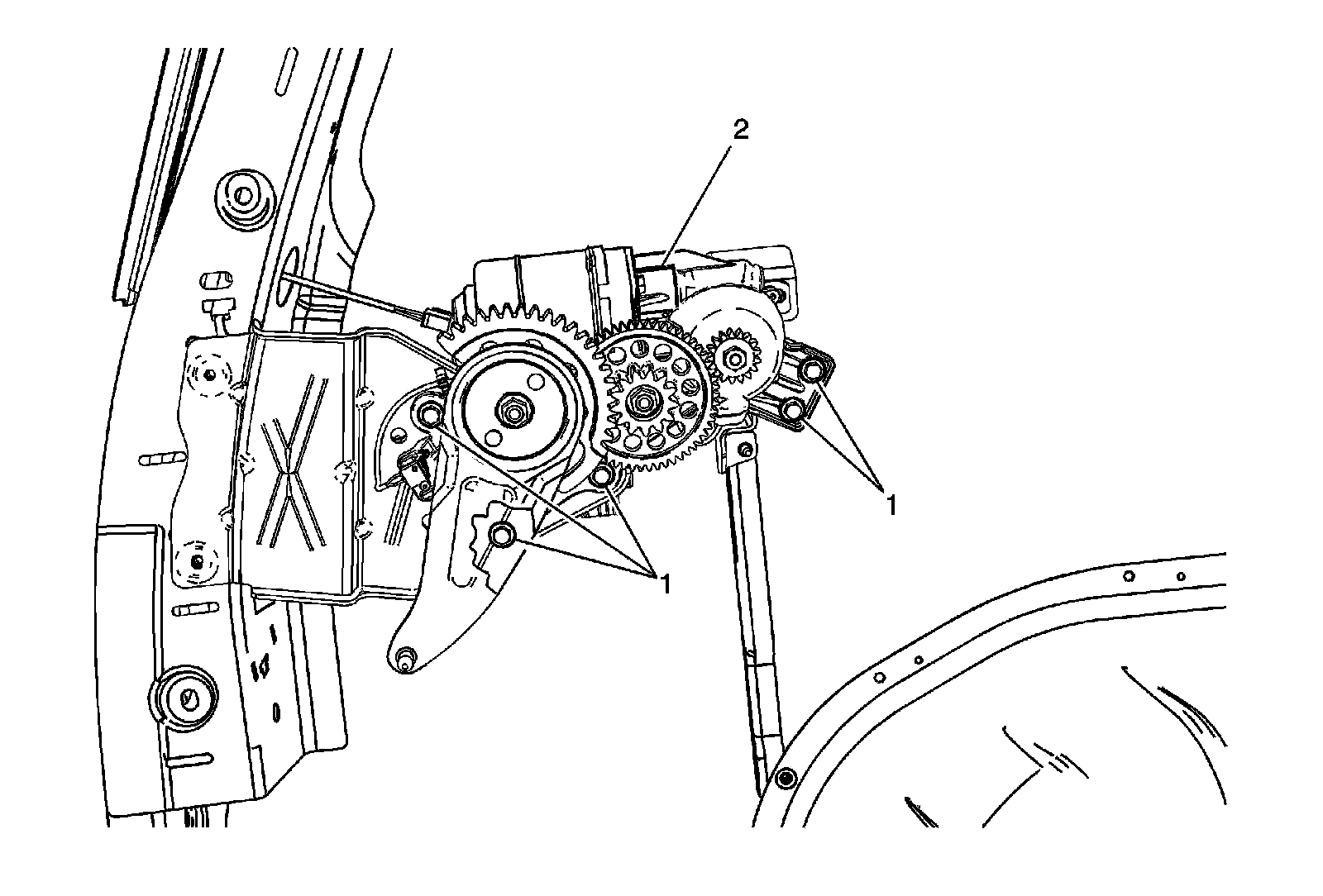

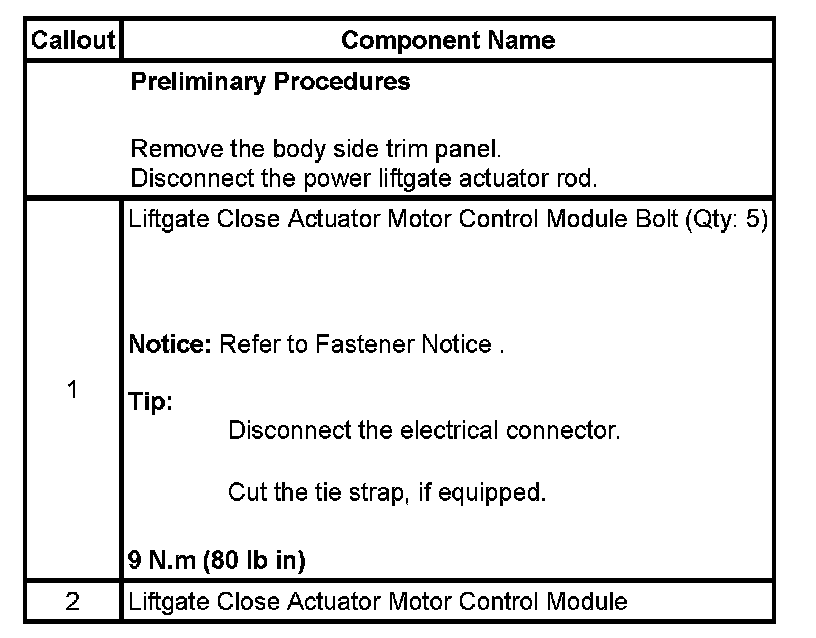

Liftgate Close Actuator Motor Control Module Replacement
Liftgate Close Actuator Motor Control Module Replacement
