Battery Current Sensor: Locations

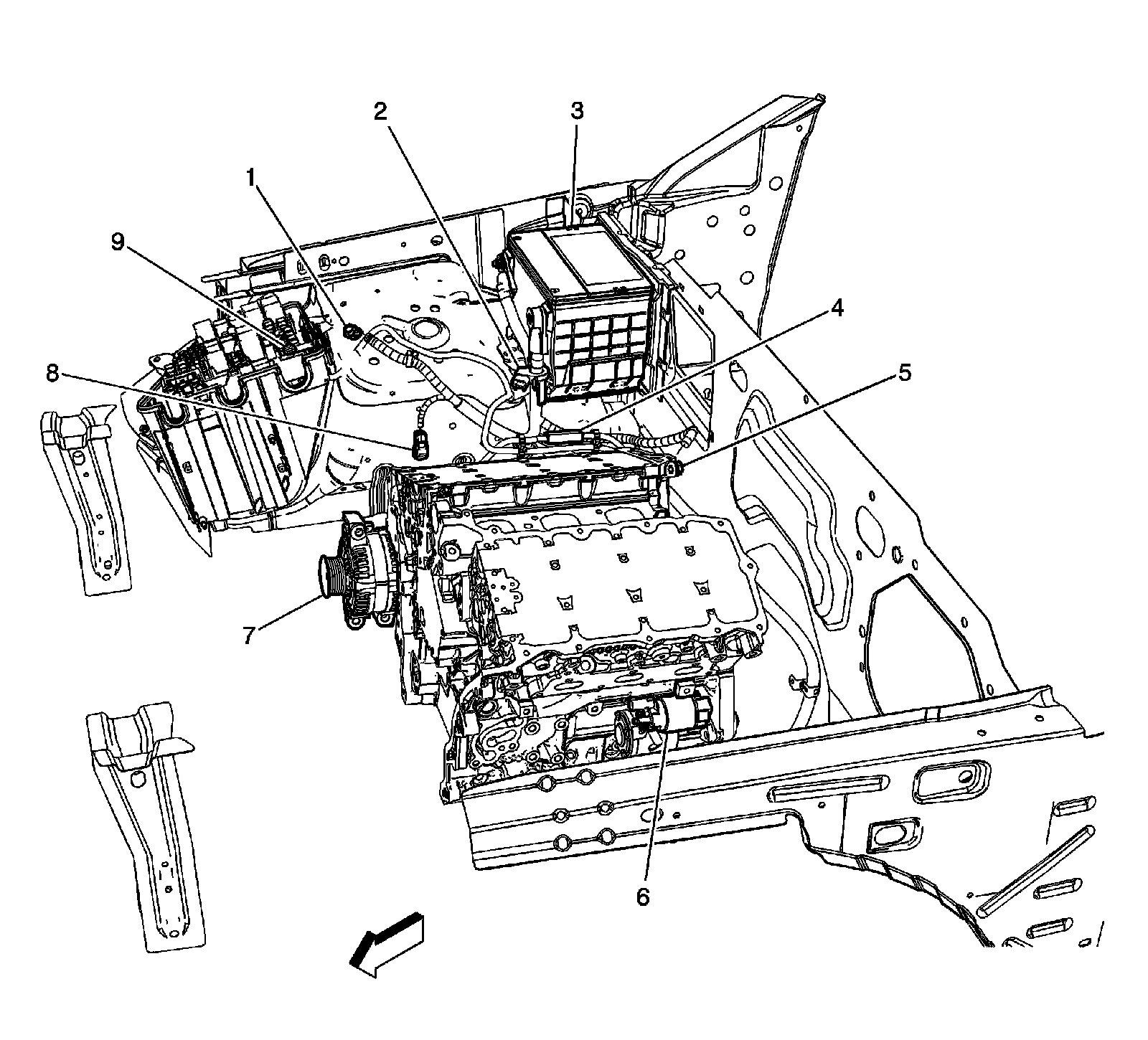

Engine Electrical Component Views (LHD)

Battery Cables (LY7)




1 - G105
2 - Battery Current Sensor
3 - Battery
4 - Mega Fuse (200A)
5 - G102
6 - Starter
7 - Generator
8 - C103
9 - Battery Positive Voltage (Stud)
