Electronic Throttle Control Module: Locations

Engine Controls Component Views

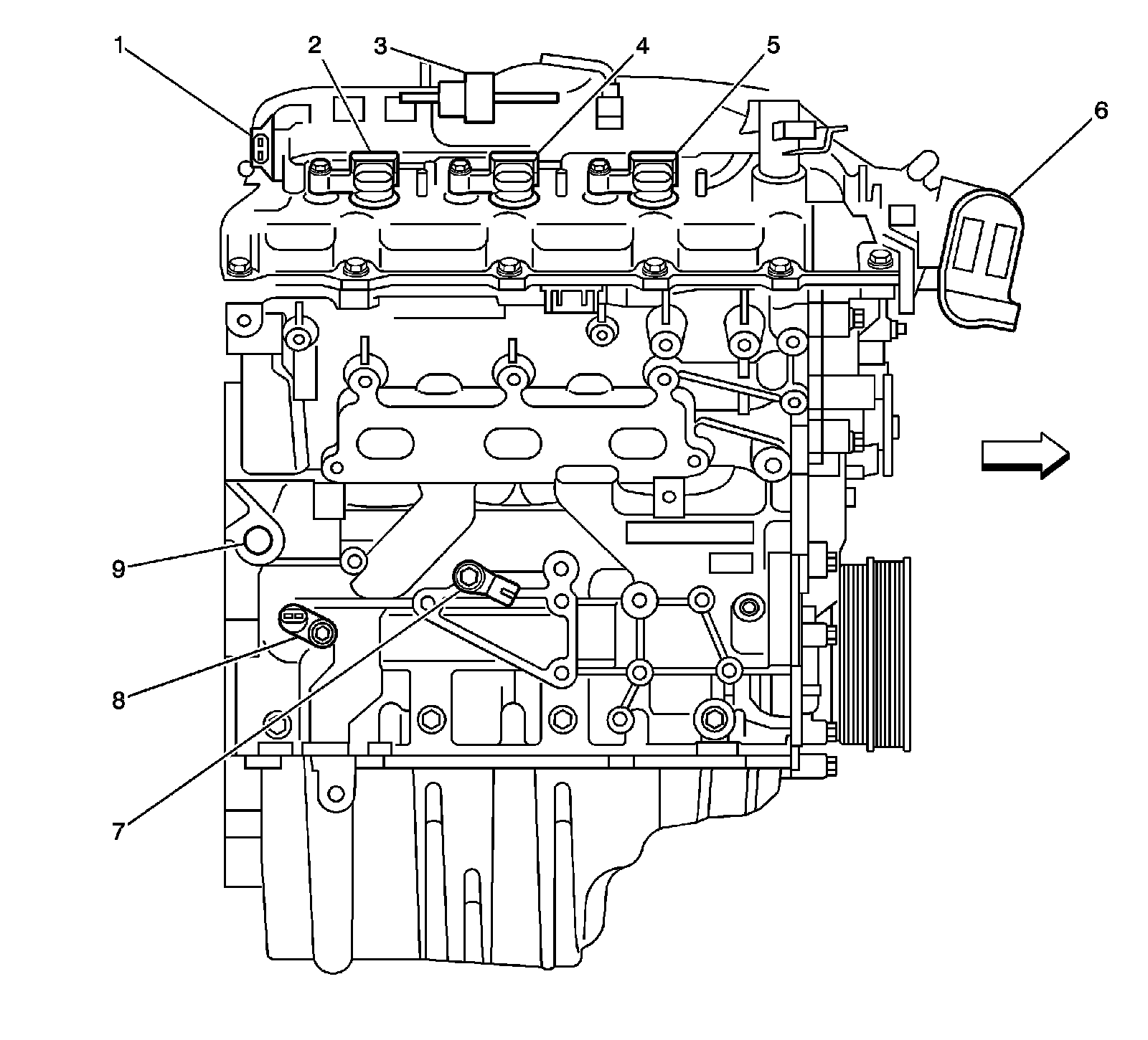

Engine Controls Components - Bank 1 (LY7)




1 - Intake Manifold Runner Control (IMRC) Solenoid
2 - Ignition Coil 5
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Ignition Coil 3
5 - Ignition Coil 1
6 - Throttle Actuator Control (TAC) Module
7 - Knock Sensor (KS) - Bank 1
8 - Crankshaft Position (CKP) Sensor
9 - Engine Block Heater Assembly

Right Front Engine Compartment - LY7




1 - Throttle Actuator Control (TAC) Module
2 - Electronic Brake Control Module (EBCM)
3 - Transmission Control Module (TCM)
4 - Engine Control Module (ECM)
