Dimmer Switch



Displays and Gages Connector End Views

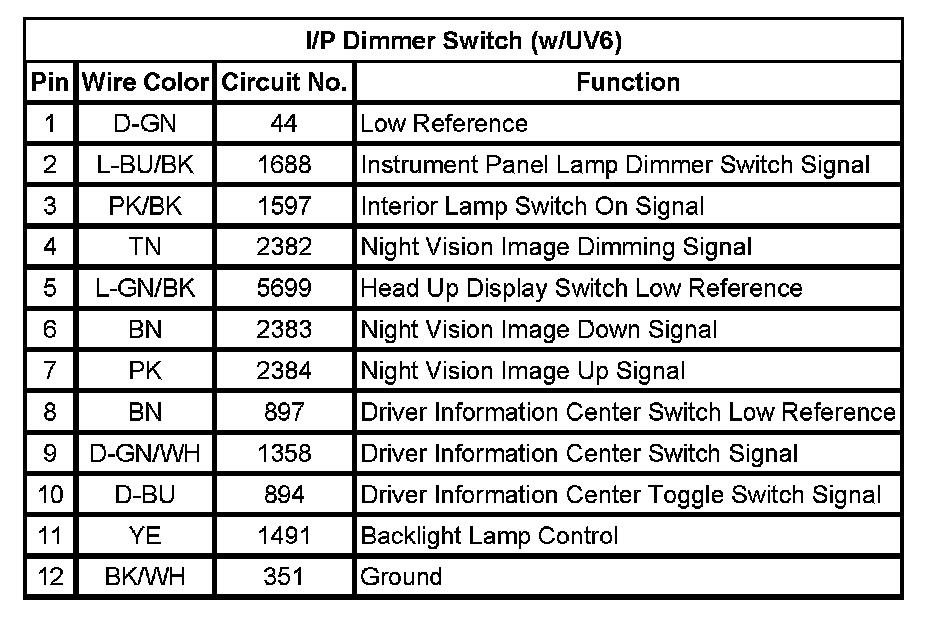

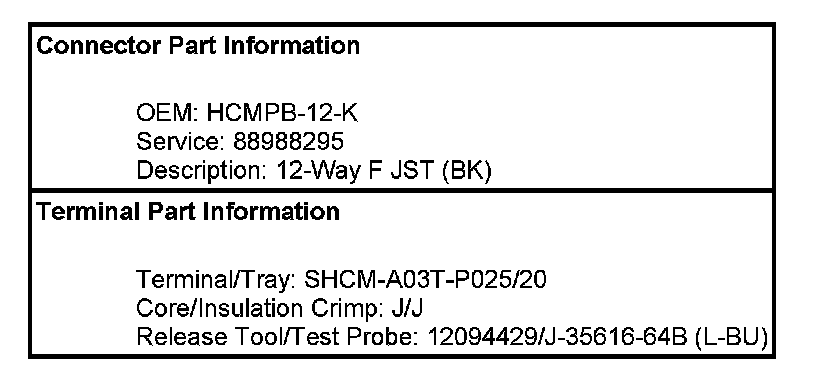

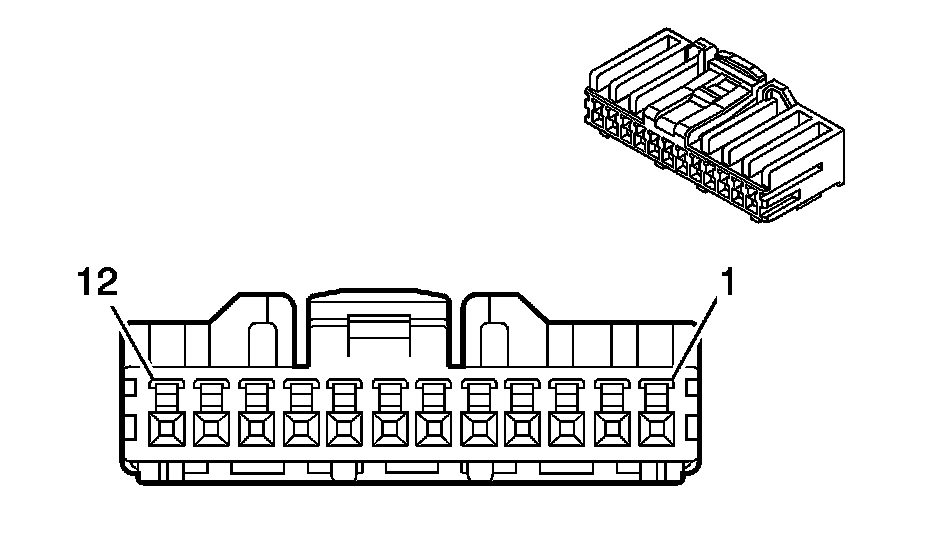

I/P Dimmer Switch (w/UV6)

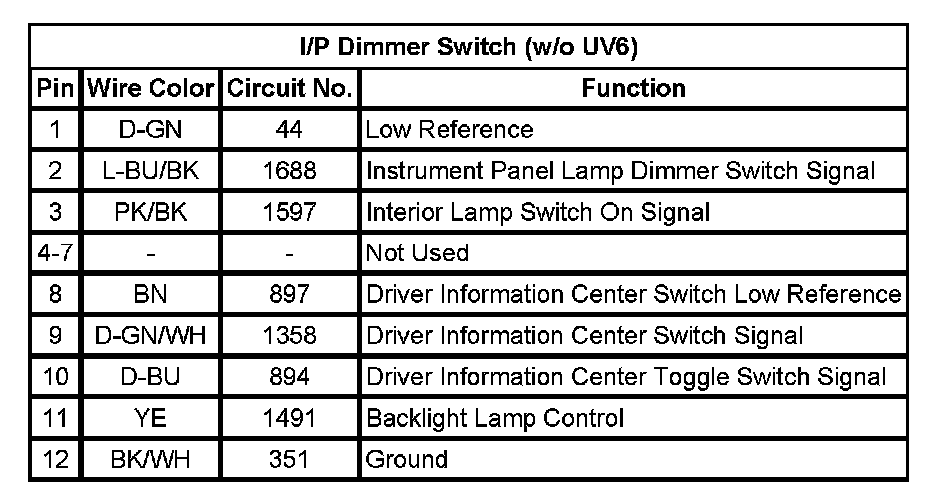

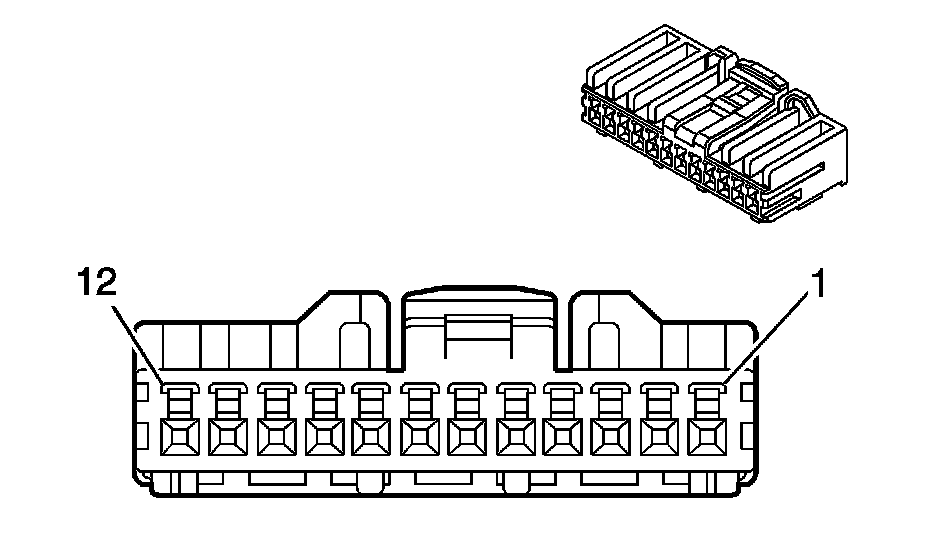

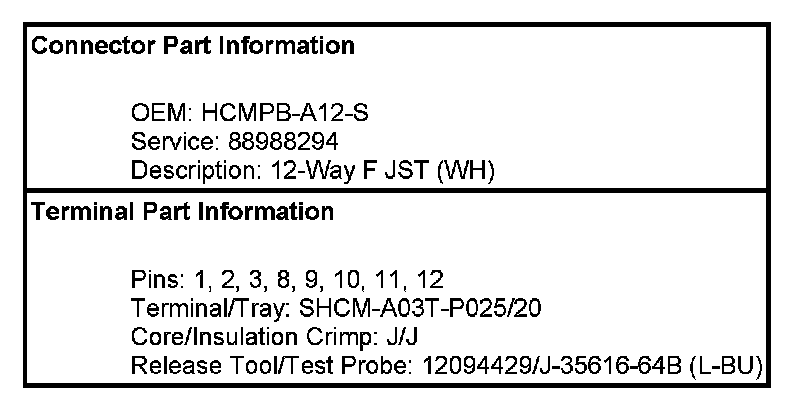

I/P Dimmer Switch (w/o UV6)
