Right Rear Door Module (RRDM)
Vehicle Access Connector End Views
Right Rear
Door Module

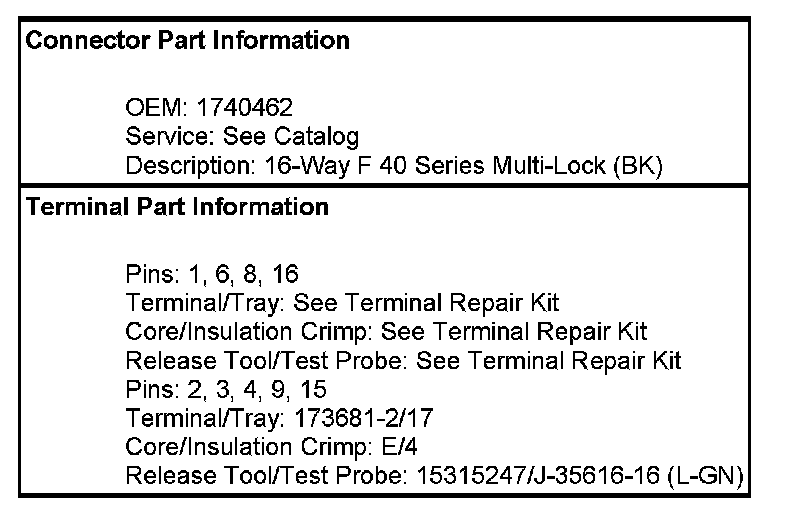

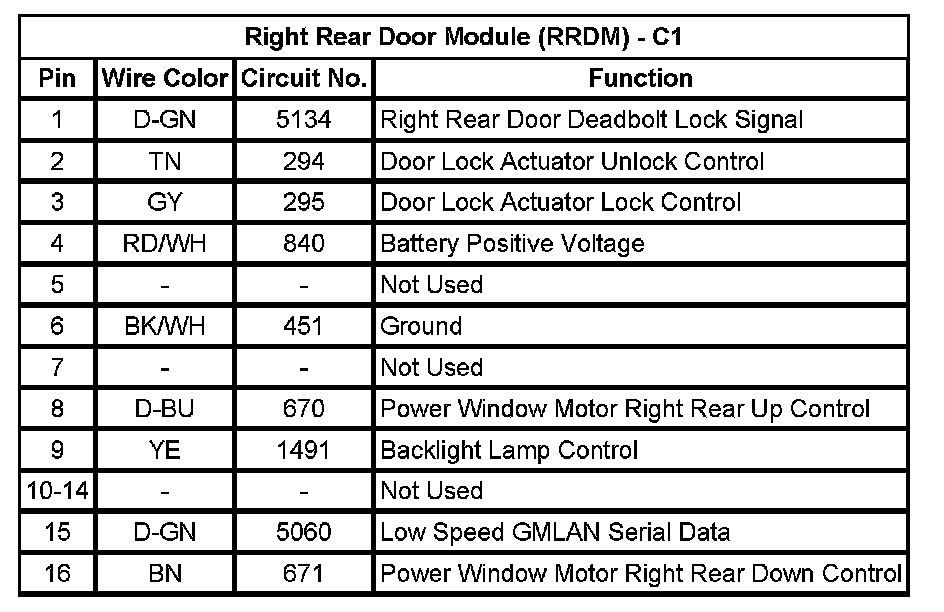

(RRDM) - C1
Right Rear
Door Module

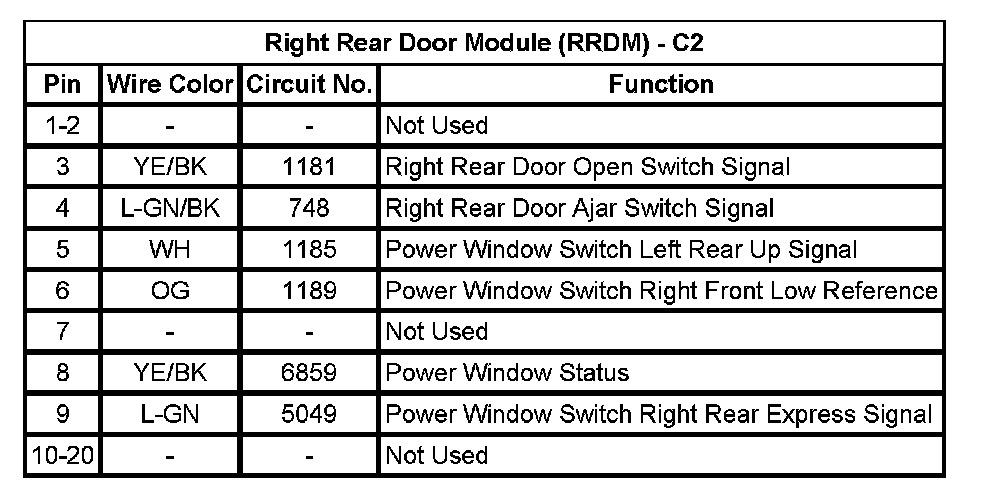

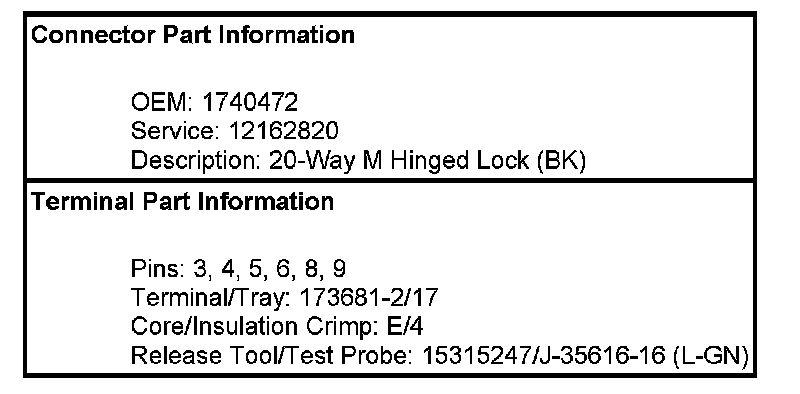

(RRDM) - C2
