Right Rear Fuse Block



Electrical Center Identification Views

Fuse Block - Right Rear Top View






Fuse Block - Right Rear Bottom View

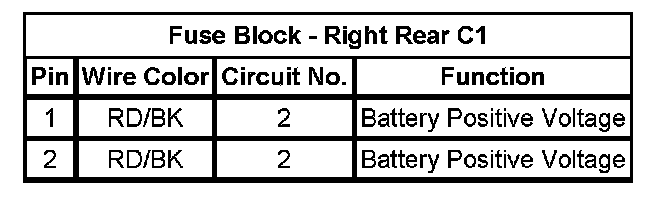

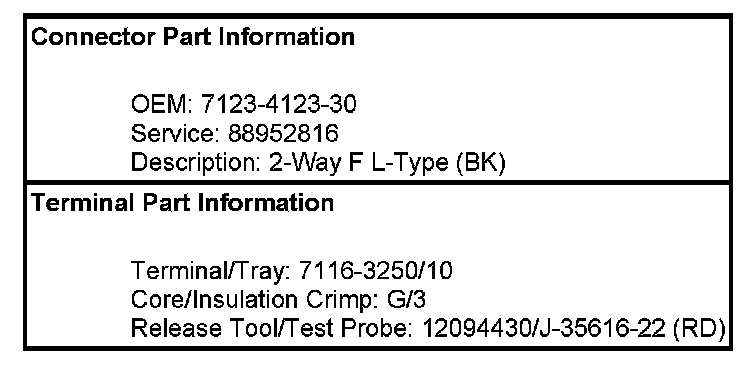

Fuse Block - Right Rear C1
