Telescoping Wheel Position Sensor



Steering Wheel and Column Connector End Views

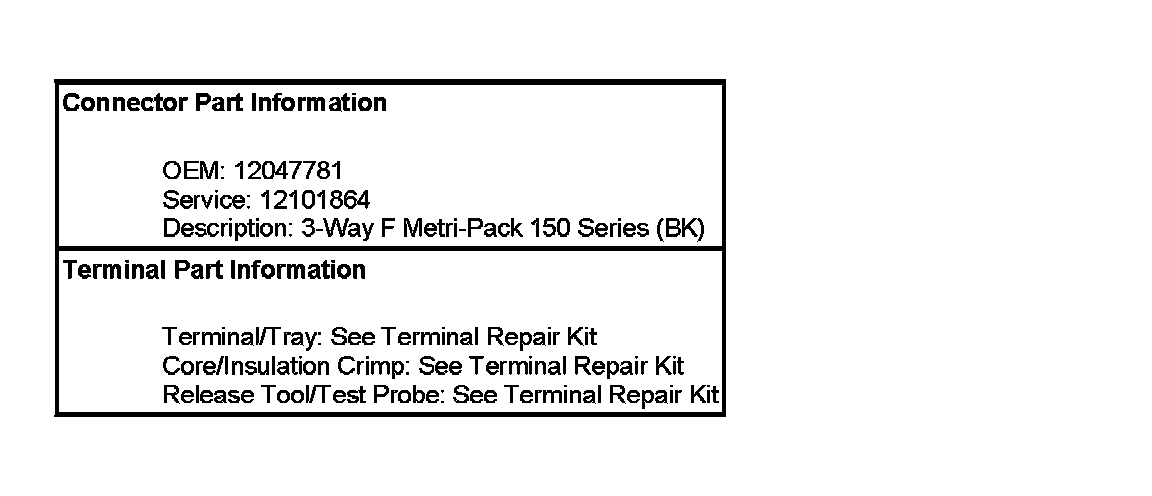

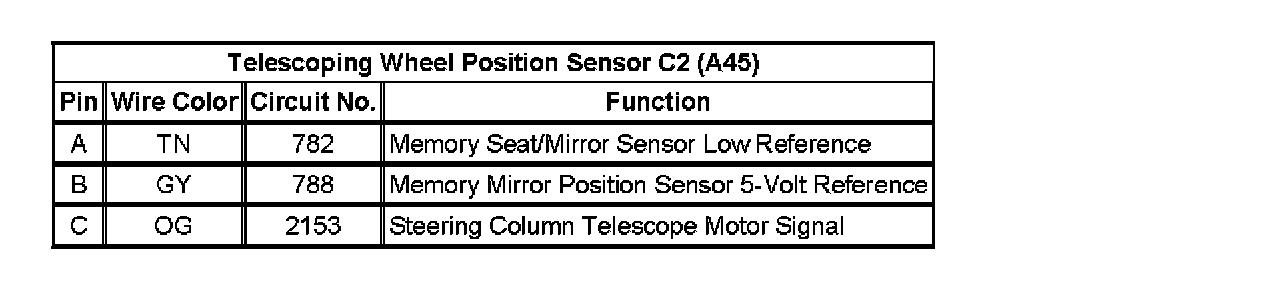

Telescoping Wheel Position Sensor C2 (A45):

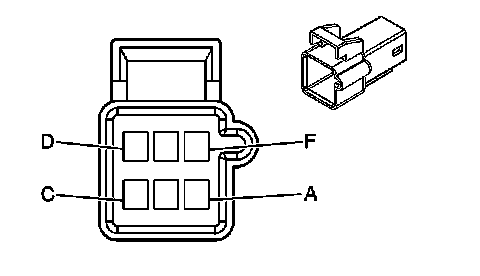

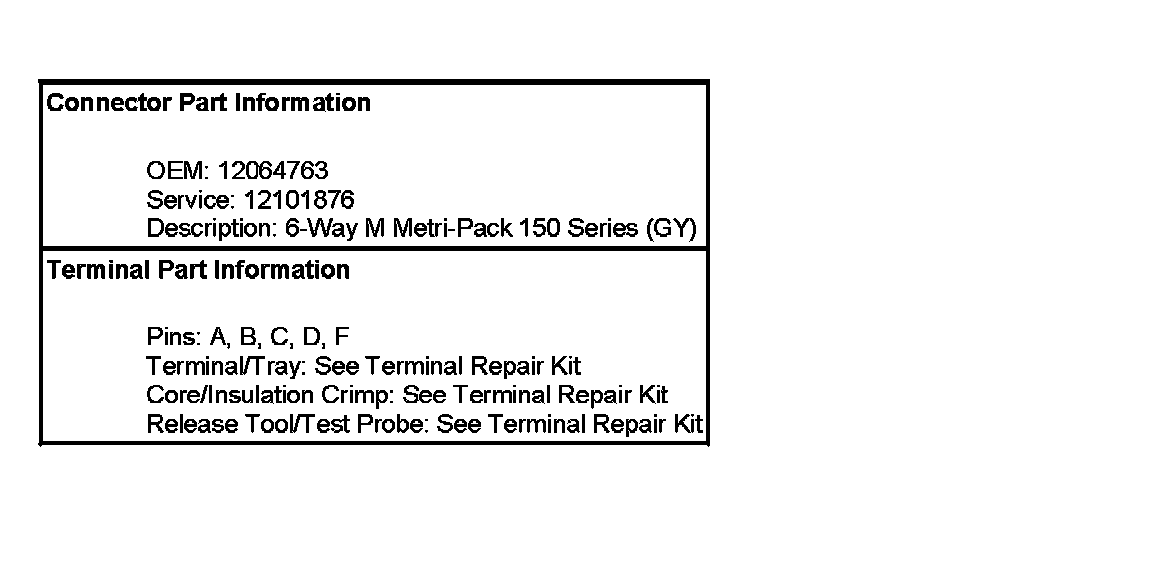

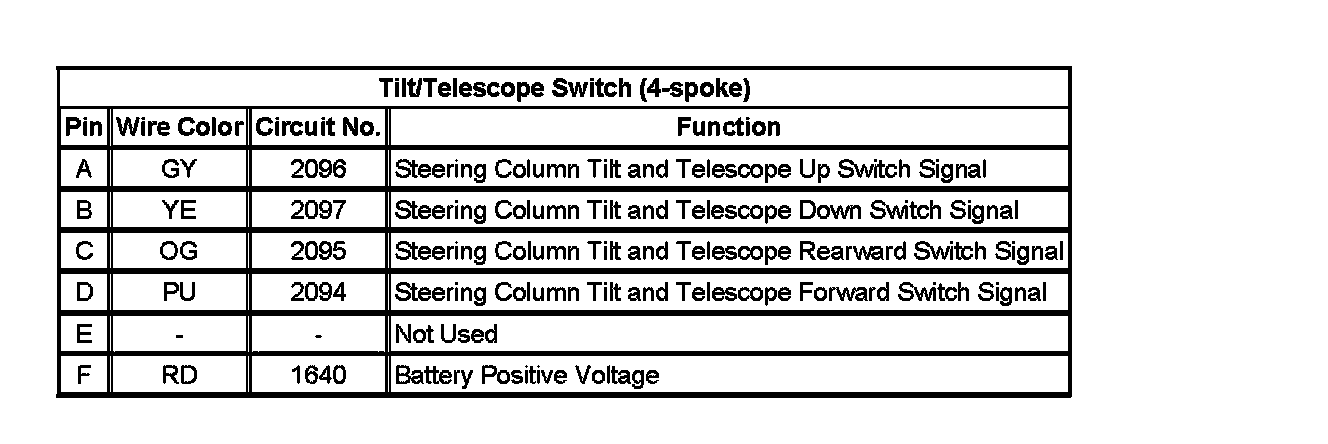

Tilt/Telescope Switch (4-spoke):

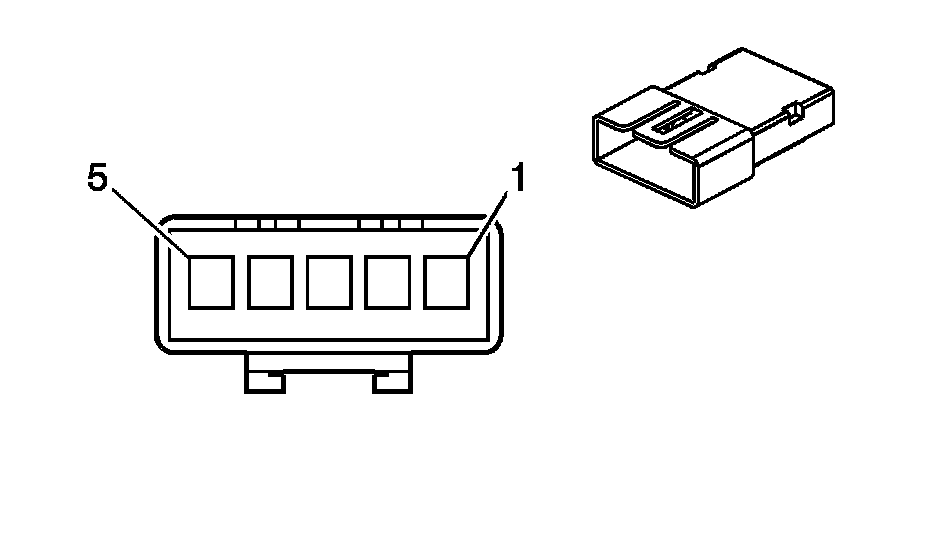

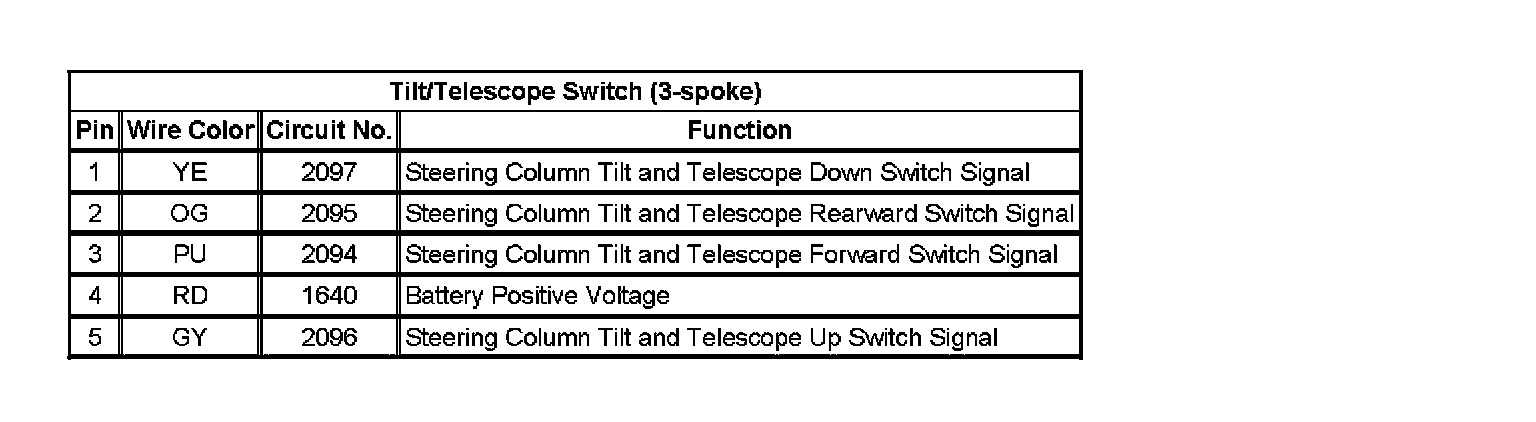

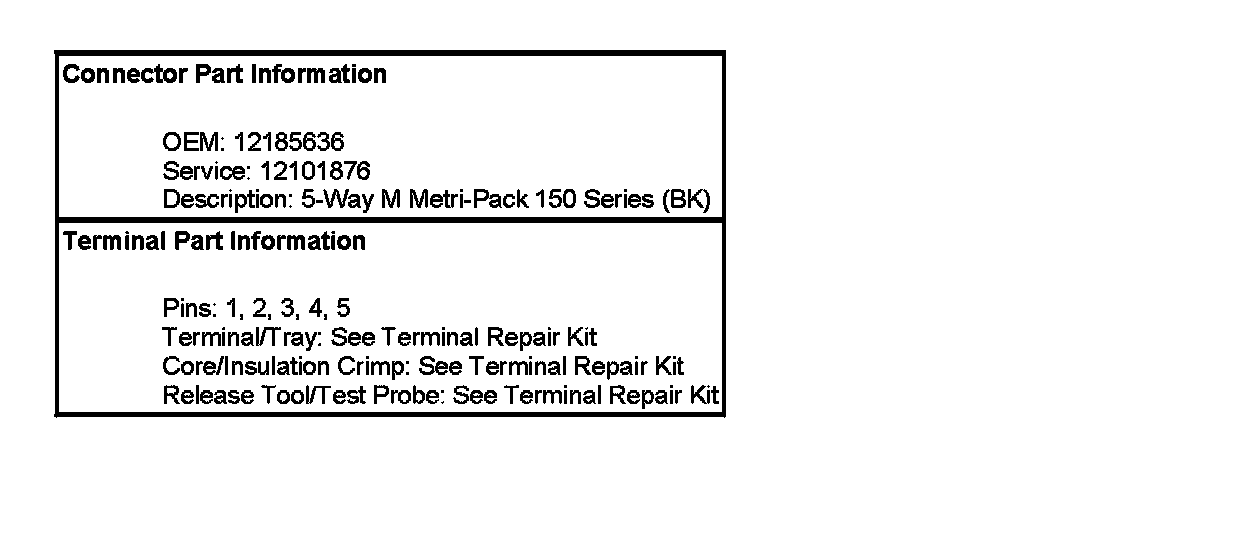

Tilt/Telescope Switch (3-spoke):
