G110



Power and Grounding Component Views

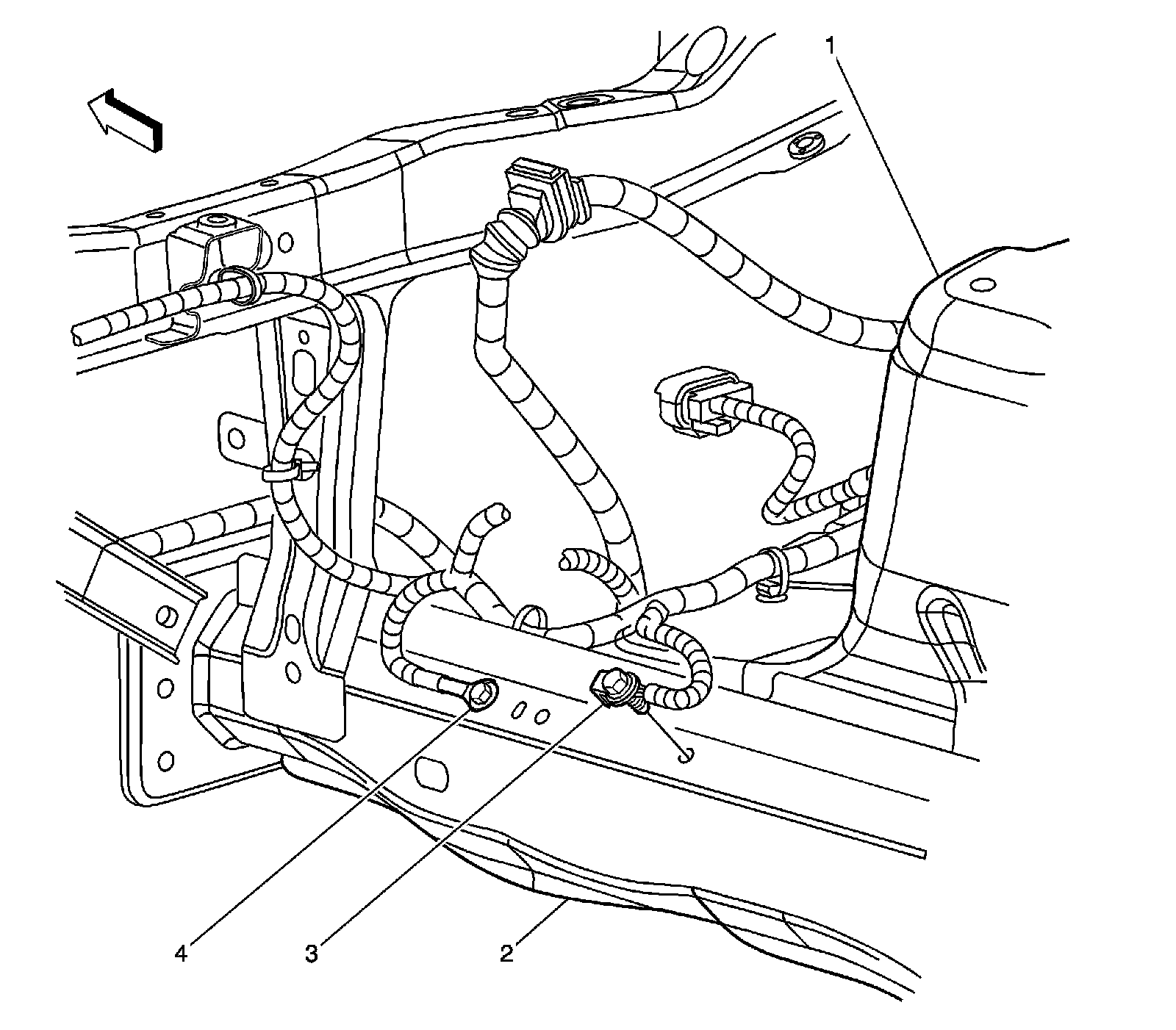

G104 and G110




1 - RF Strut Tower
2 - RF Frame Rail
3 - G110
4 - G104
