Battery Tray: Service and Repair

Battery Tray Replacement

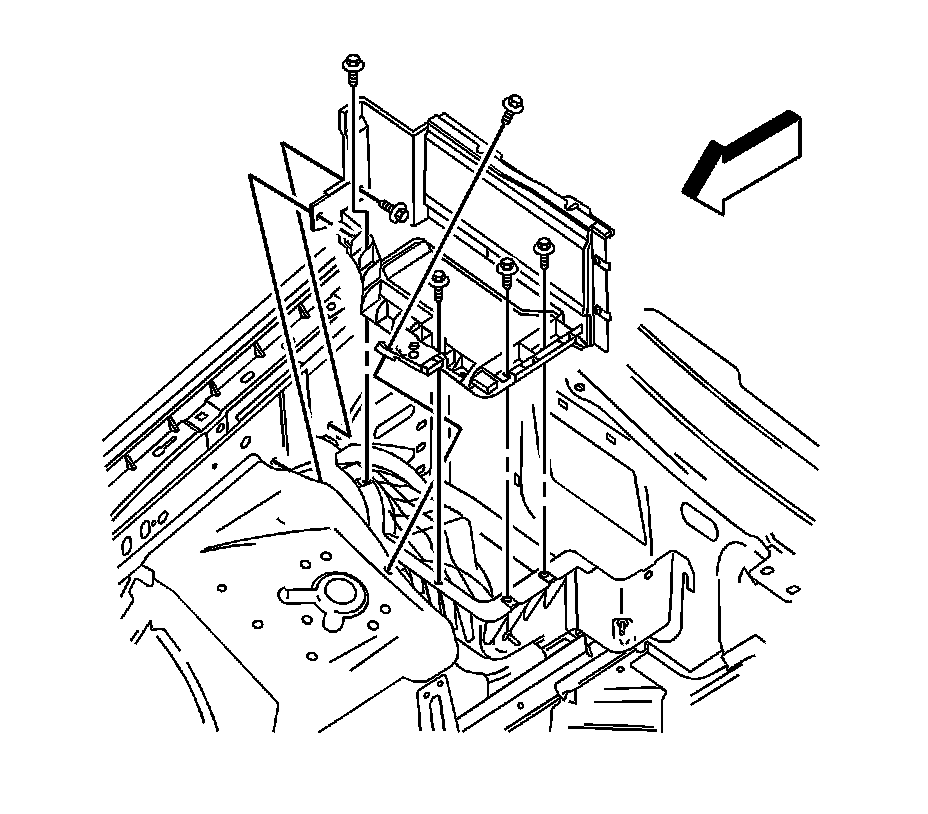

Removal Procedure




1. Remove the battery from the vehicle.




2. Remove the bolts from the battery tray.
3. Remove the battery tray from the vehicle.

Installation Procedure




1. Install the battery tray into the vehicle.

Notice: Refer to Fastener Notice.

2. Install the battery tray bolts.

Tighten the battery tray bolts to 6 N.m (53 lb in).




3. Install the battery into the vehicle.
