Combination Switch



Lighting Systems Connector End Views

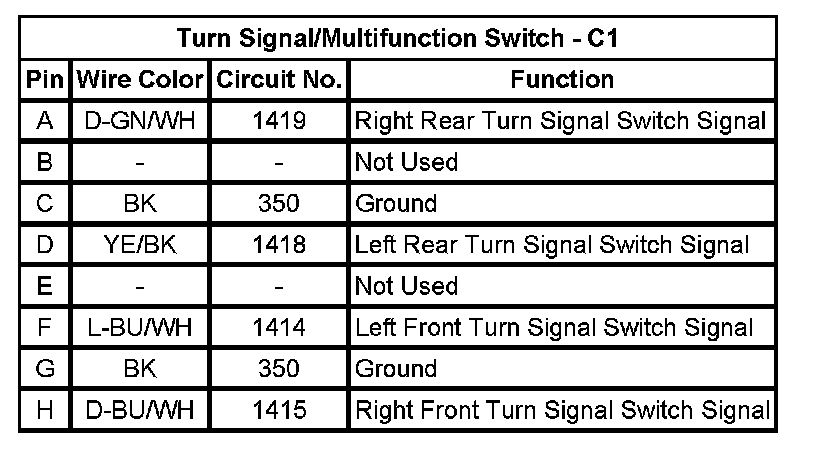

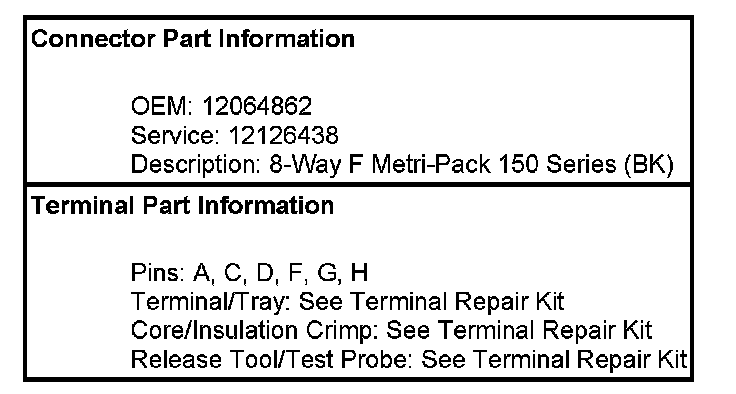

Turn Signal/Multifunction Switch - C1














Turn Signal/Multifunction Switch - C2

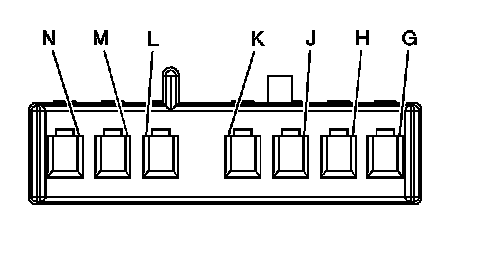

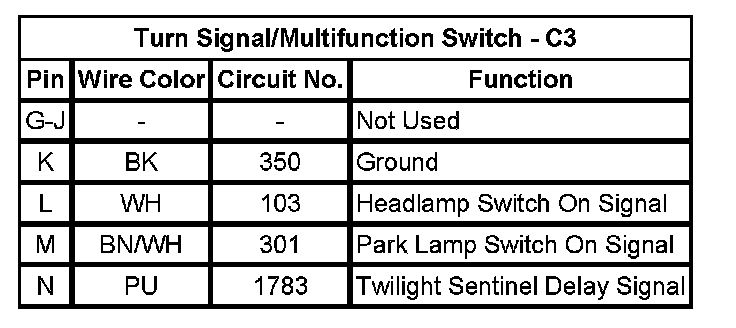

Turn Signal/Multifunction Switch - C3

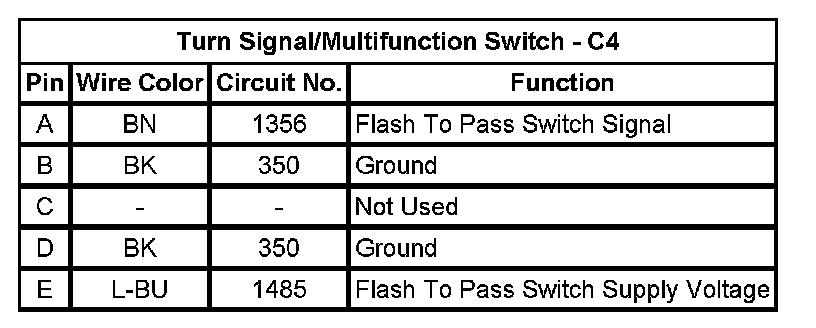

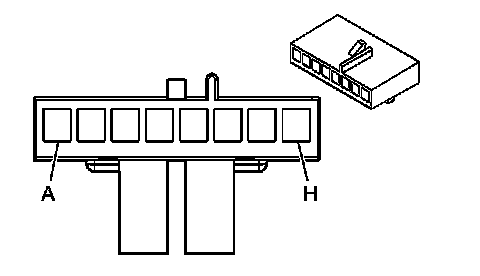

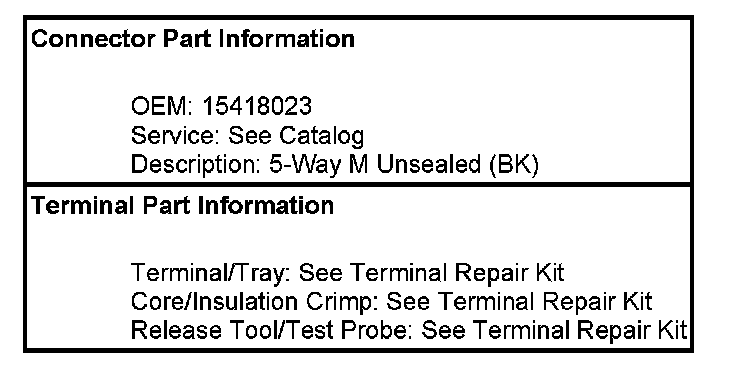

Turn Signal/Multifunction Switch - C4
