Tire Pressure Module

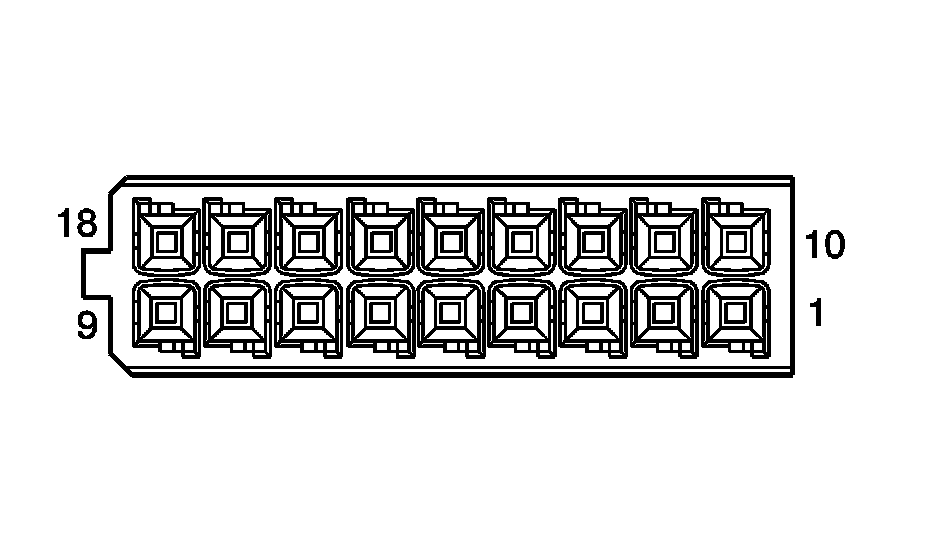

Tire Pressure Monitoring System Connector End Views

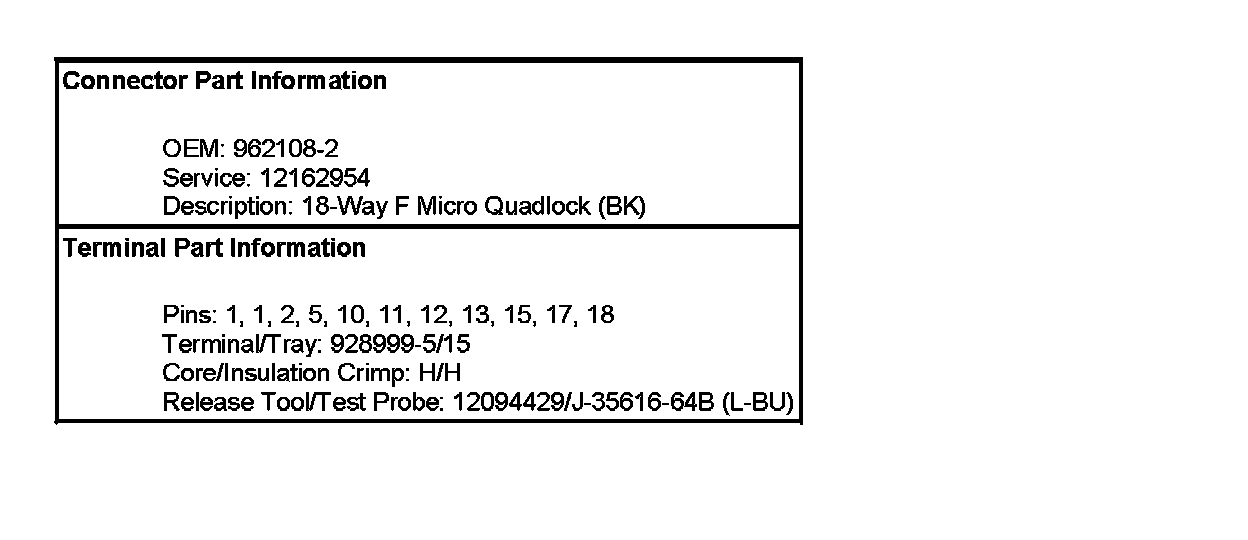

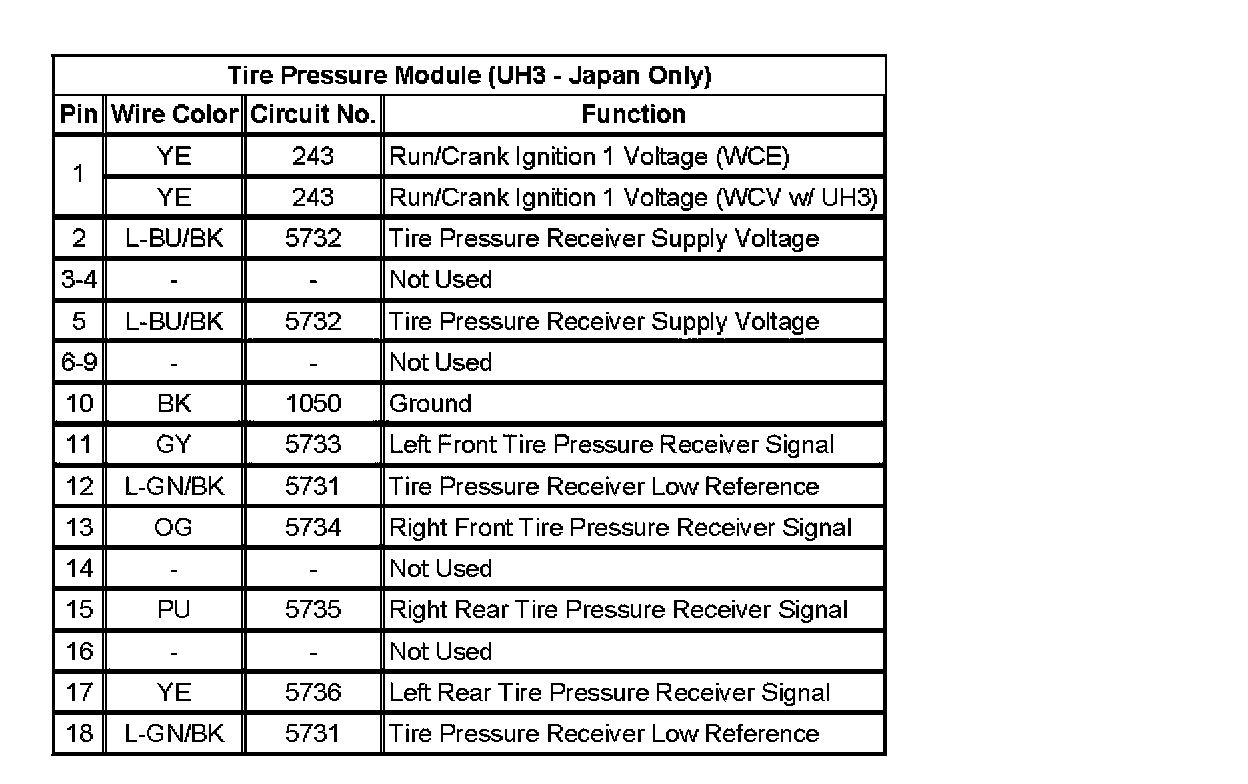

Tire Pressure Module (UH3 - Japan Only):
