Connector Views



Engine Controls Connector End Views

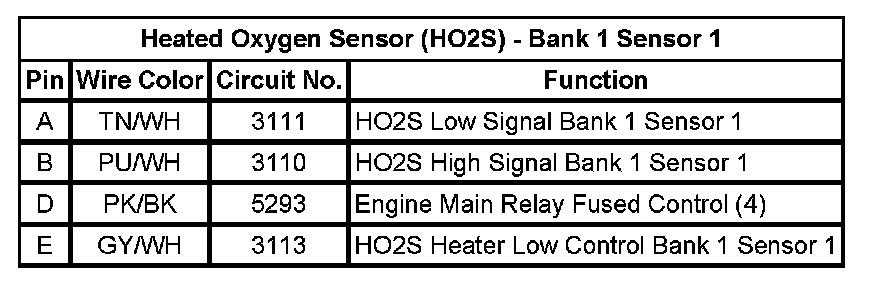

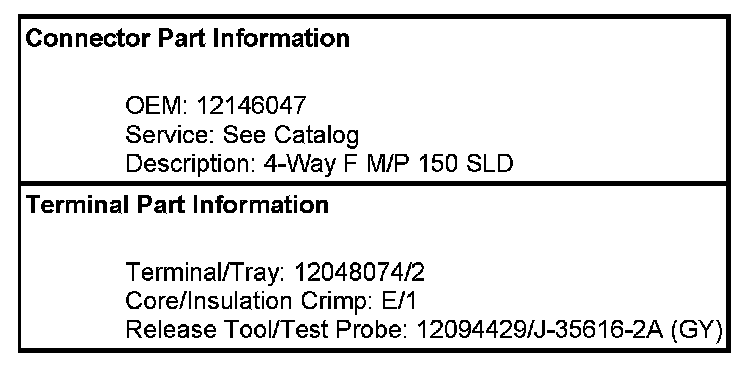

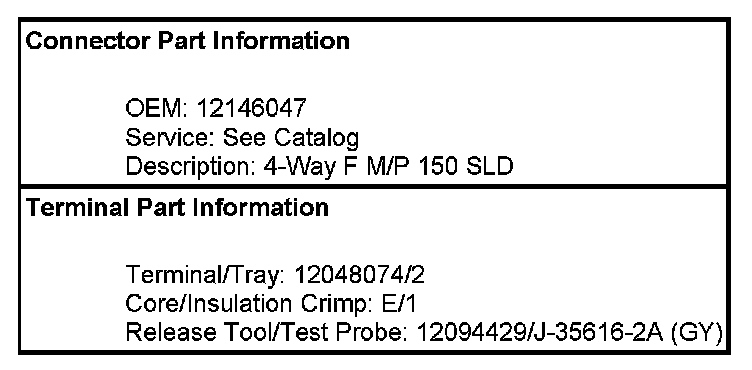

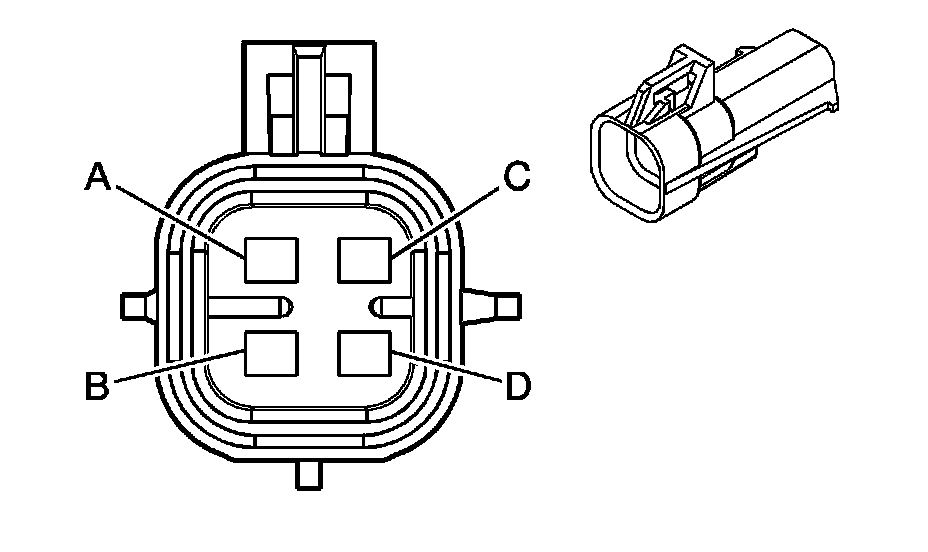

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1

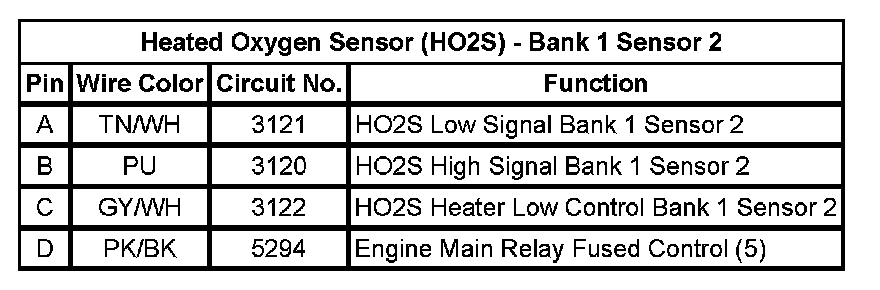

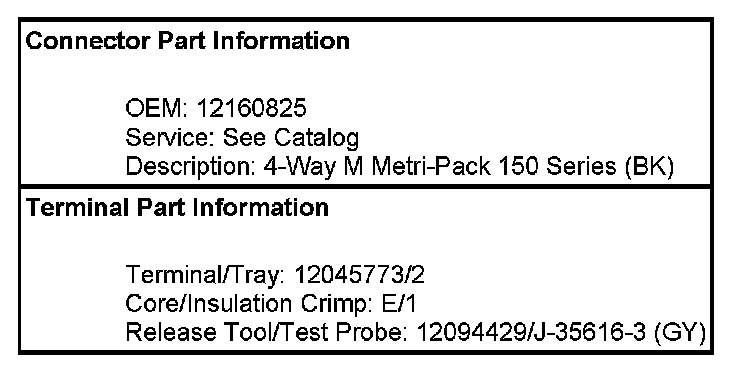

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2

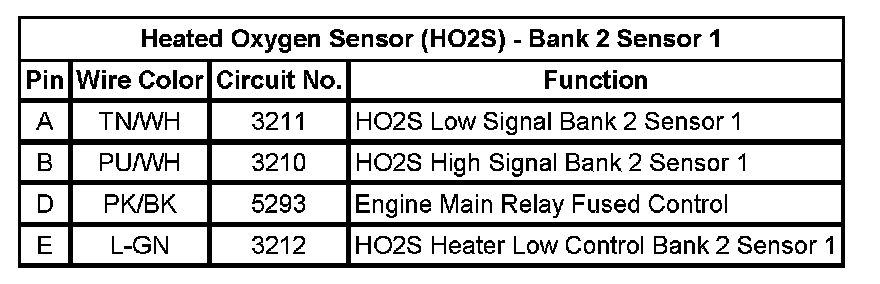

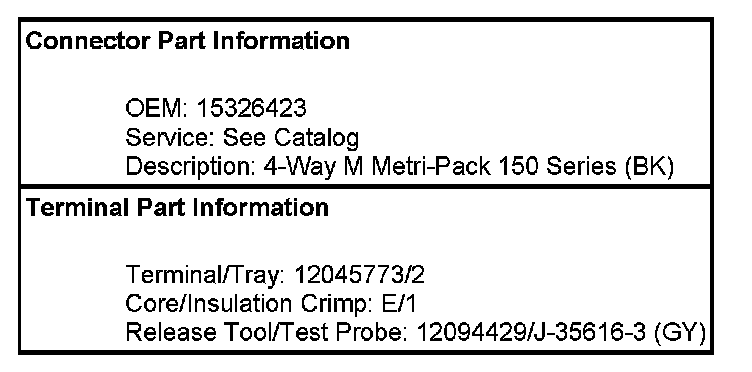

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1

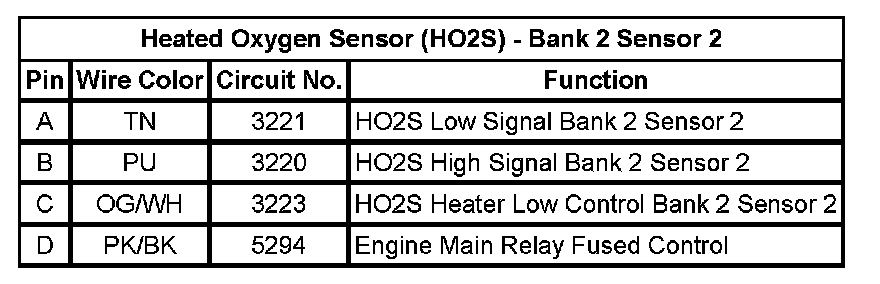

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
